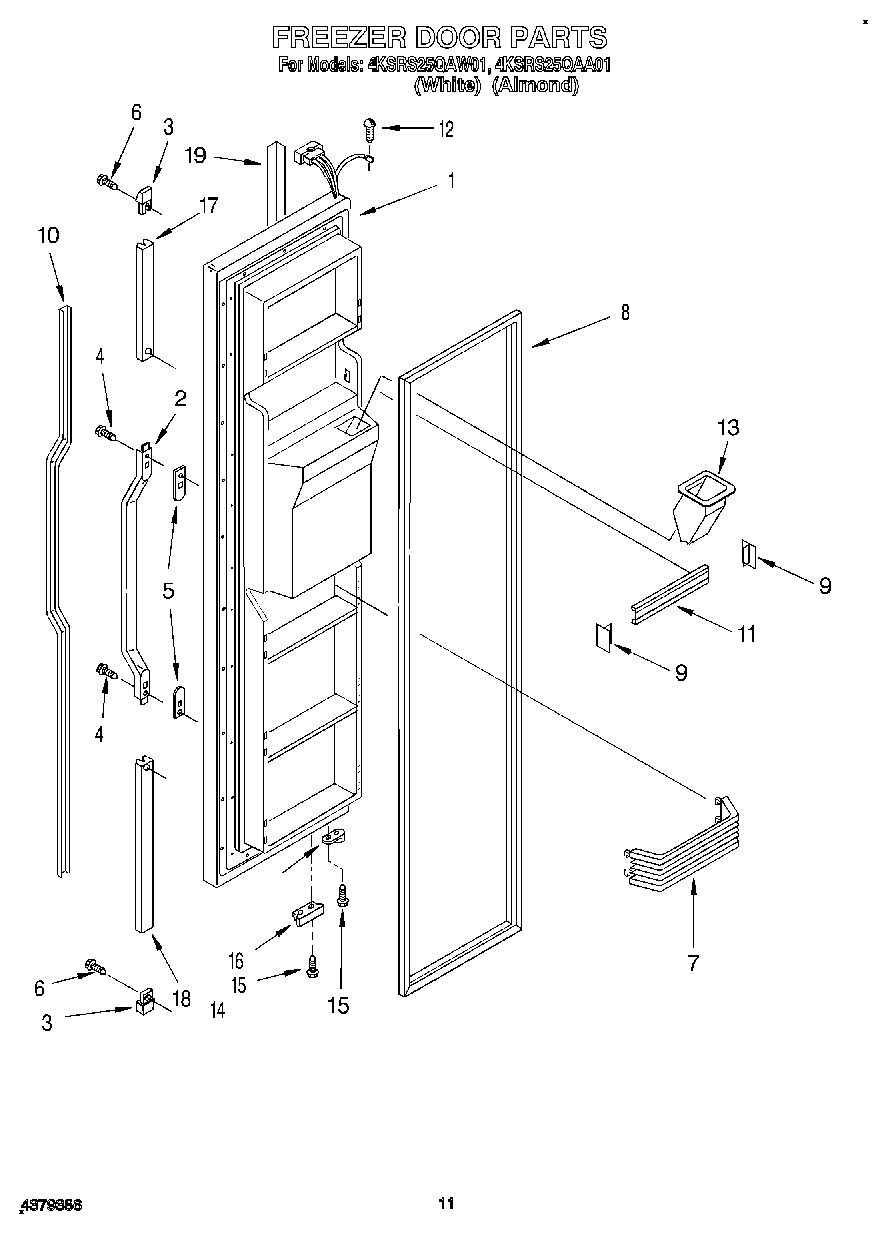

4KSRS25QAA01 07 – FREEZER DOOR

4KSRS25QAA01 07 – FREEZER DOOR

Written by

in

4KSRS25QAA01 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Almond)
1Freezer Door (Includes No.8 And Dispenser Front Parts)
2Handle
3End Cap (2)
4WP488729 Whirlpool Refrigerator Door Screw
5Spacer, Handle
6Screw
7Shelf Bin (4)
82159074 Whirlpool Door Gasket Seal
9WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
10Insert, Handle (Almond)
10Insert, Handle
11Trim, Door Shelf
12WP488234 Whirlpool Air Conditioner Screw
13Chute, Ice
144318165 Whirlpool Refrigerator Door Closure Cam Kit
15WP999367 Whirlpool Refrigerator Screw
16Bracket, Door Stop
17Retainer, Insert
18Retainer, Insert
19Trim, Door
