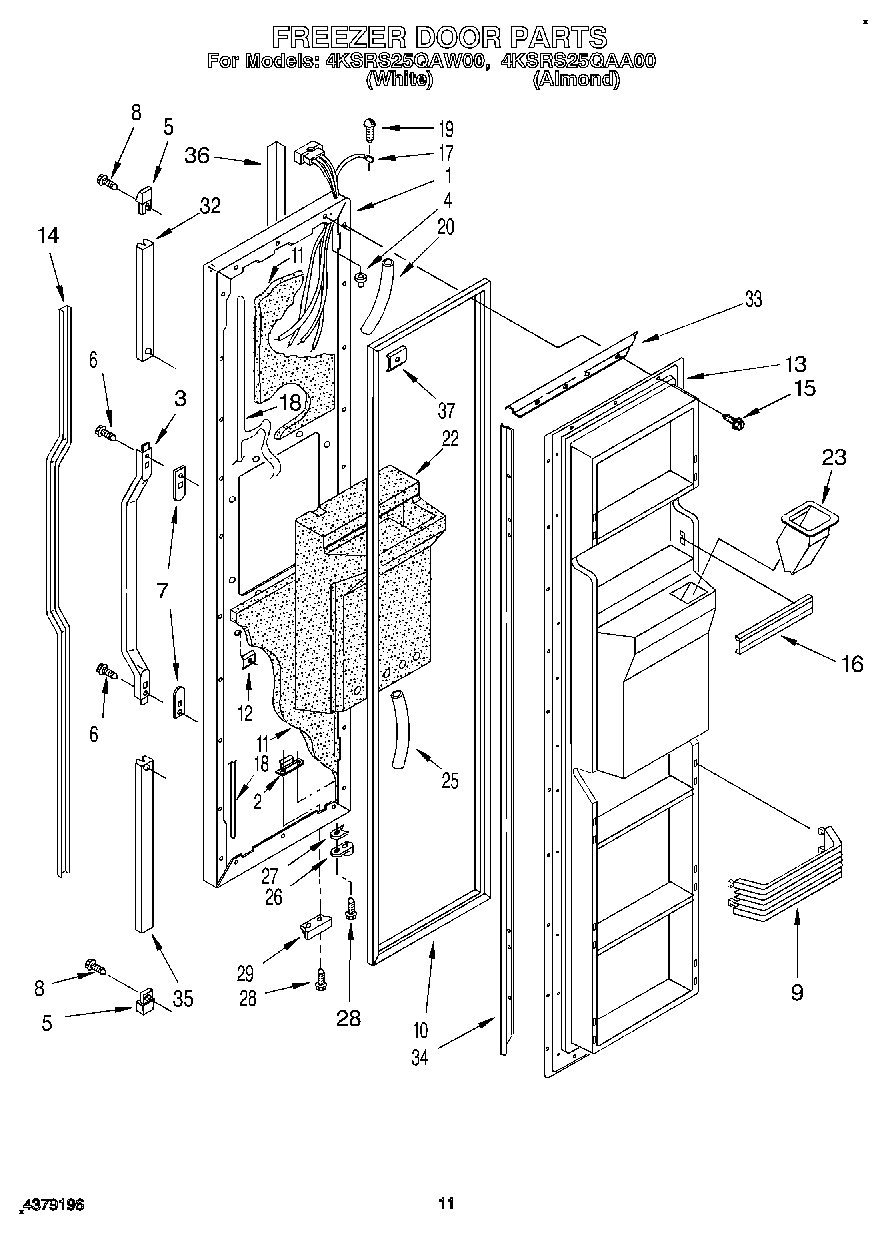

4KSRS25QAW00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (Also Order Item 11) (Almond)
1	Freezer, Door Panel (Also Order Item 11)
2	Tap Plate
3	Handle
4	Seal, Hinge Pin
5	End Cap (2)
6	WP488729 Whirlpool Refrigerator Door Screw
7	Spacer, Handle
8	Screw
9	Shelf Bin (4)
10	Door Gasket, Magnetic
11	WPL 876029
12	Screw Anchor (2)
13	Panel, Interior Door
14	Insert, Handle
14	Insert, Handle (Almond)
16	Trim, Door Shelf
17	Harness, Door
18	Heater, Door
19	WP488234 Whirlpool Air Conditioner Screw
20	Tube, Door Wiring
22	Insulation, Dispenser
23	Chute, Ice
25	Tube, Door Wiring
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
27	WP1104787 Whirlpool Refrigerator Shim
28	WP489069 Whirlpool Compactor Screw
29	Bracket, Door Stop
32	Retainer, Insert
33	Gasket Retainer, Top & Bottom
34	Gasket Retainer, Side (2)
35	Retainer, Insert
36	Trim, Door
37	WP939101 Whirlpool Refrigerator Plate
