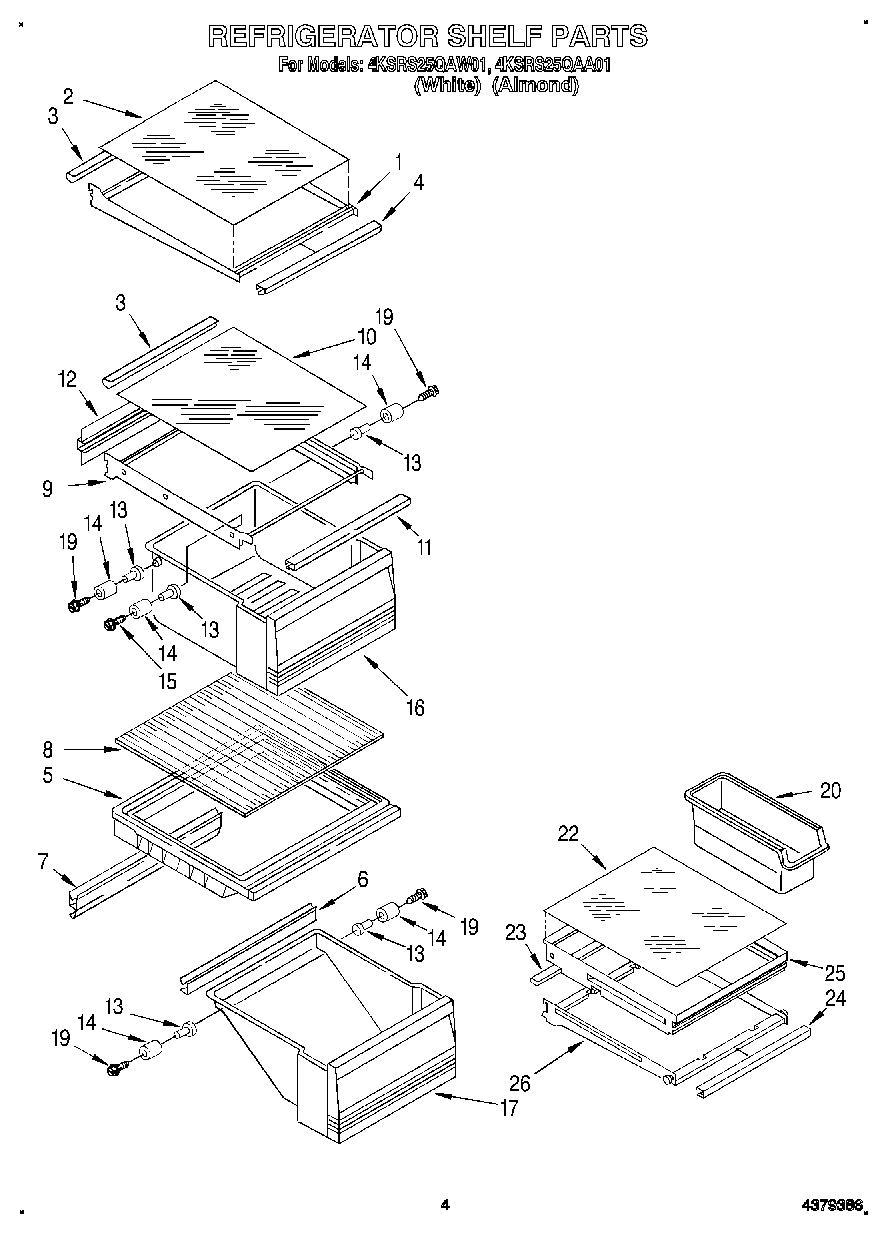

4KSRS25QAW01 03 – REFRIGERATOR SHELF

Products

Position	Product
1	Shelf Assembly, Cantilever (2)
2	Glass, Shelf
3	Retainer
4	Gasket, Front
5	WP2161491 Whirlpool Crisper Drawer Cover
6	WP1125528 Whirlpool Refrigerator Gasket
7	Gasket, Cover (Rear)
8	Glass, Cover (2)
9	Pan Shelf & Slide (Includes 13, 14, & 15) Assembly
10	Glass, Shelf
11	Gasket (Front)
12	Gasket (Rear)
13	Eyelet, Roller
14	Roller
15	WP489261 Whirlpool Refrigerator Screw
16	Crisper Pan (2)
17	Utility Pan
20	WP982704 Whirlpool Refrigerator Container
22	Glass, Shelf
23	Reflector
24	Gasket, Front
25	Frame & Roller
26	Frame And Roller Asm. (Cantilever)
