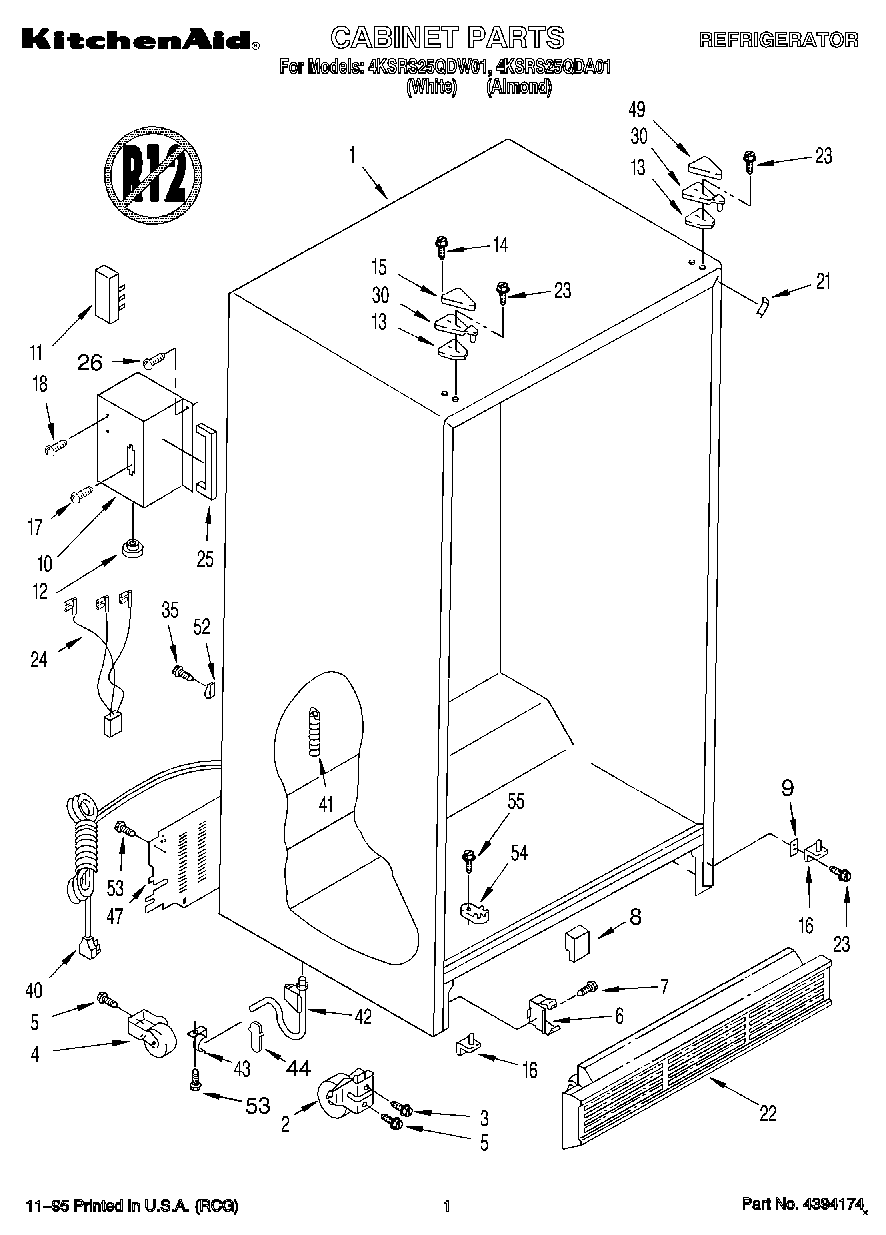

4KSRS25QDA01 01 – CABINETadmin2025-04-26T13:06:21+00:004KSRS25QDA01 01 – CABINET ProductsPositionProduct1Cabinet (Not A Serviceable Part)2Front Roller (2)3W10850698 Whirlpool Refrigerator Screw4WPW10250570 Whirlpool Refrigerator Cabinet Roller5WP489427 Whirlpool Refrigerator Screw6WP2155013 Whirlpool Refrigerator Clip7WP489478 Whirlpool Refrigerator Screw8Insert, Air Baffle9WP2181911 Whirlpool Refrigerator Shim10Enclosure, Term.11Terminal Block12Bushing13Shim, Hinge Top14Screw15WP1129262 Whirlpool Refrigerator Cover168201707 Whirlpool Door Hinge17WPW10272364 Whirlpool Refrigerator Screw18Screw21Filler, Wrapper (White)21Filler, Wrapper (Almond)22Grille (Almond)22Grille (White)23WP999367 Whirlpool Refrigerator Screw24Wiring Assembly, Terminal Block25Gasket26WP489463 Whirlpool Refrigerator Screw30WP2196046 Whirlpool Refrigerator Door Hinge35WP489464 Whirlpool Refrigerator Screw40Service Cord41W11566763 Whirlpool Fitting42Tube, Extension43WP1108439 Whirlpool Refrigerator Clip44Flappper, Drain Extension47Cover, Unit491119787 Whirlpool Refrigerator Hinge Cover52489348 Whirlpool Refrigerator Tube Clamp54WPW10329686 Whirlpool Door Cam Black55WP489483 Whirlpool Screw
