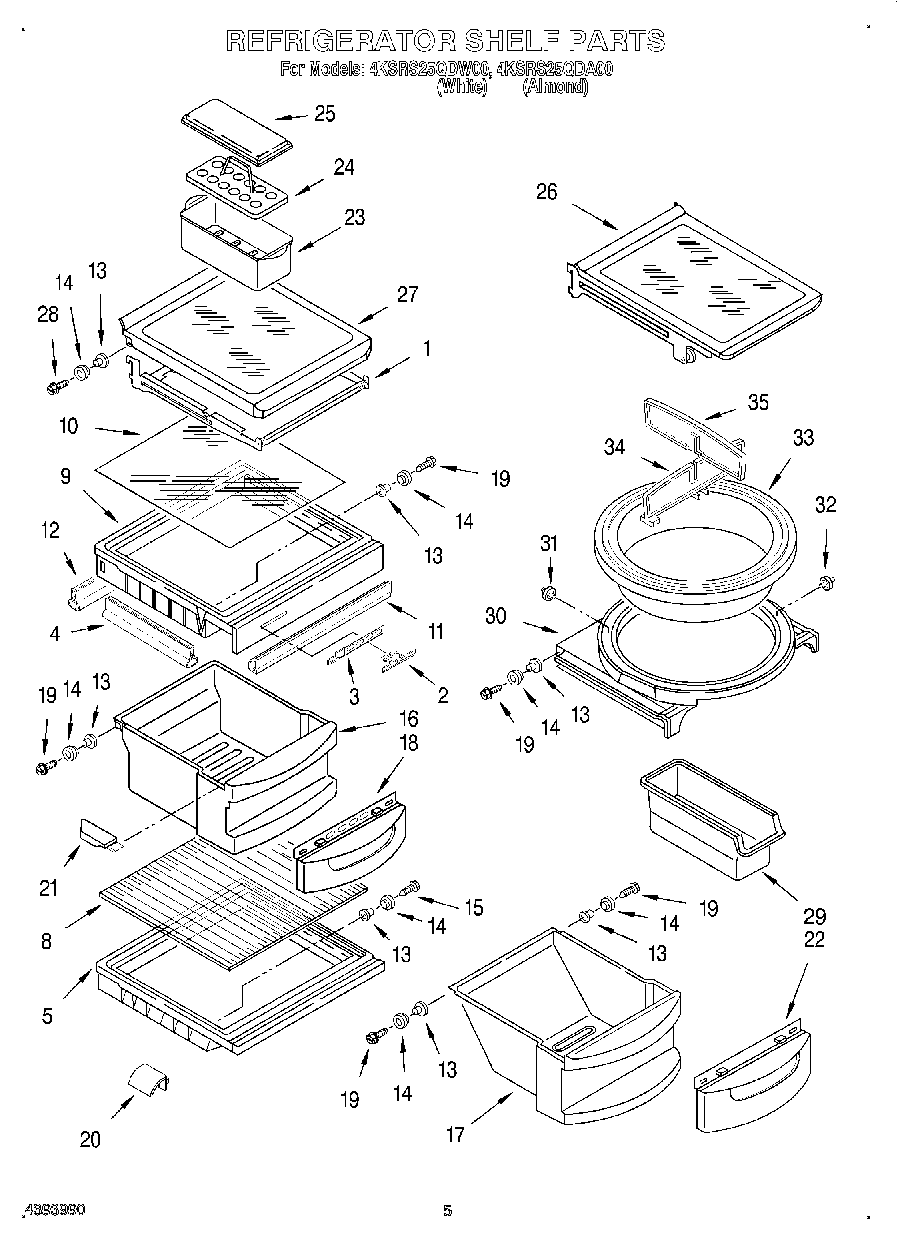

4KSRS25QDW00 04 – REFRIGERATOR SHELFadmin2025-04-26T13:04:05+00:004KSRS25QDW00 04 – REFRIGERATOR SHELF
Products
| Position | Product |
|---|
| 1 | Shelf Assembly, Cantilever (2) |
| 2 | Button, Humidity Control |
| 3 | 2174252 Whirlpool Refrigerator Slide |
| 4 | Gasket, Side (2) |
| 5 | WP2161491 Whirlpool Crisper Drawer Cover |
| 8 | Glass, Cover |
| 9 | Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19) |
| 10 | Glass, Cover |
| 11 | WP1125528 Whirlpool Refrigerator Gasket |
| 12 | Gasket, (Rear) |
| 13 | Eyelet, Roller |
| 14 | Roller |
| 15 | WPW10272364 Whirlpool Refrigerator Screw |
| 16 | WP2179227 Whirlpool Refrigerator Crisper Pan |
| 17 | Meat Pan (Includes 13, 14, 19 & 22) |
| 18 | Window, Crisper |
| 19 | WP489261 Whirlpool Refrigerator Screw |
| 20 | 2176095 Whirlpool Refrigerator Deflector |
| 21 | Cap, Crisper (Right Side) |
| 21 | Cap, Crisper (Left Side) |
| 22 | Window, Meat Pan |
| 23 | W10136387A Whirlpool Refrigerator Egg Container |
| 24 | WP2177817 Whirlpool Refrigerator Egg Container |
| 25 | Cover |
| 26 | Frame And Roller Asm. (Cantilever) |
| 27 | Shelf & Roller Assembly |
| 28 | Screw |
| 29 | WP982704 Whirlpool Refrigerator Container |
| 30 | Carriage |
| 31 | Roller, Front (2) |
| 32 | Roller, Rear (2) |
| 33 | Round Pan |
| 34 | Divider, 1/2 |
| 35 | Divider, 1/4 |
