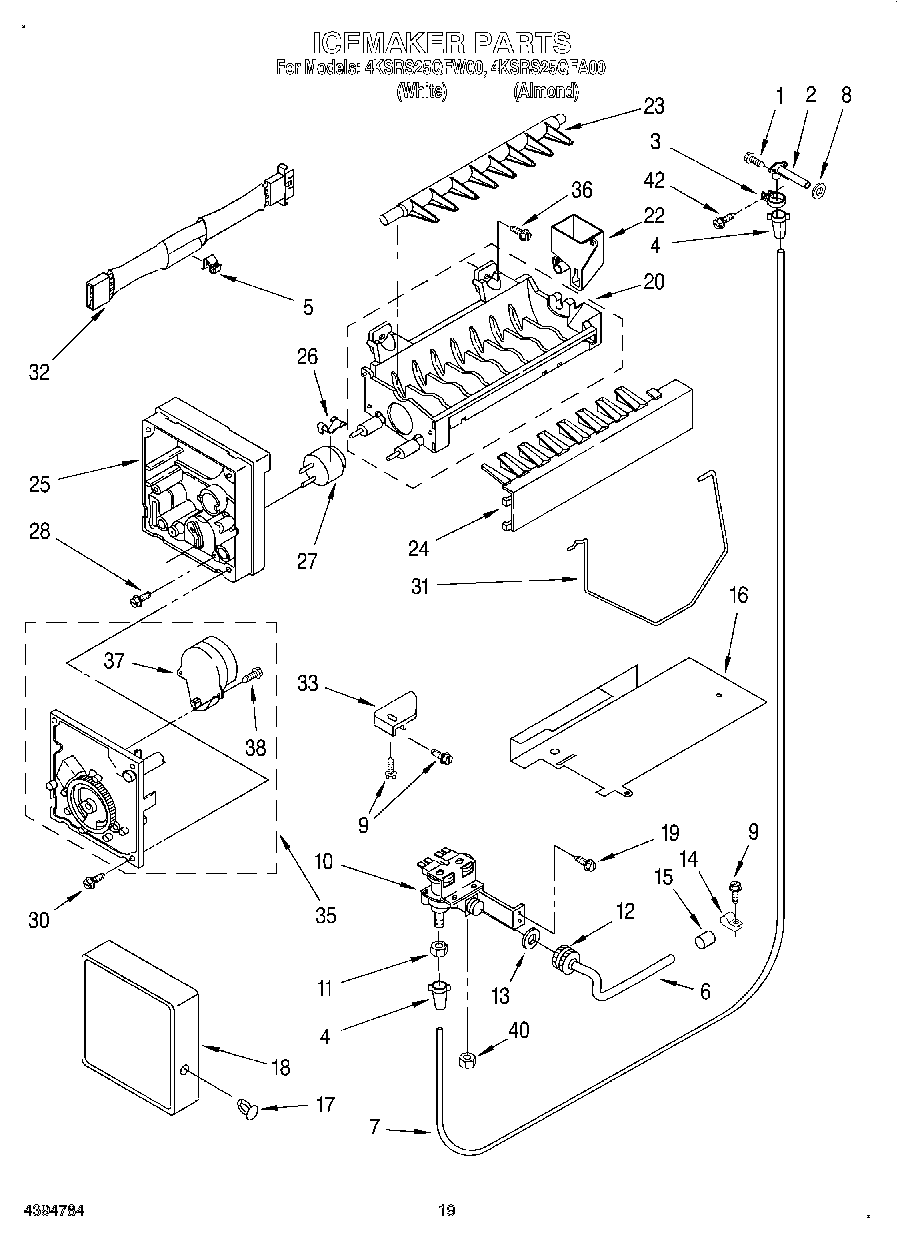

4KSRS25QFA00 11 – ICE MAKER

Products

Position	Product
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
6	Tube, Inlet Valve
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489478 Whirlpool Refrigerator Screw
10	Valve, Solenoid
11	WP627018 Whirlpool Refrigerator Nut
12	Nut, Valve
13	Washer
14	Clamp Tube
15	WP2158826 Whirlpool Refrigerator Dampener
16	2256178 Whirlpool Shield Assembly
17	WP489115 Whirlpool Refrigerator Rivet
18	WPW10289690 Whirlpool Ice Maker Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WP542638 Whirlpool Refrigerator Grease
20	WPW10122523 Whirlpool Refrigerator Ice Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	Cement Alumilastic)
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
36	WP488163 Whirlpool Refrigerator Screw
37	W10190933 Whirlpool Refrigerator Motor Assembly
38	489136 Whirlpool Refrigerator Screw
40	Nut, Compression
42	WP488787 Whirlpool Refrigerator Screw
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
