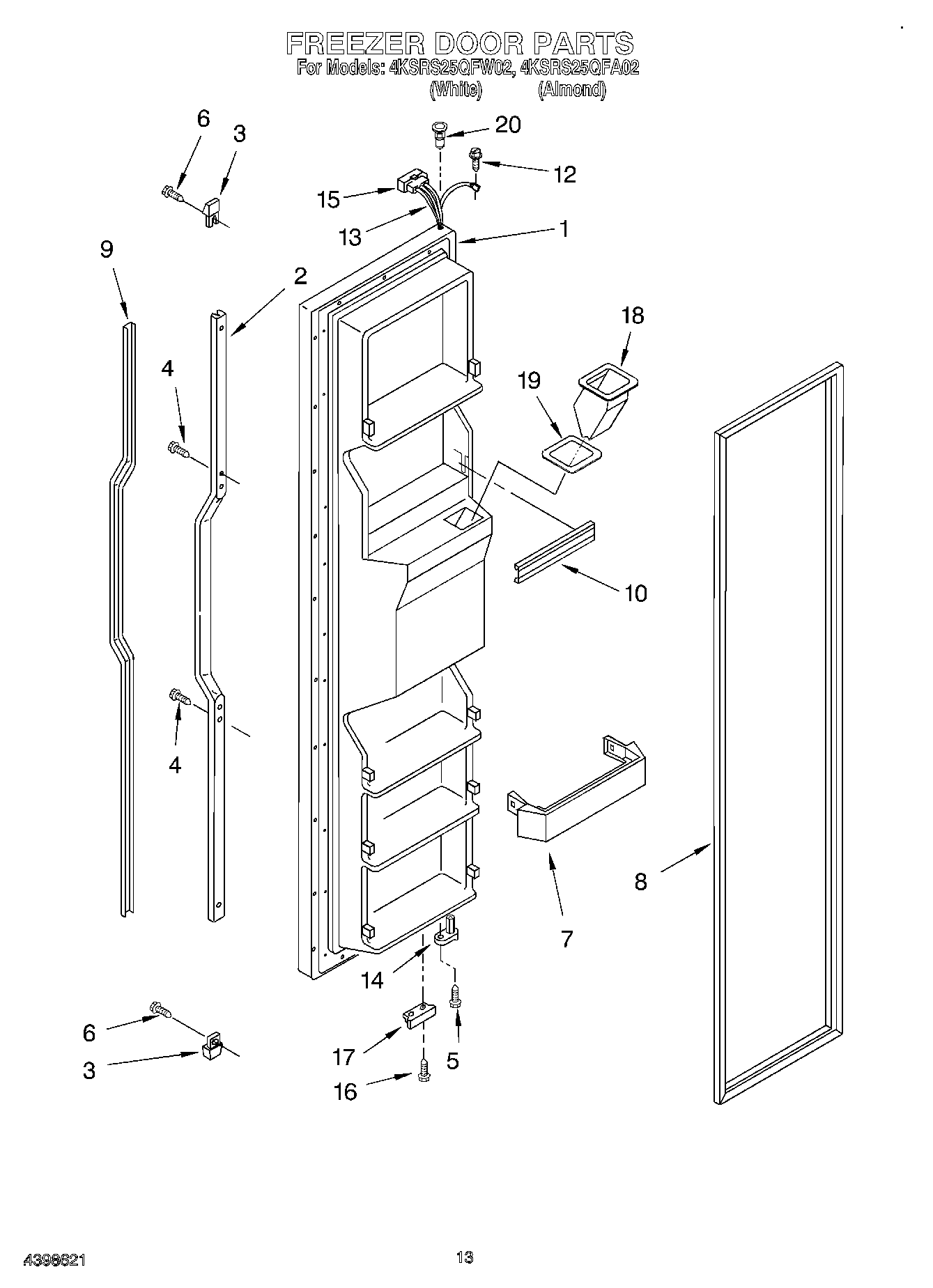

4KSRS25QFA02 08 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts) (White)
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Almond)
2Retainer, Insert
2Retainer, Insert (Almond)
3End Cap, Handle (Almond)
3End Cap, Handle
4WP489463 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6WP3400852 Whirlpool Refrigerator Screw
7Shelf Bin (4)
82159074 Whirlpool Door Gasket Seal
9Insert, Handle (Biscuit)
9Insert, Handle
10WPW10307490 Whirlpool Door Trim Assembly
12WP489128 Whirlpool Refrigerator Screw
13Wire Harness
14WP2182179 Whirlpool Cam Closer
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17Bracket, Door Stop (Chrome)
18Chute, Ice
19Seal, Housing
20WP2182181 Whirlpool Refrigerator Thimble
