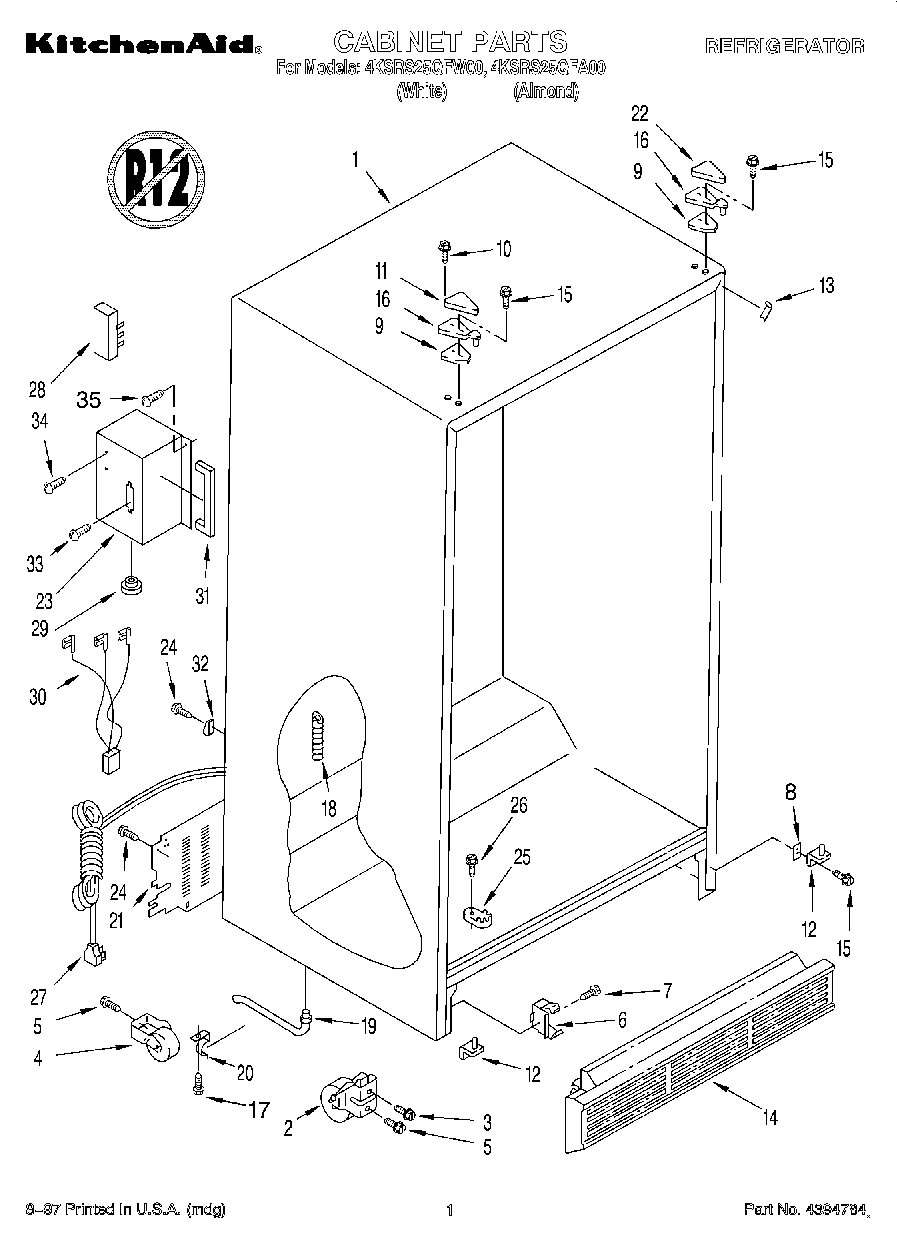

4KSRS25QFW00 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	Shim, Hinge Top
10	Screw
11	WP1129262 Whirlpool Refrigerator Cover
12	8201707 Whirlpool Door Hinge
13	Filler, Wrapper (Almond)
13	Filler, Wrapper (White)
14	Grille (White)
14	Grille (Almond)
15	WP999367 Whirlpool Refrigerator Screw
16	WP2196046 Whirlpool Refrigerator Door Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	WP1108438 Whirlpool Refrigerator Extension
20	WP1108439 Whirlpool Refrigerator Clip
21	Cover, Unit
22	1119787 Whirlpool Refrigerator Hinge Cover
23	Enclosure, Term.
25	WPW10329686 Whirlpool Door Cam Black
26	WP489483 Whirlpool Screw
27	Service Cord
28	Terminal Block
29	Bushing
30	Wiring Assembly, Terminal Block
31	Gasket
32	489348 Whirlpool Refrigerator Tube Clamp
33	WPW10272364 Whirlpool Refrigerator Screw
34	WP489399 Whirlpool Refrigerator Screw
35	WP489463 Whirlpool Refrigerator Screw
