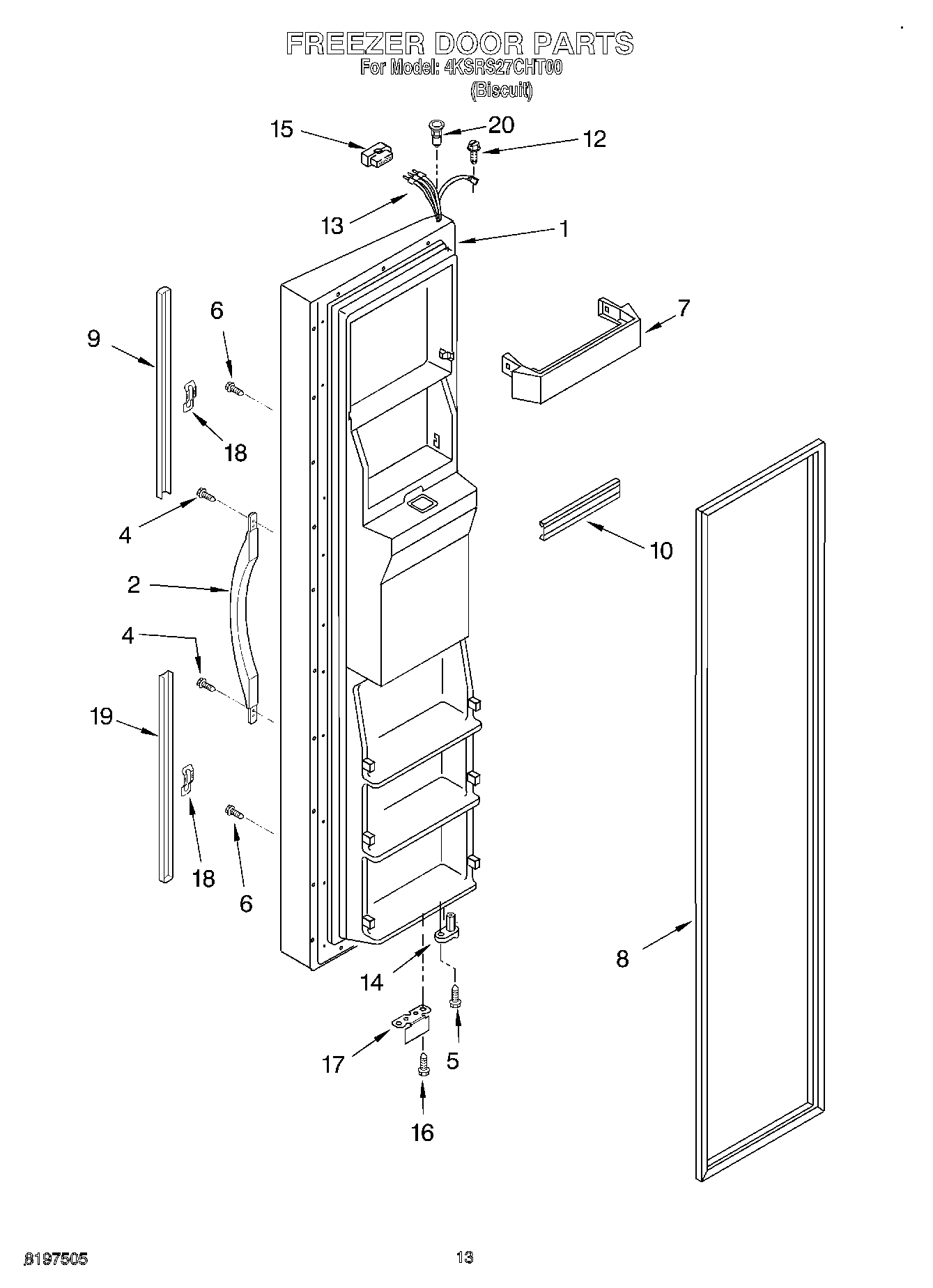

4KSRS27CHT00 08 – FREEZER DOOR

4KSRS27CHT00 08 – FREEZER DOOR

Written by

in

4KSRS27CHT00 08 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts)
2Handle (Biscuit)
4WP489491 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6WP3400852 Whirlpool Refrigerator Screw
7Shelf Bin (4)
82159074 Whirlpool Door Gasket Seal
9Trim, Door-Top (Biscuit)
10WPW10307490 Whirlpool Door Trim Assembly
12WP489128 Whirlpool Refrigerator Screw
13Wire Harness
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17Bracket, Door Stop
18WP2195327 Whirlpool Refrigerator Clip
19Trim, Door-Bottom (Biscuit)
20WP2182179 Whirlpool Cam Closer
