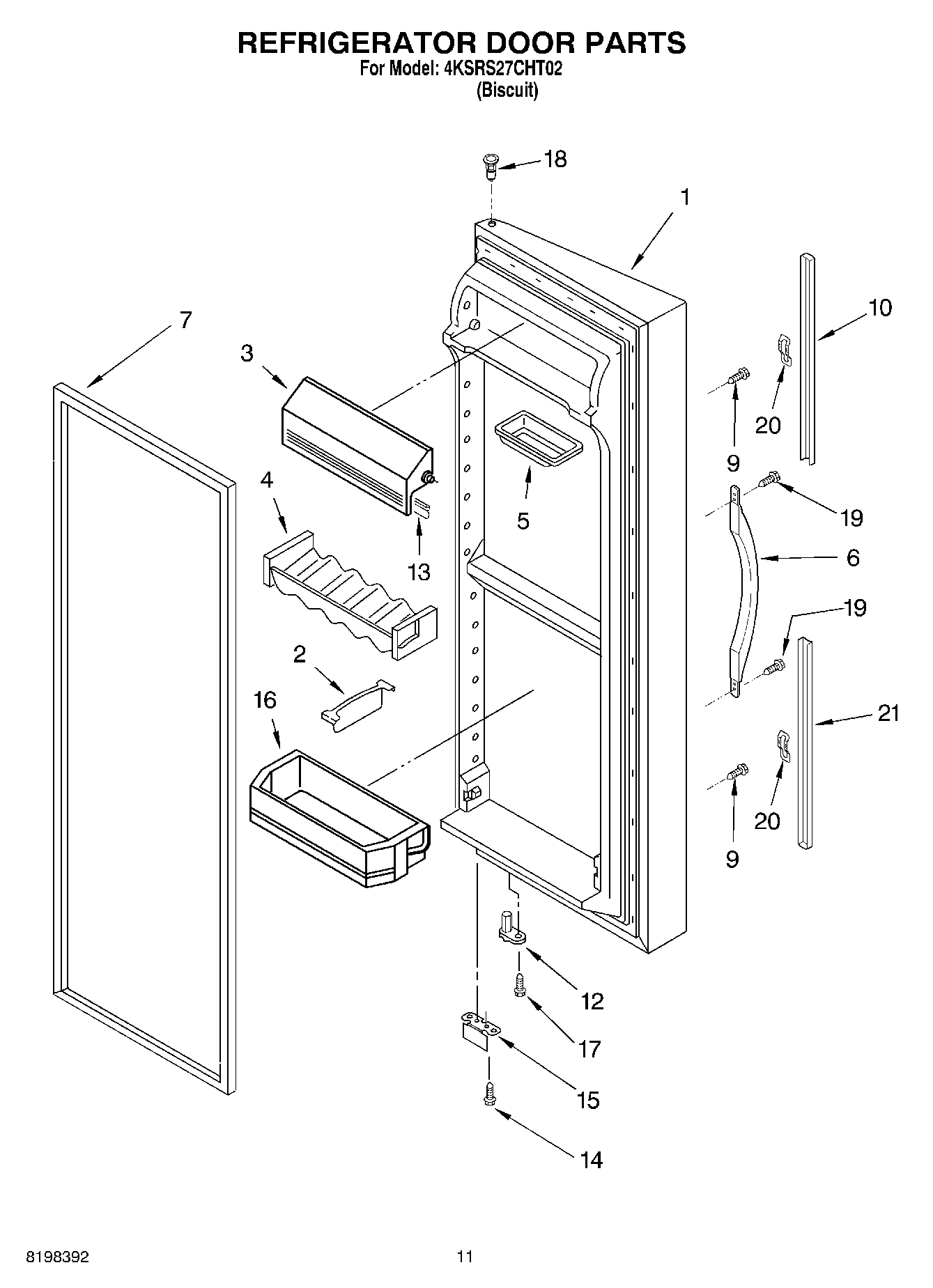

4KSRS27CHT02 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.7)
2	Divider, Bin
3	WP2313637 Whirlpool Cutting Grid Assembly
4	Beverage Holder
5	Butter Tray
6	Handle (Biscuit)
7	2159075 Whirlpool Door Gasket Seal
9	WP3400852 Whirlpool Refrigerator Screw
10	Trim, Door-Top (Biscuit)
13	Gasket, Door Compartment
14	WP489483 Whirlpool Screw
15	Bracket, Door Stop
16	Bin, Door Shelf
17	WP3400012 Whirlpool Refrigerator Screw
18	WP2182179 Whirlpool Cam Closer
19	WP489491 Whirlpool Refrigerator Screw
20	WP2195327 Whirlpool Refrigerator Clip
21	Trim, Door-Bottom (Biscuit)
