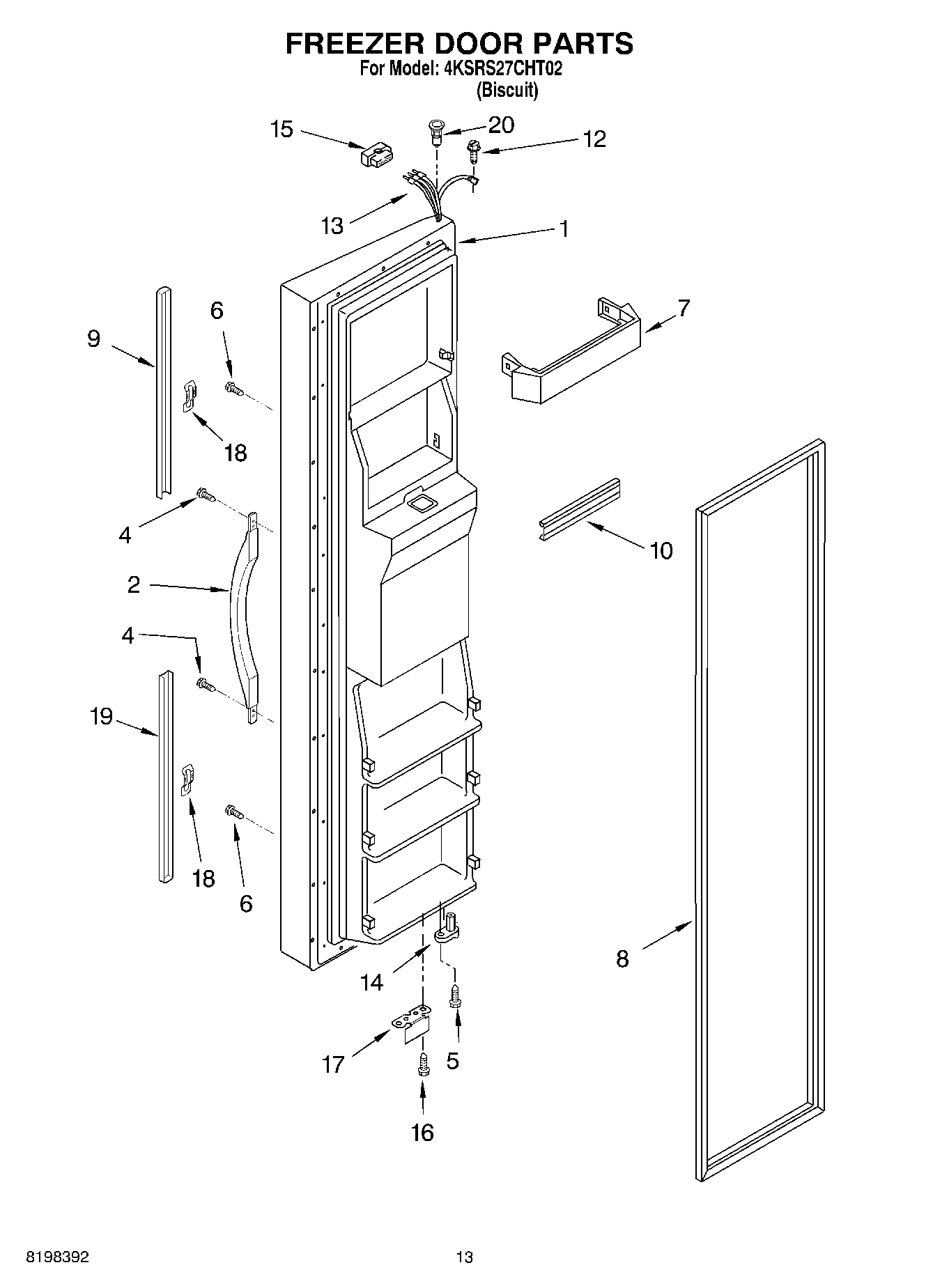

4KSRS27CHT02 08 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts)
2	Handle (Biscuit)
4	WP489491 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	WP3400852 Whirlpool Refrigerator Screw
7	Shelf Bin (4)
8	2159074 Whirlpool Door Gasket Seal
9	Trim, Door-Top (Biscuit)
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP489128 Whirlpool Refrigerator Screw
13	Wire Harness
15	WP2154473 Whirlpool Refrigerator Connector
16	WP489483 Whirlpool Screw
17	Bracket, Door Stop
18	WP2195327 Whirlpool Refrigerator Clip
19	Trim, Door-Bottom (Biscuit)
20	WP2182179 Whirlpool Cam Closer
