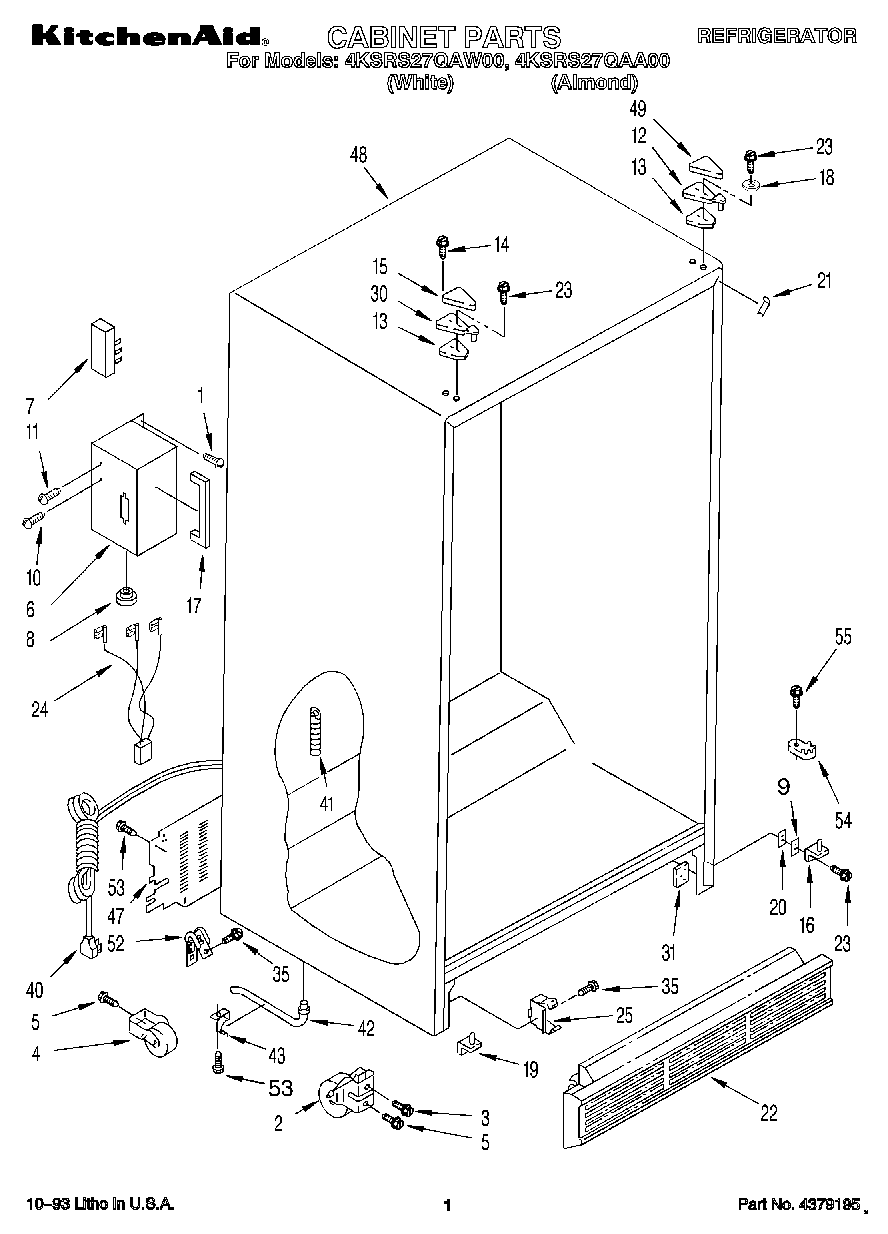

4KSRS27QAW00 01 – CABINET

Products

Position	Product
1	WP250830 Whirlpool Refrigerator Screw
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Enclosure, Term.
7	Terminal Block
8	Bushing
9	Shim, Bottom Hinge
10	WPW10272364 Whirlpool Refrigerator Screw
11	Screw
12	Hinge Top (R.H.)
13	Shim, Hinge Top
14	Screw
15	WP1129262 Whirlpool Refrigerator Cover
16	Hinge Bottom (R.H)
17	Gasket
18	Washer, 7/16
19	Hinge Bottom (L.H)
20	Spacer, Hinge
21	Filler, Wrapper (Almond)
21	Filler, Wrapper (White)
22	Grille
22	Grille (Almond)
23	WP999367 Whirlpool Refrigerator Screw
24	Wiring Assembly, Terminal Block
25	WP2155013 Whirlpool Refrigerator Clip
30	Hinge, Top (L.H.)
31	Tap Plate (2)
35	WP489478 Whirlpool Refrigerator Screw
40	Service Cord
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	Cover, Unit
48	Cabinet (Not A Serviceable Part)
49	1119787 Whirlpool Refrigerator Hinge Cover
52	489348 Whirlpool Refrigerator Tube Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489399 Whirlpool Refrigerator Screw
