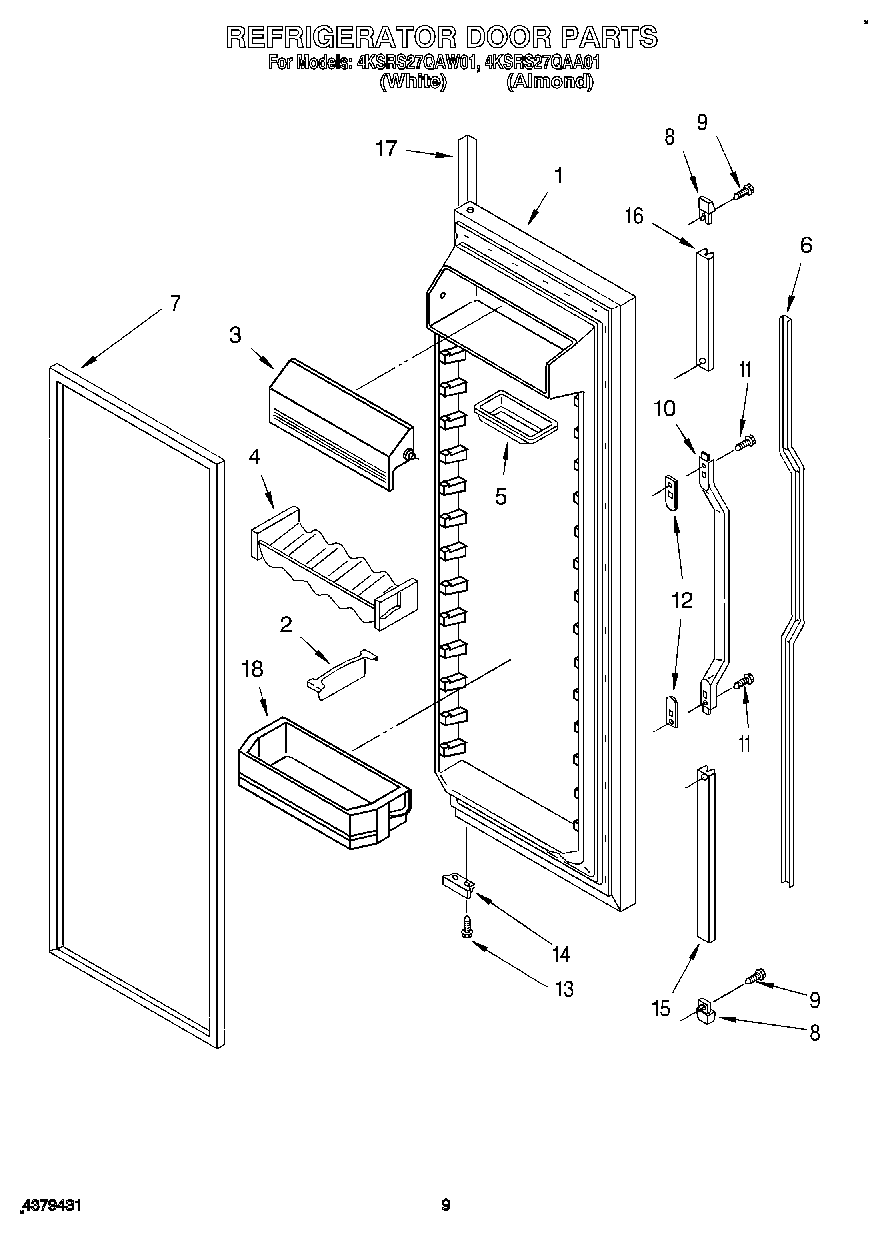

4KSRS27QAW01 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 7) (Almond)
1Refrigerator Door (Includes Item 7) (White)
2Load Lock
3Door, Compartment
4WPL 1125981
5Butter, Tray
6Insert, Handle (Almond)
6Insert, Handle
72159075 Whirlpool Door Gasket Seal
8End Cap (2)
9Screw
10Handle
12Spacer, Handle
13WP999367 Whirlpool Refrigerator Screw
14Bracket, Door Stop (Chrome)
15Retainer, Insert
16Retainer, Insert
17Trim, Door
18Trim Kit Trim Kit Panels
18Handle Inserts (Black Grille Kit)
18Handle Inserts (Woodgrain)
18Black Glass
18Handle Inserts (Black)
18Acrylic Panel Kit (White)
18Shelf Bin (4)
18Acrylic Panel Kit (Almond)
