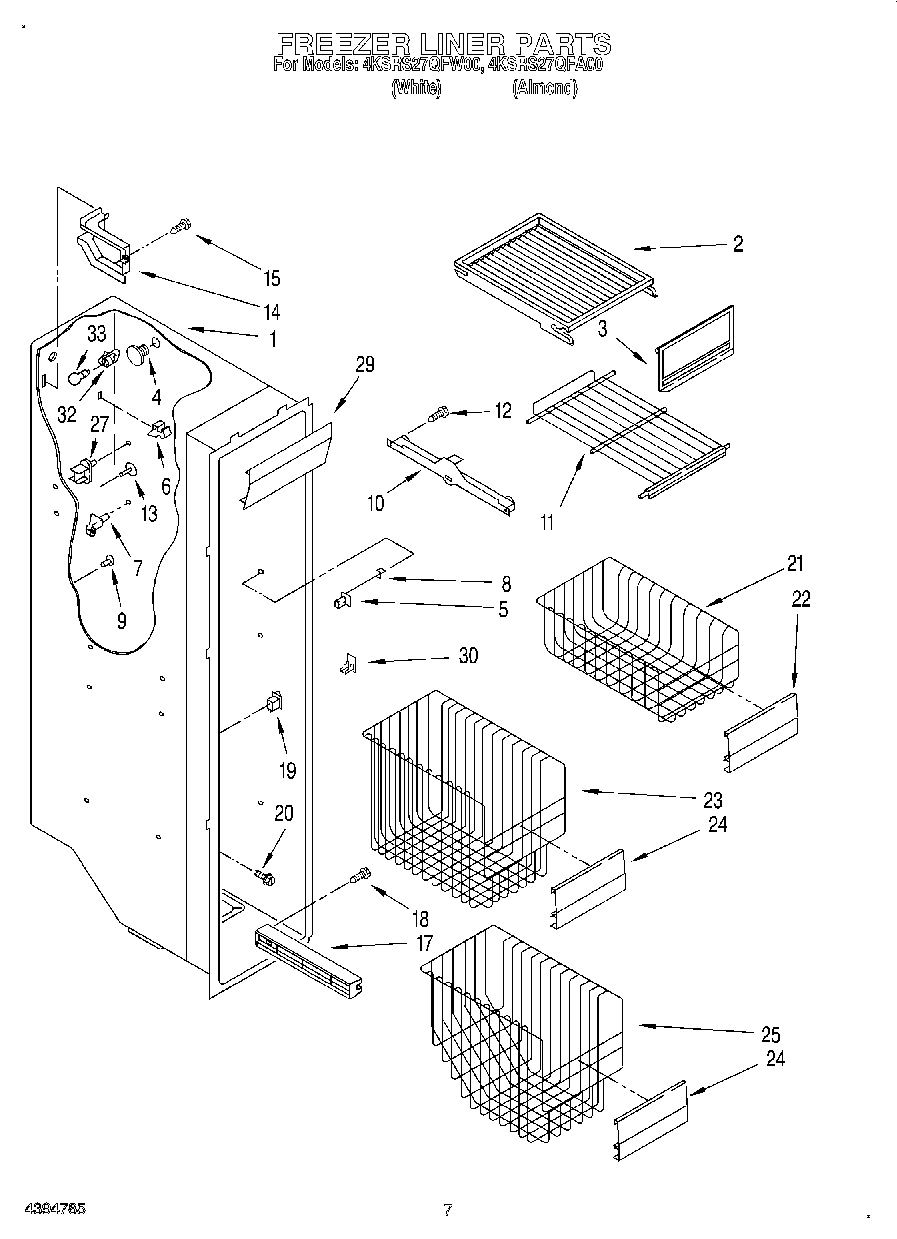

4KSRS27QFA00 05 – FREEZER LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Shelf, Top Compartment
3WP2171713 Whirlpool Refrigerator Ice Door
4940014 Whirlpool Refrigerator Primary Button Plug
5Stud, Front R.S.
62215823 Whirlpool Refrigerator Clip
74388405 Whirlpool Refrigerator Shelf Stud
8Stud, Support
9Grommet
10W10845585 Whirlpool Refrigerator Track
10W10845583 Whirlpool Refrigerator Track
11WP2174267 Whirlpool Refrigerator Wire Shelf
12718257 Whirlpool Dishwasher Screw
13WP941839 Whirlpool Refrigerator Button Plug
14Cover, Wiring
15SCREW
17Slide, Basket (Left Side (2))
17Slide, Basket (Right Side (2))
18W11693756 Whirlpool Screw Assembly
19W11457217 Whirlpool Refrigerator Rocker Switch Combination
20WP489478 Whirlpool Refrigerator Screw
21Basket
22Front, Basket
23Basket, Tall
242305580K Whirlpool Refrigerator Basket Trim
25Basket, Slope
27Stud, Shelf (4)
292171705 Whirlpool Refrigerator Light Lens
30Stud, Rear R.S.
32WP2175210 Whirlpool Refrigerator Shroud
33WP67002552 Whirlpool Refrigerator Light Bulb
