4KSRS27QFA00 12 – CONTROL, LIT/OPTIONAL

4KSRS27QFA00 12 – CONTROL, LIT/OPTIONAL

Written by

in

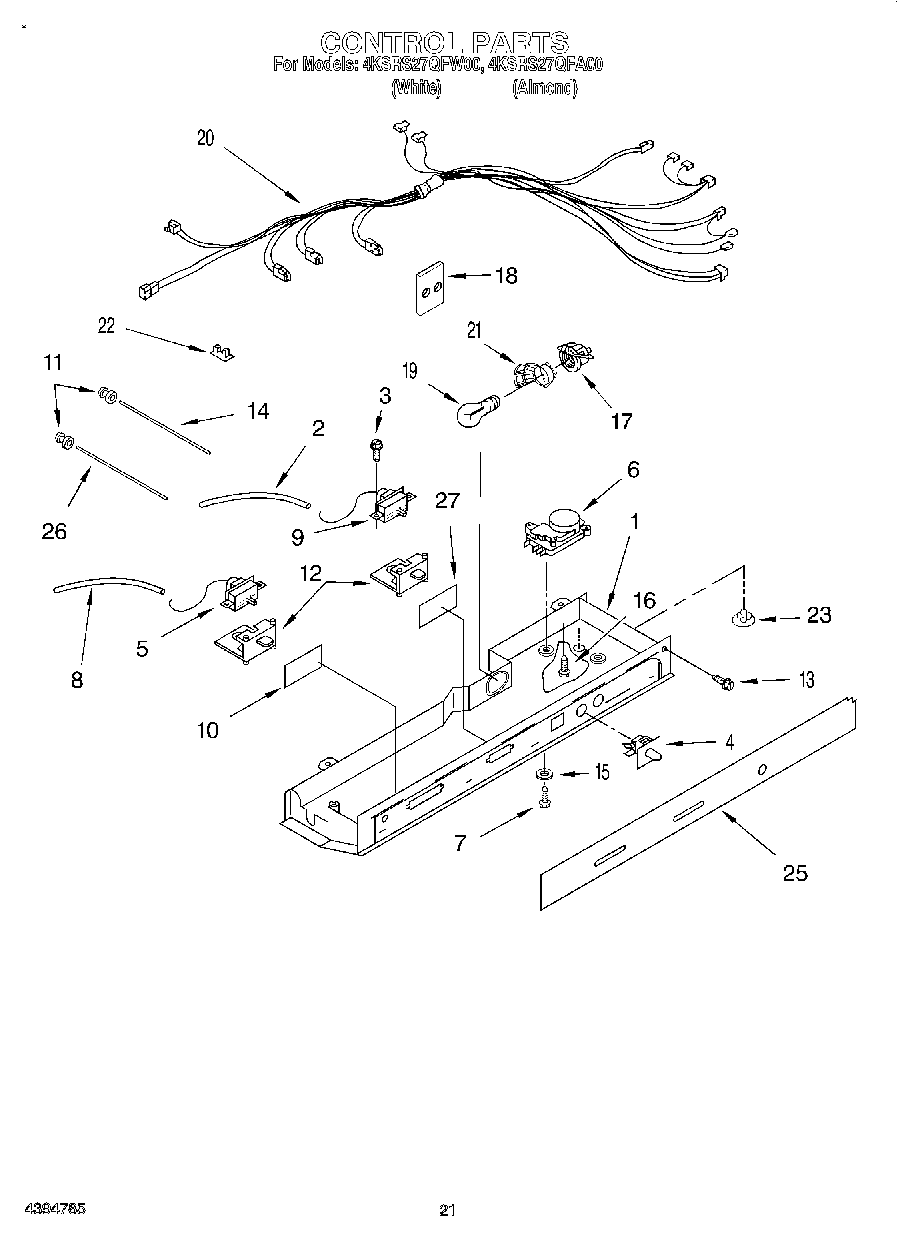

4KSRS27QFA00 12 – CONTROL, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2198139
Use & Care Guide
Torx Key
WPL LIT2198374
WPL LIT628371
12200135 Whirlpool Refrigerator Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5WP2182770 Whirlpool Refrigerator Thermostat
6WP2166867 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
9WP2161460 Whirlpool Refrigerator Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
15Washer
16WP488488 Whirlpool Refrigerator Screw
174387478 Whirlpool Refrigerator Light Socket
182172931 Whirlpool Refrigerator Shield
19WP67002552 Whirlpool Refrigerator Light Bulb
20Control Box Harness
21WP2175210 Whirlpool Refrigerator Shroud
22CLIP, WIRING
23Hole Plug
25Escutcheon, Control Box
26Light Bar (FC)
27350930 Whirlpool White Spray Paint
27Window
27WP72107 Whirlpool Touchup
27Almond (Uncut)
2772017 Whirlpool Appliance Touch-Up Paint White
27212643 Whirlpool Refrigerator Permagum Sealer
27350942 Whirlpool Spray Paint
27350956 Whirlpool Spray Assembly
27799344 Whirlpool Refrigerator Paint
27511873 Whirlpool Refrigerator Paint
27606755 Whirlpool Refrigerator Bag
27WPL 799833
27285006 Whirlpool Spray
2772032 Whirlpool Touch Up Paint Black
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
27WPW10312300 Whirlpool Refrigerator Ice Container
27TAPE, VINYL (3/4 X 108“)
27WP542638 Whirlpool Refrigerator Grease
27WP505587 Whirlpool Refrigerator Sealer
27WP503695 Whirlpool Refrigerator Sealer
27Enamel, Black (1 Qt. Uncut)
27876370 Whirlpool Refrigerator Insulation
27833938 Whirlpool Refrigerator Terminal
27WPL 876029
