4KSRS27QFA03 12 – SECTION

4KSRS27QFA03 12 – SECTION

Written by

in

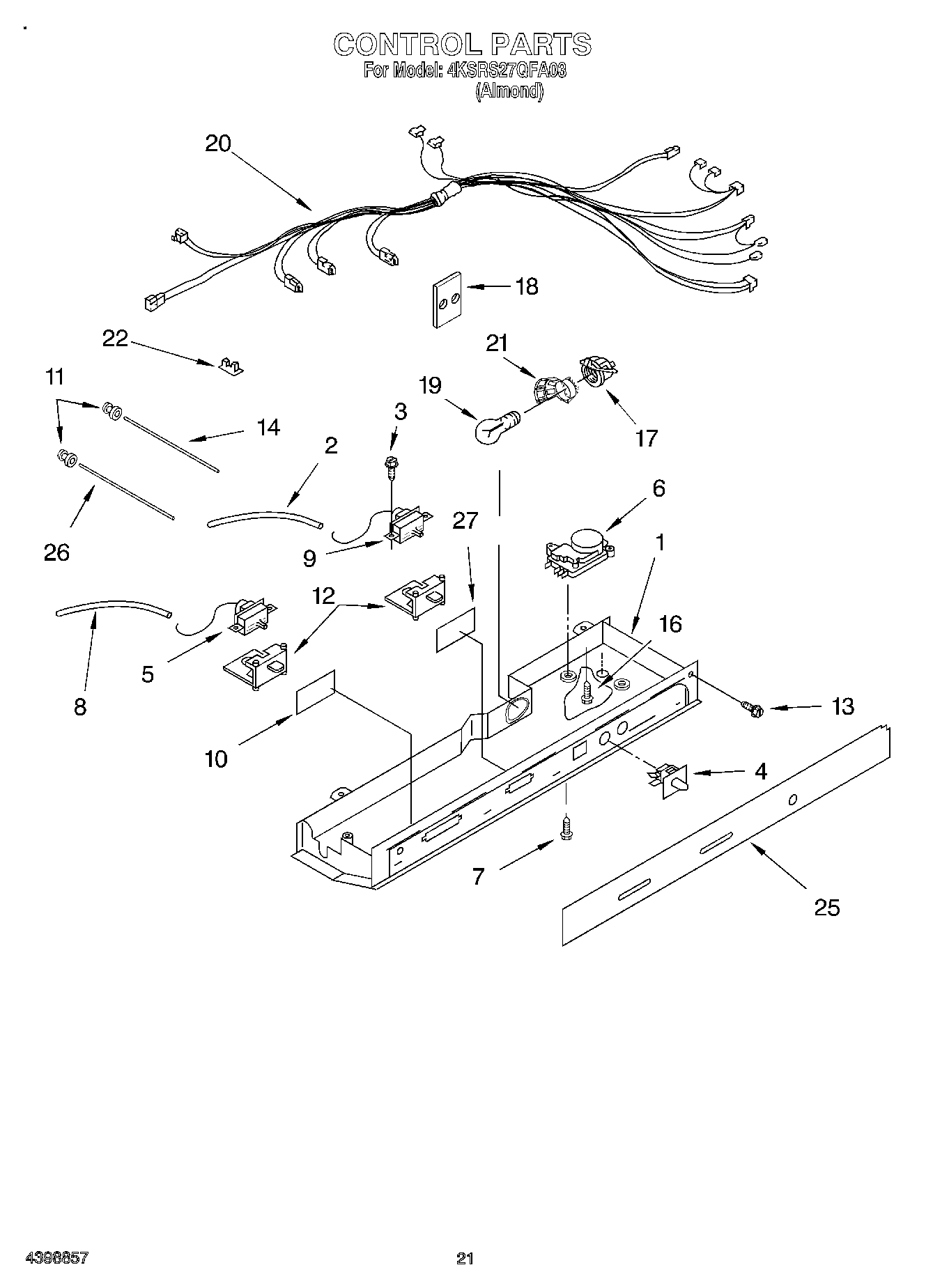

4KSRS27QFA03 12 – SECTION

Products

PositionProduct
12200135 Whirlpool Refrigerator Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5Thermostat (FC)
6WP2188379 Whirlpool Refrigerator Defrost Timer
7489392 Whirlpool Refrigerator Screw
9WP2161460 Whirlpool Refrigerator Thermostat
102172940 Whirlpool Window
11Grommet, Light Fiber
122161466 Whirlpool Refrigerator Slide
14Fiber Optic
16WP488488 Whirlpool Refrigerator Screw
17WP2175210 Whirlpool Refrigerator Shroud
182172931 Whirlpool Refrigerator Shield
19WP67002552 Whirlpool Refrigerator Light Bulb
20Control Box Harness
22CLIP, WIRING
25Escutcheon, Control Box
26Light Bar (FC)
27606755 Whirlpool Refrigerator Bag
27511873 Whirlpool Refrigerator Paint
27350942 Whirlpool Spray Paint
27212643 Whirlpool Refrigerator Permagum Sealer
27WP72107 Whirlpool Touchup
27799344 Whirlpool Refrigerator Paint
27Almond (Uncut)
27Window
2772017 Whirlpool Appliance Touch-Up Paint White
27350956 Whirlpool Spray Assembly
27350930 Whirlpool White Spray Paint
27833938 Whirlpool Refrigerator Terminal
27876370 Whirlpool Refrigerator Insulation
27WPL 799833
27WPL 876029
27CEMENT, ALUMILASTIC (1 1/4 OZ.)
27285006 Whirlpool Spray
2772032 Whirlpool Touch Up Paint Black
27Torx Key
27WPW10312300 Whirlpool Refrigerator Ice Container
27TAPE, VINYL (3/4 X 108“)
27WP542638 Whirlpool Refrigerator Grease
27WP505587 Whirlpool Refrigerator Sealer
27WP503695 Whirlpool Refrigerator Sealer
27Enamel, Black (1 Qt. Uncut)
