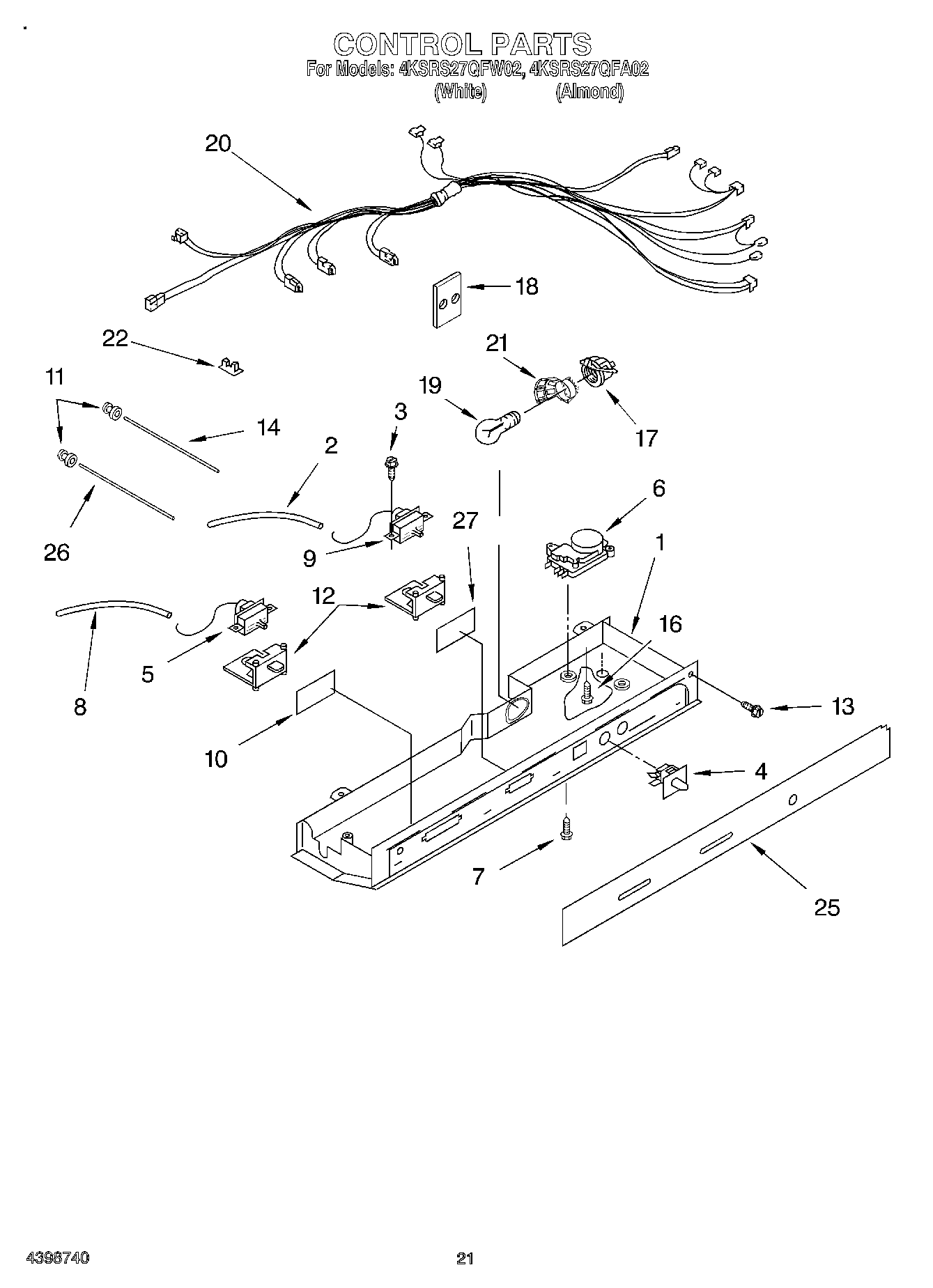

4KSRS27QFW02 12 – CONTROL, OPTIONAL

Products

Position	Product
1	2200135 Whirlpool Refrigerator Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	Thermostat (FC)
6	WP2188379 Whirlpool Refrigerator Defrost Timer
7	489392 Whirlpool Refrigerator Screw
9	WP2161460 Whirlpool Refrigerator Thermostat
10	2172940 Whirlpool Window
11	Grommet, Light Fiber
12	2161466 Whirlpool Refrigerator Slide
14	Fiber Optic
16	WP488488 Whirlpool Refrigerator Screw
17	WP2175210 Whirlpool Refrigerator Shroud
18	2172931 Whirlpool Refrigerator Shield
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Harness, Control Box
22	CLIP, WIRING
25	Escutcheon, Control Box
26	Light Bar (FC)
27	606755 Whirlpool Refrigerator Bag
27	511873 Whirlpool Refrigerator Paint
27	350942 Whirlpool Spray Paint
27	212643 Whirlpool Refrigerator Permagum Sealer
27	WP72107 Whirlpool Touchup
27	799344 Whirlpool Refrigerator Paint
27	Almond (Uncut)
27	Window
27	72017 Whirlpool Appliance Touch-Up Paint White
27	350956 Whirlpool Spray Assembly
27	350930 Whirlpool White Spray Paint
27	833938 Whirlpool Refrigerator Terminal
27	876370 Whirlpool Refrigerator Insulation
27	WPL 799833
27	WPL 876029
27	CEMENT, ALUMILASTIC (1 1/4 OZ.)
27	285006 Whirlpool Spray
27	72032 Whirlpool Touch Up Paint Black
27	Torx Key
27	WPW10312300 Whirlpool Refrigerator Ice Container
27	TAPE, VINYL (3/4 X 108“)
27	WP542638 Whirlpool Refrigerator Grease
27	WP505587 Whirlpool Refrigerator Sealer
27	WP503695 Whirlpool Refrigerator Sealer
27	Enamel, Black (1 Qt. Uncut)
