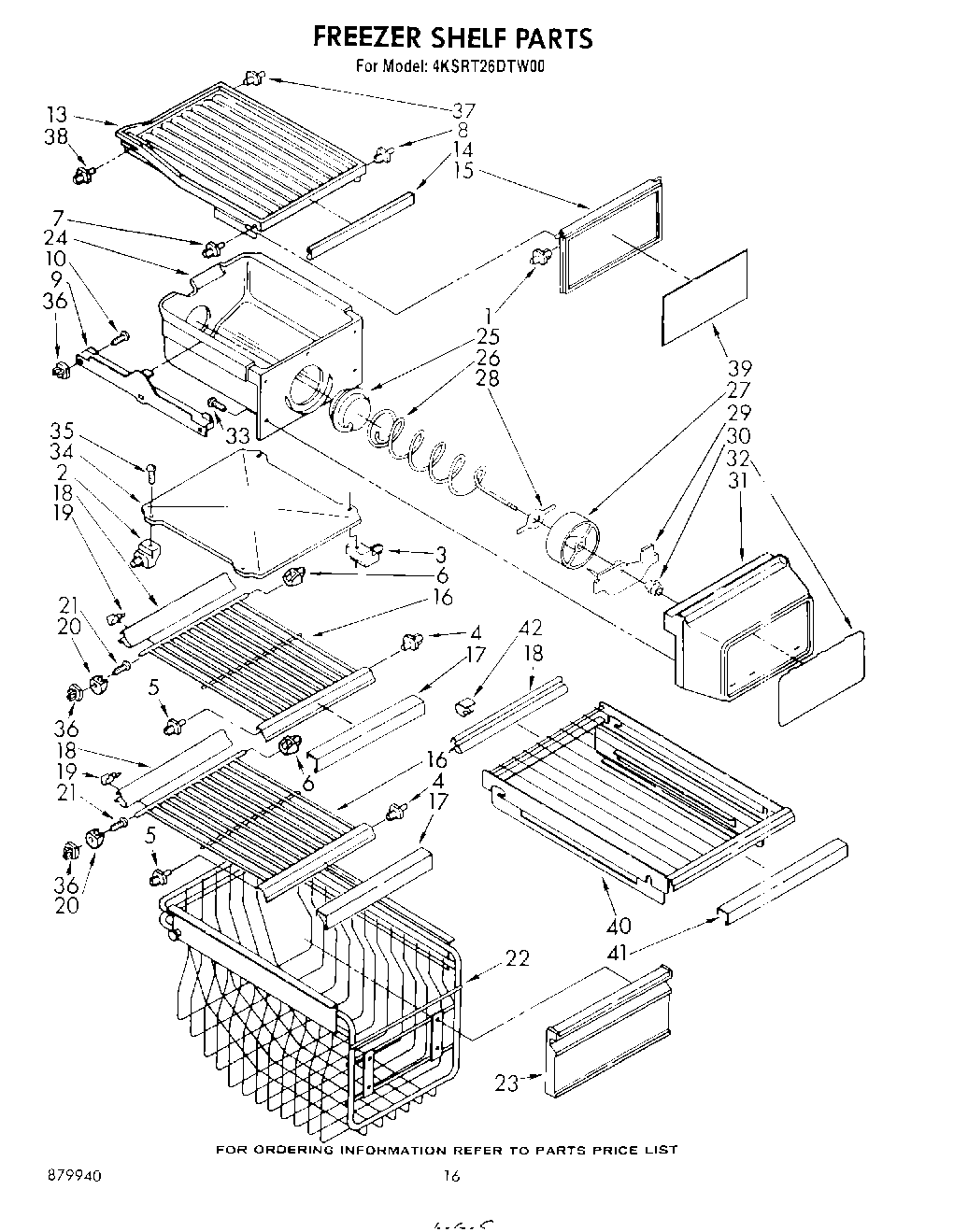

4KSRT26DTA00 09 – FREEZER SHELFadmin2025-04-26T13:03:45+00:004KSRT26DTA00 09 – FREEZER SHELF
Products
| Position | Product |
|---|
| 1 | Shelf, Stud |
| 2 | Retainer, Stud (4) |
| 3 | Retainer, Stud |
| 4 | Shelf, Stud |
| 5 | Shelf, Stud (2) |
| 6 | Shelf, Saddle (R.S.) |
| 7 | Shelf, Stud |
| 8 | Stud, Shelf |
| 9 | Slide, Basket (Left Side) |
| 10 | Screw, 8 x 1 |
| 13 | Solid Shelf (For Platinum Model Only) |
| 14 | Trim, Shelf |
| 15 | Front, Ice Compartment |
| 16 | Shelf, Freezer |
| 17 | Trim, Shelf Front |
| 18 | Reflector, Shelf |
| 19 | Clip, Reflector (2) |
| 20 | Shelf Stud, Saddle L.S. |
| 21 | WP488729 Whirlpool Refrigerator Door Screw |
| 22 | Freezer Basket |
| 23 | Front, Freezer Basket |
| 24 | Ice Container |
| 25 | W10749708 Whirlpool Refrigerator Coupling |
| 26 | Conveyor, Ice Container |
| 28 | 4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum |
| 29 | Baffle |
| 30 | Nut, Bearing |
| 31 | Front Cover, Ice Dispenser |
| 32 | Overlay, Front Cover |
| 33 | WP488787 Whirlpool Refrigerator Screw |
| 34 | Baffle, Ice Container |
| 36 | Grommet |
| 37 | Stud, Shelf |
| 38 | Stud, Shelf (2) |
| 39 | Overlay, Ice Compartment |
| 40 | Shelf, Freezer Basket |
| 41 | Trim, Frame |
| 42 | Clip, Reflector |
