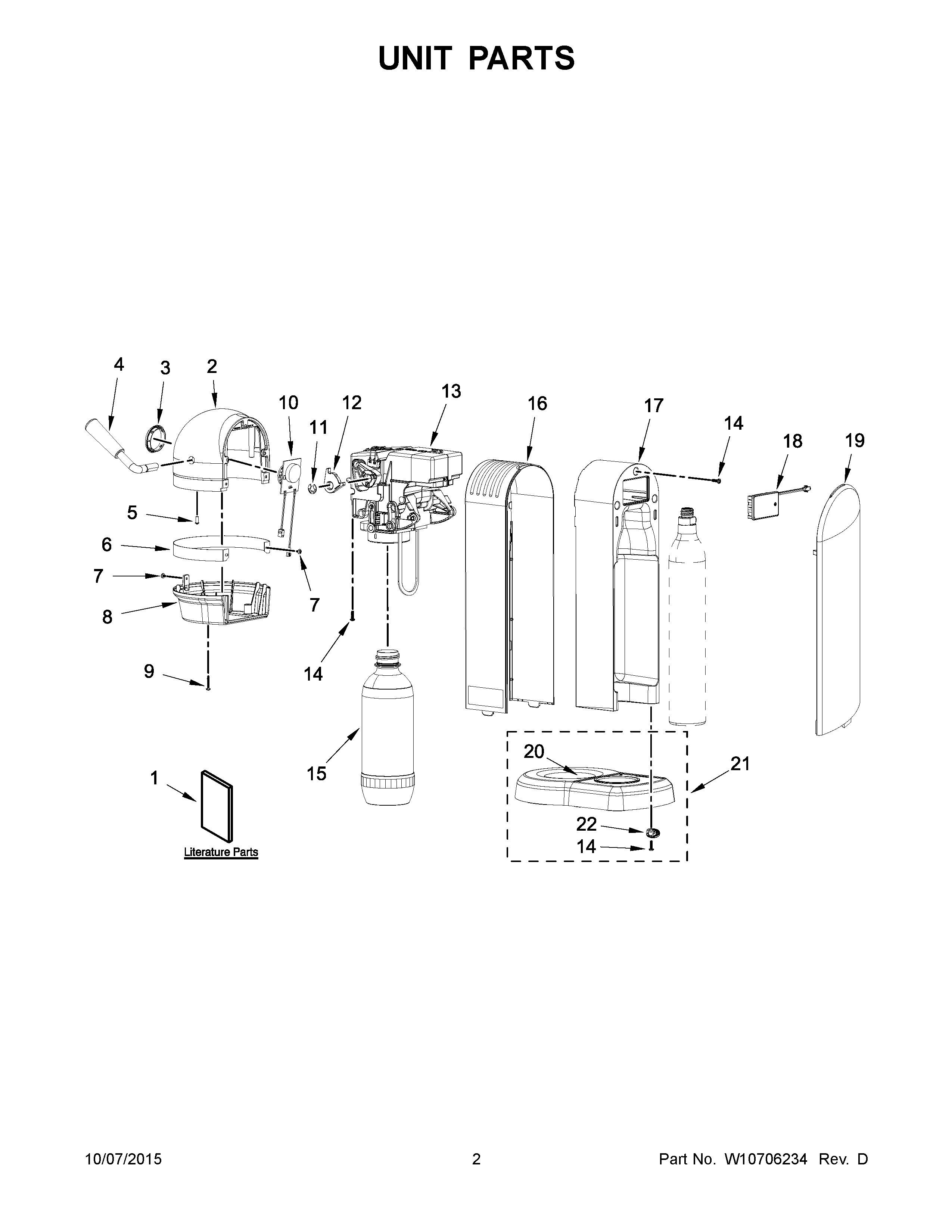

4KSS1121ER0 02 – UNIT PARTS

Products

PositionProduct
1BUSE AND CARE GUIDE (AUSTRALIAN)
1AUSE AND CARE GUIDE (EUROPEAN)
1USE AND CARE GUIDE
2JHOUSING, UPPER (CANDY APPLE)
2IHOUSING, UPPER (ALMOND CREME)
2KHOUSING, UPPER (SLATE)
2LHOUSING, UPPER (MEDALLION SILVER)
2HHOUSING, UPPER (LIQUID GRAPHITE)
2GHOUSING, UPPER (CONTOUR SILVER)
2EHOUSING, UPPER (GREEN APPLE)
2DHOUSING, UPPER (AQUA SKY)
2CHOUSING, UPPER (COBALT BLUE)
2BHOUSING, UPPER (EMPIRE RED)
2AHOUSING, UPPER (ONYX BLACK)
2HOUSING, UPPER (WHITE)
2FHOUSING, UPPER (TANGERINE)
3LENS ASSEMBLY
4HANDLE ASSEMBLY
5W10654212 Whirlpool Strike Plate
6ABAND, TRIM (ARTISAN)
6BAND, TRIM
7W10853069 Whirlpool Screw
8HOUSING, LOWER
9WP3395530 Whirlpool Screw
10W10635549 Whirlpool Board
11WP354987 Whirlpool C-Clip
12CAM, DETENT
13W10635490 Whirlpool Carbonator Assembly
13ACARBONATOR ASSEMBLY (AUSTRALIA)
14WP3400814 Whirlpool Screw
15PET BOTTLE
16COVER, REAR WRAP
17ICOLUMN (ALMOND CREME)
17JCOLUMN (CANDY APPLE)
17LCOLUMN (MEDALLION SILVER)
17HCOLUMN (LIQUID GRAPHITE)
17GCOLUMN (CONTOUR SILVER)
17FCOLUMN (TANGERINE)
17ECOLUMN (GREEN APPLE)
17DCOLUMN (AQUA SKY)
17CCOLUMN (COBALT BLUE)
17BCOLUMN (EMPIRE RED)
17ACOLUMN (ONYX BLACK)
17COLUMN (WHITE)
17KCOLUMN (SLATE)
18BATTERY PACK ASSEMBLY
19COVER, REAR
20RING, BASE TRIM
21KWPL W10784766
21JWPL W10676502
21IWPL W10676501
21HWPL W10645548
21GW10645546 Whirlpool Base Assembly
21FWPL W10667877
21EWPL W10667876
21DWPL W10667875
21CWPL W10667874
21BWPL W10645544
21ABA
21BASE (WHITE)
21LWPL W10645547
22WP9709707 Whirlpool Foot
