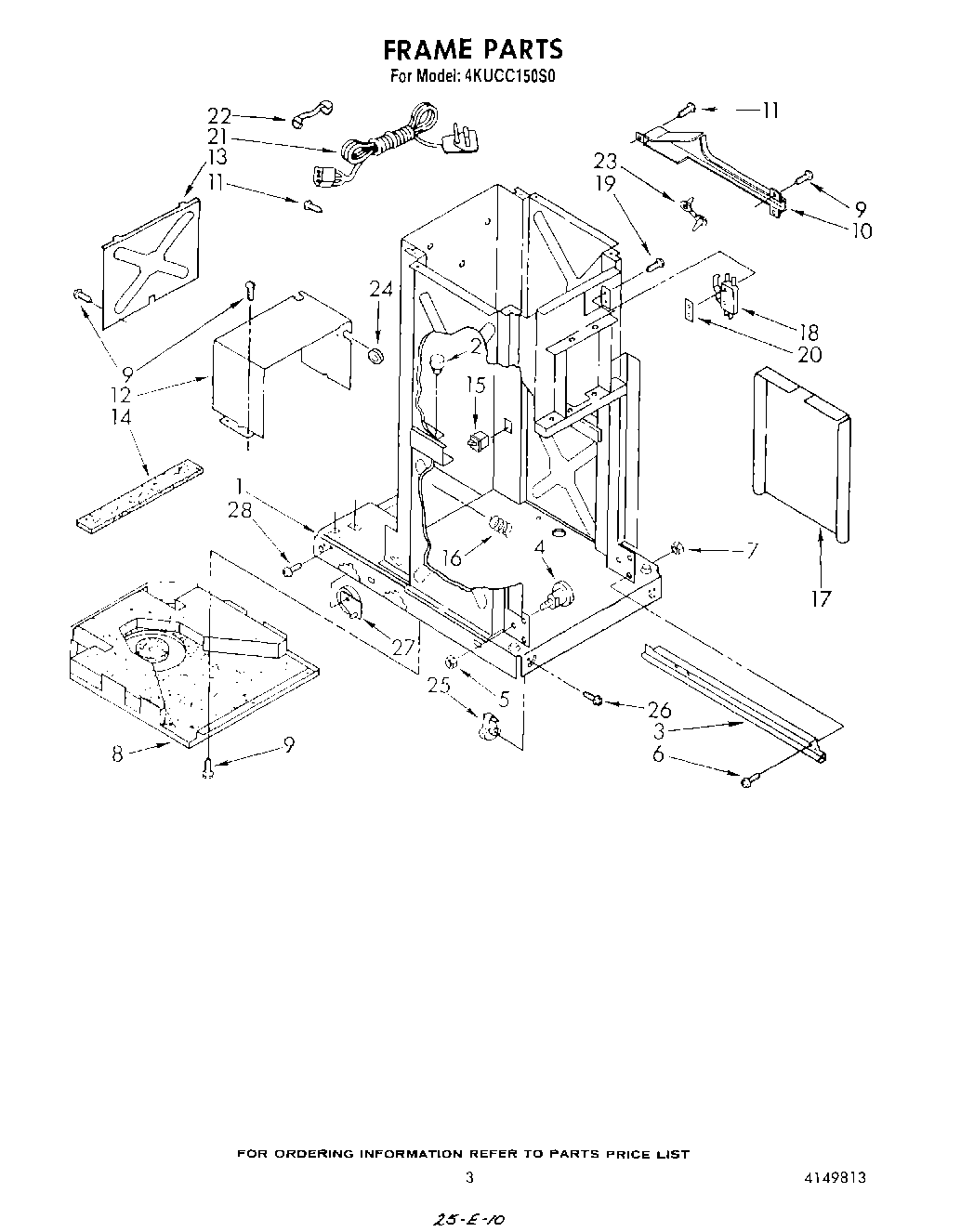

4KUCC150S0 03 – FRAME

Products

Position	Product
1	Frame (Not a Serviceable Part)
2	Bumper, Ram (4)
3	SLIDE
3	WP9870975 Whirlpool Compactor Slide
4	882688 Whirlpool Compactor Bearing
5	WP776356 Whirlpool Compactor Nut
6	WP486754 Whirlpool Compactor Screw
7	Nut, 6-32 (4)
8	WP780437 Whirlpool Compactor Bottom Pan
9	WP489069 Whirlpool Compactor Screw
10	4149659 Whirlpool Shield Assembly
11	WP488234 Whirlpool Air Conditioner Screw
12	Cover, Motor
13	Plate, Motor Cover
14	Barrier, Glass
15	switch, drawer safety
16	WP777180 Whirlpool Compactor Spring
17	Insulation, Inner Panel (2)
18	WP777811 Whirlpool Compactor Directional Switch
19	777849 Whirlpool Compactor Screw
20	Plate, Nut
21	Cord, Power
22	Bushing, Cord
23	Clamp, Wire
24	Grommet, Motor Cover
25	leveler (2)
26	Screw & Washer Assembly (2)
27	Wheel, Leveler (Right Side)
27	W11023674 Whirlpool Compactor Leveling Wheel
28	WP3351614 Whirlpool Screw
