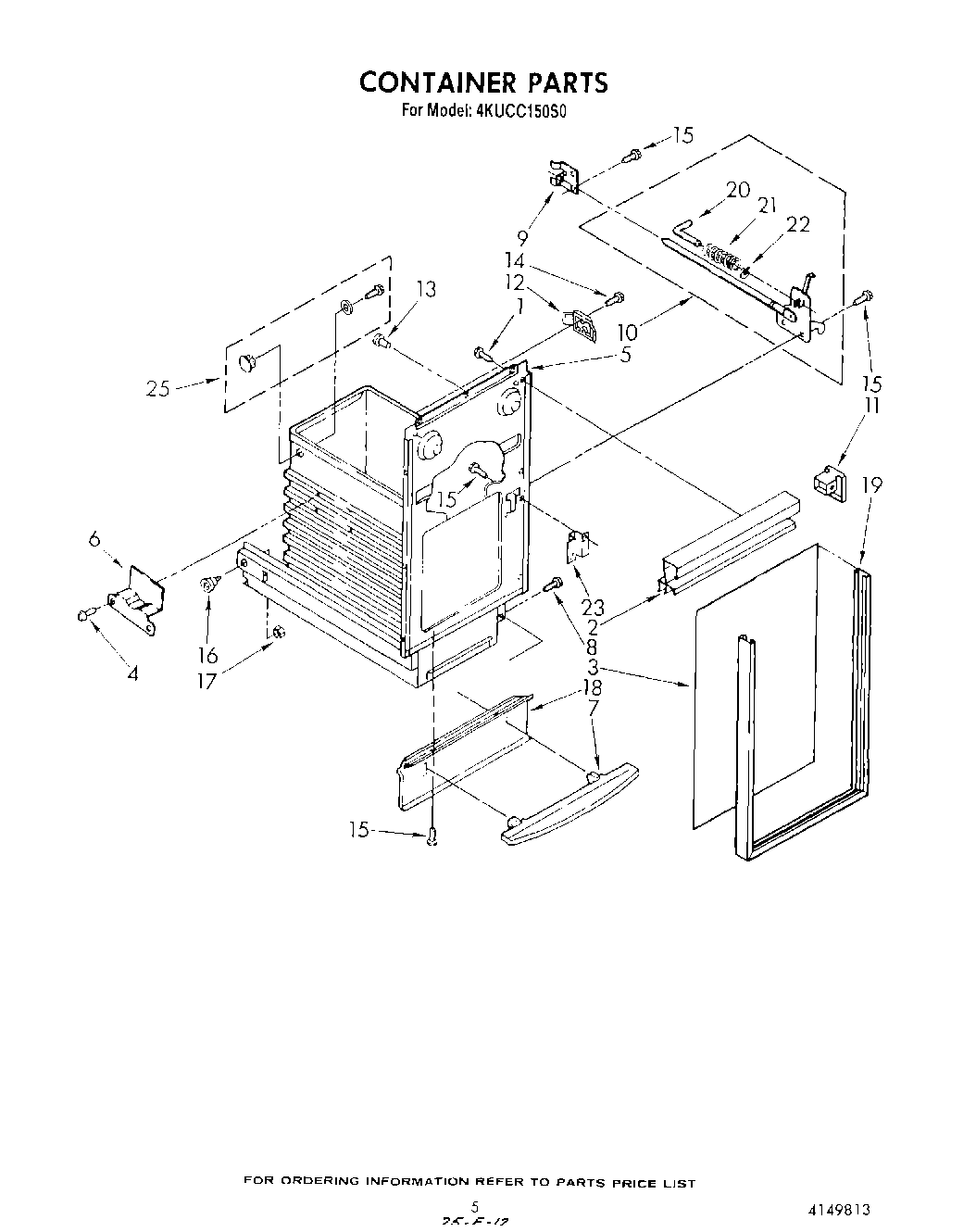

4KUCC150S0 05 – CONTAINER

Products

Position	Product
2	Handle, Container
3	Panel, Container Front (Almond & Harvest Gold)
3	Panel, Container Front (Black & White)
3	Panel, Container Front (Platinum & Toast)
5	Container Assembly
6	Cam, Spray Actuator (2)
7	882657 Whirlpool Compactor Foot Pedal
8	WP780263 Whirlpool Compactor Screw
9	WP776395 Whirlpool Compactor Guide
10	675379 Whirlpool Compactor Drawer Latch
11	Cap, Handle R.H.
11	Cap, Handle L.H.
12	9871125 Whirlpool Compactor Actuator
13	Bumper, Container (2)
14	Screw (2)
15	WP489069 Whirlpool Compactor Screw
16	WP9871602 Whirlpool Compactor Bearing
17	WP776356 Whirlpool Compactor Nut
18	WP777328 Whirlpool Compactor Guard
19	Trim, Container (Front)
20	Pin
21	775736 Whirlpool Compactor Spring
22	Ring, “E“
23	775665 Whirlpool Compactor Plate Latch
25	Retainer, Bag (Contains 4 Each)
