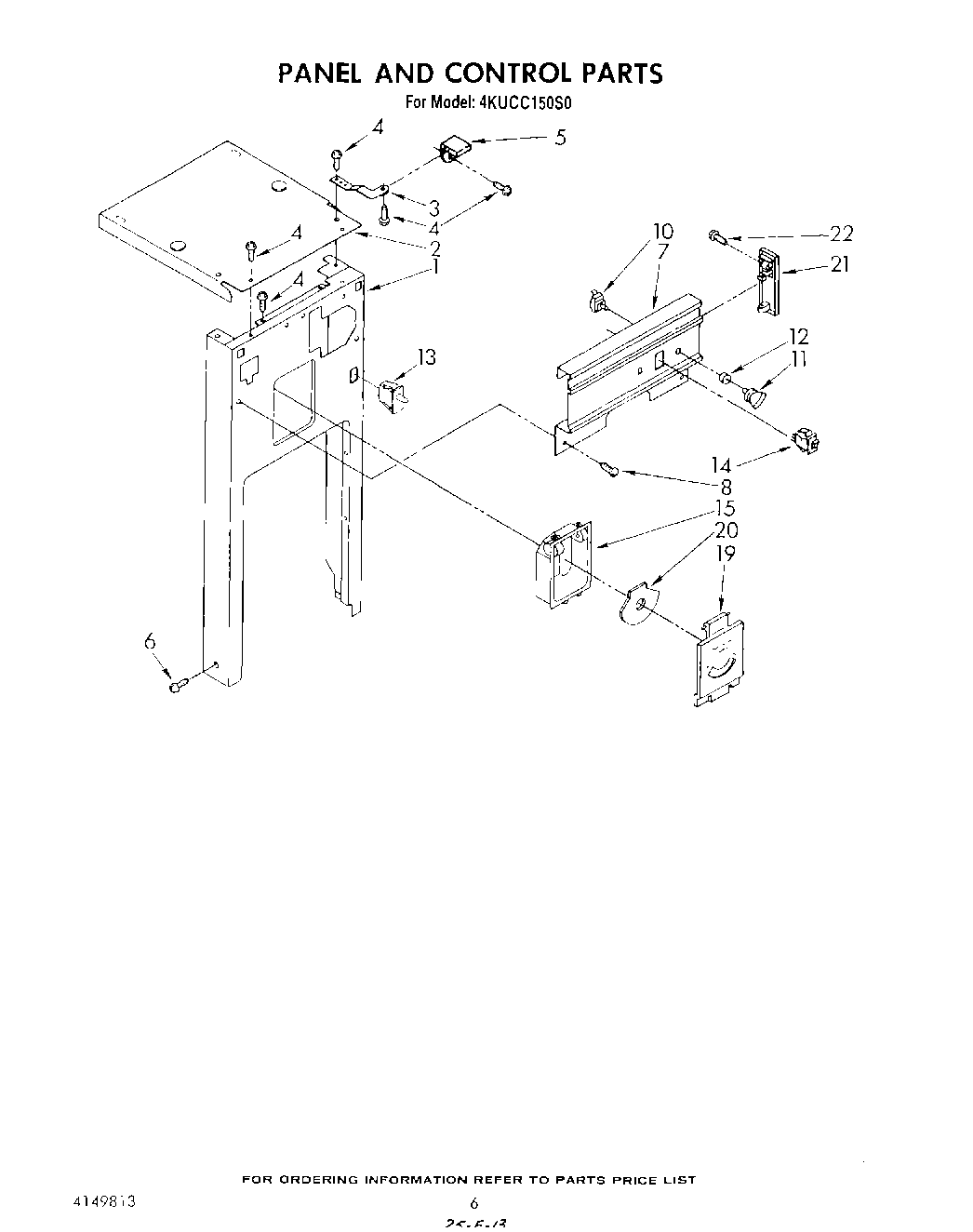

4KUCC150S0 06 – PANEL AND CONTROL

Products

PositionProduct
1Panel, Front Frame
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
4WP302868 Whirlpool Screw
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489069 Whirlpool Compactor Screw
7escutcheon, control
8Screw, 6-20 x 3/8 (2)
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11776594 Whirlpool Power Switch Knob
12WP777383 Whirlpool Compactor Nut
13Switch, Drawer Tilt
14WP4314961 Whirlpool Lite Switch
15Compartment, Air Flow
19Cover, Air Flow
20Dail, Air Flow
21End Cap, Escutcheon R.H.
21End Cap, Escutcheon (L.H.)
