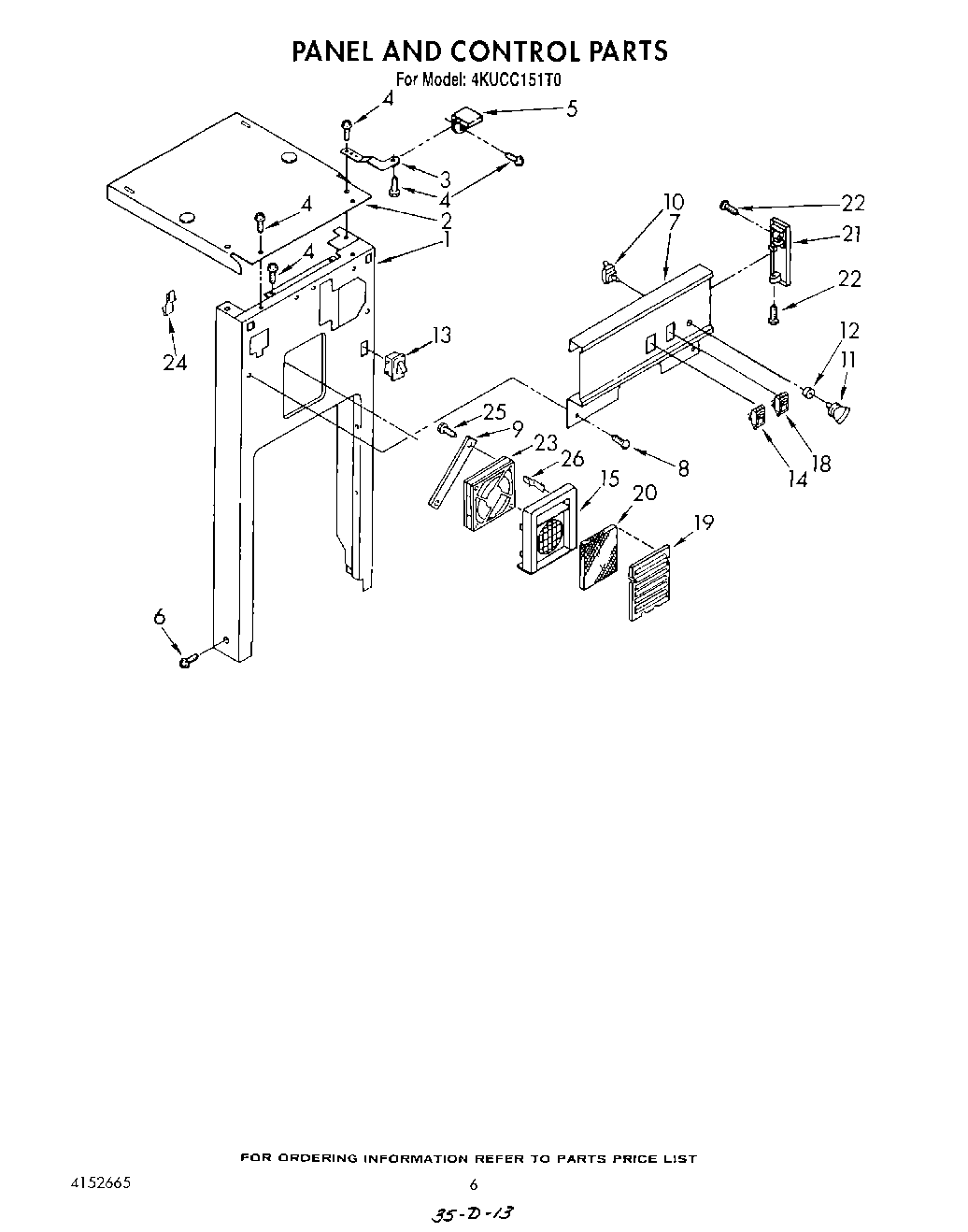

4KUCC151T0 06 – PANEL AND CONTROL

Products

PositionProduct
1Panel, Front Frame
2Cover, Top
3W11729437 Whirlpool Retaining Bracket
4WP302868 Whirlpool Screw
5WP780239 Whirlpool Compactor Bracket Retainer
6WP489069 Whirlpool Compactor Screw
7Escutcheon, Control
8Screw, 6-20 x 3/8 (2)
94152703 Whirlpool Fan Strap
10675382 Whirlpool Trash Compactor On Off Start Top Limit Switch
11776594 Whirlpool Power Switch Knob
12WP777383 Whirlpool Compactor Nut
13WP4387911 Whirlpool Refrigerator Switch
14WP4314961 Whirlpool Lite Switch
159871893 Whirlpool Compactor Fan Filter
19Cover, Air Freshener (Black)
20WP4151750 Whirlpool Charcoal Air Filter
21End Cap, Escutcheon (R.H.)
21End Cap, Escutcheon (L.H.)
25WP3351614 Whirlpool Screw
264151897 Whirlpool Compactor Clip
