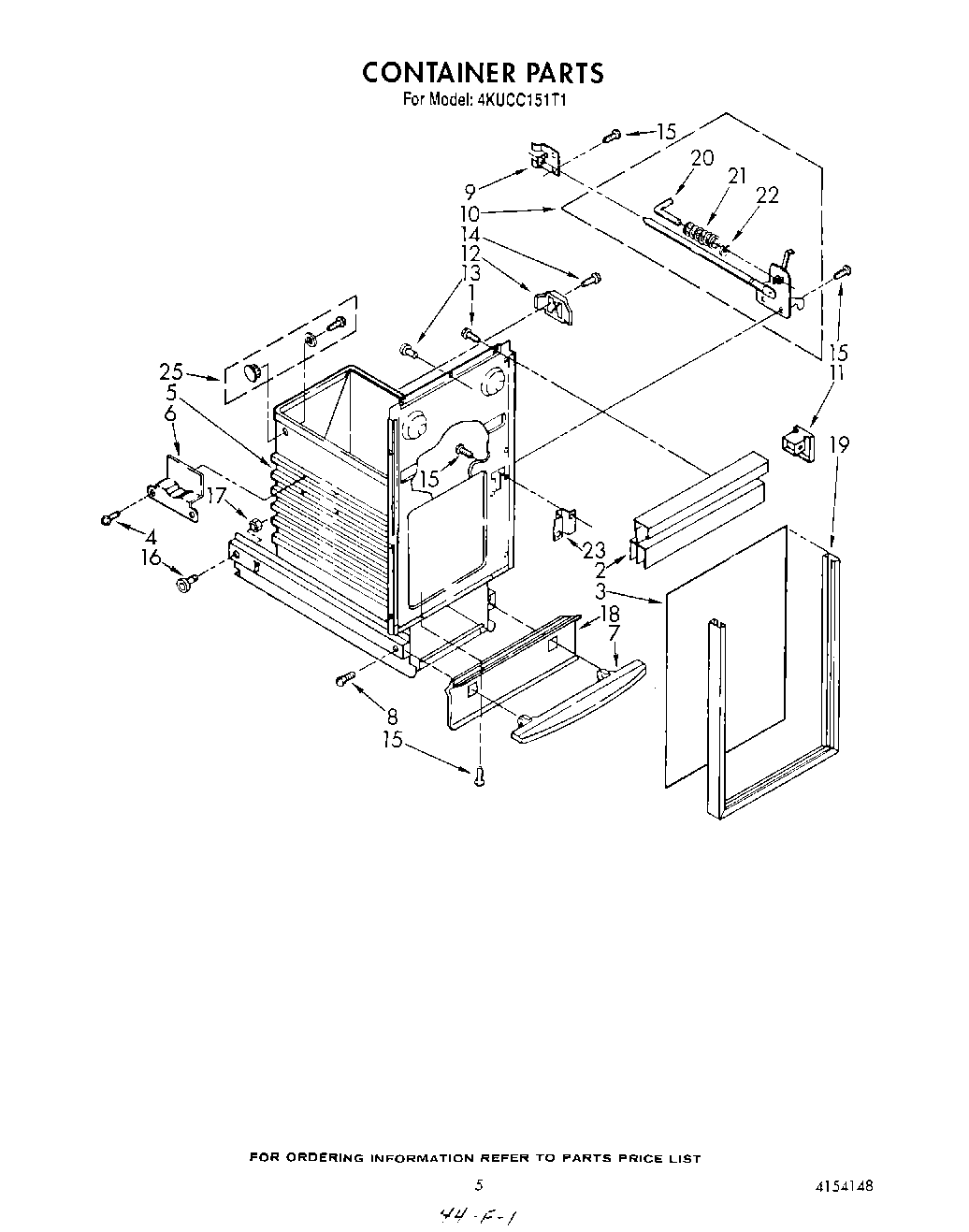

4KUCC151T1 05 – CONTAINERadmin2025-04-26T13:03:45+00:004KUCC151T1 05 – CONTAINER
Products
| Position | Product |
|---|
| 2 | Handle, Container |
| 3 | Panel, Container (White & Black) |
| 3 | Panel, Container Front (Almond & Harvest Gold) |
| 5 | Container Assembly |
| 6 | Cam, Spray Actuator (2) |
| 7 | W11679165 Whirlpool Foot Pedal |
| 8 | WP780263 Whirlpool Compactor Screw |
| 9 | WP776395 Whirlpool Compactor Guide |
| 10 | 675379 Whirlpool Compactor Drawer Latch |
| 11 | End Cap, Handle (R.H.) |
| 11 | End Cap, Handle (L.H.) |
| 12 | 9871125 Whirlpool Compactor Actuator |
| 13 | Bumper, Container (2) |
| 14 | Screw (2) |
| 15 | WP489069 Whirlpool Compactor Screw |
| 16 | WP9871602 Whirlpool Compactor Bearing |
| 17 | WP776356 Whirlpool Compactor Nut |
| 18 | WP777328 Whirlpool Compactor Guard |
| 19 | Trim, Container (Front) |
| 20 | Pin |
| 21 | 775736 Whirlpool Compactor Spring |
| 22 | Ring, ``E`` |
| 23 | 775665 Whirlpool Compactor Plate Latch |
| 25 | RETAINER, BAG |
