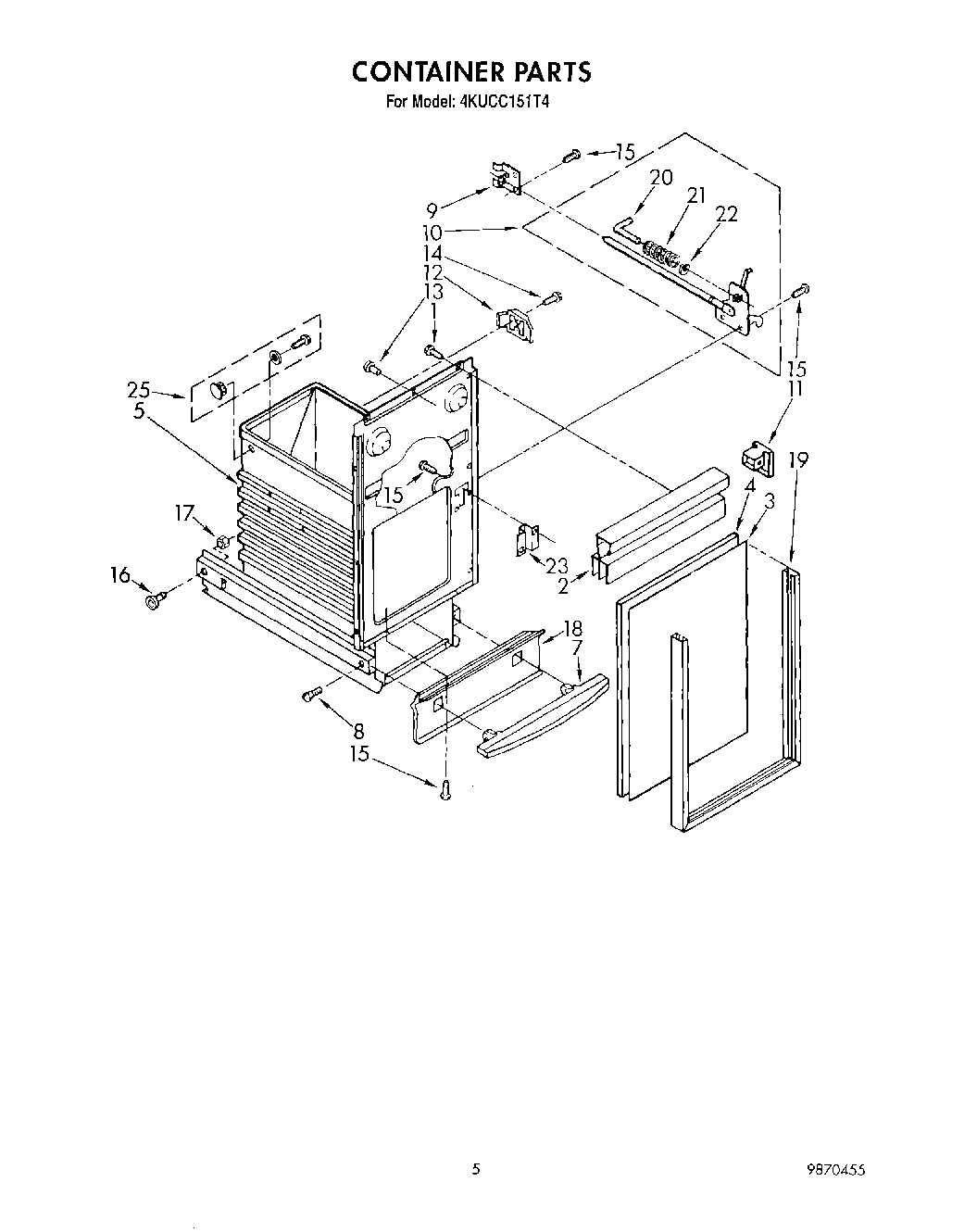

4KUCC151T4 04 – CONTAINER

4KUCC151T4 04 – CONTAINER

Written by

in

4KUCC151T4 04 – CONTAINER

Products

PositionProduct
1WPW10139210 Whirlpool Screw
2Handle, Container
3Panel, Container Front (Almond & Harvest Gold)
3Panel, Container (White & Black)
4Panel, Spacer
5Container Assembly
7W11679165 Whirlpool Foot Pedal
8WP780263 Whirlpool Compactor Screw
9WP776395 Whirlpool Compactor Guide
10675379 Whirlpool Compactor Drawer Latch
11End Cap, Handle (R.H.)
11End Cap, Handle (L.H.)
129871125 Whirlpool Compactor Actuator
13Bumper, Container (2)
14Screw (2)
15WP489069 Whirlpool Compactor Screw
16WP9871602 Whirlpool Compactor Bearing
17WP776356 Whirlpool Compactor Nut
18WP777328 Whirlpool Compactor Guard
19Trim, Container (Front)
20Pin
21775736 Whirlpool Compactor Spring
22Ring, “E“
23775665 Whirlpool Compactor Plate Latch
25RETAINER, BAG
