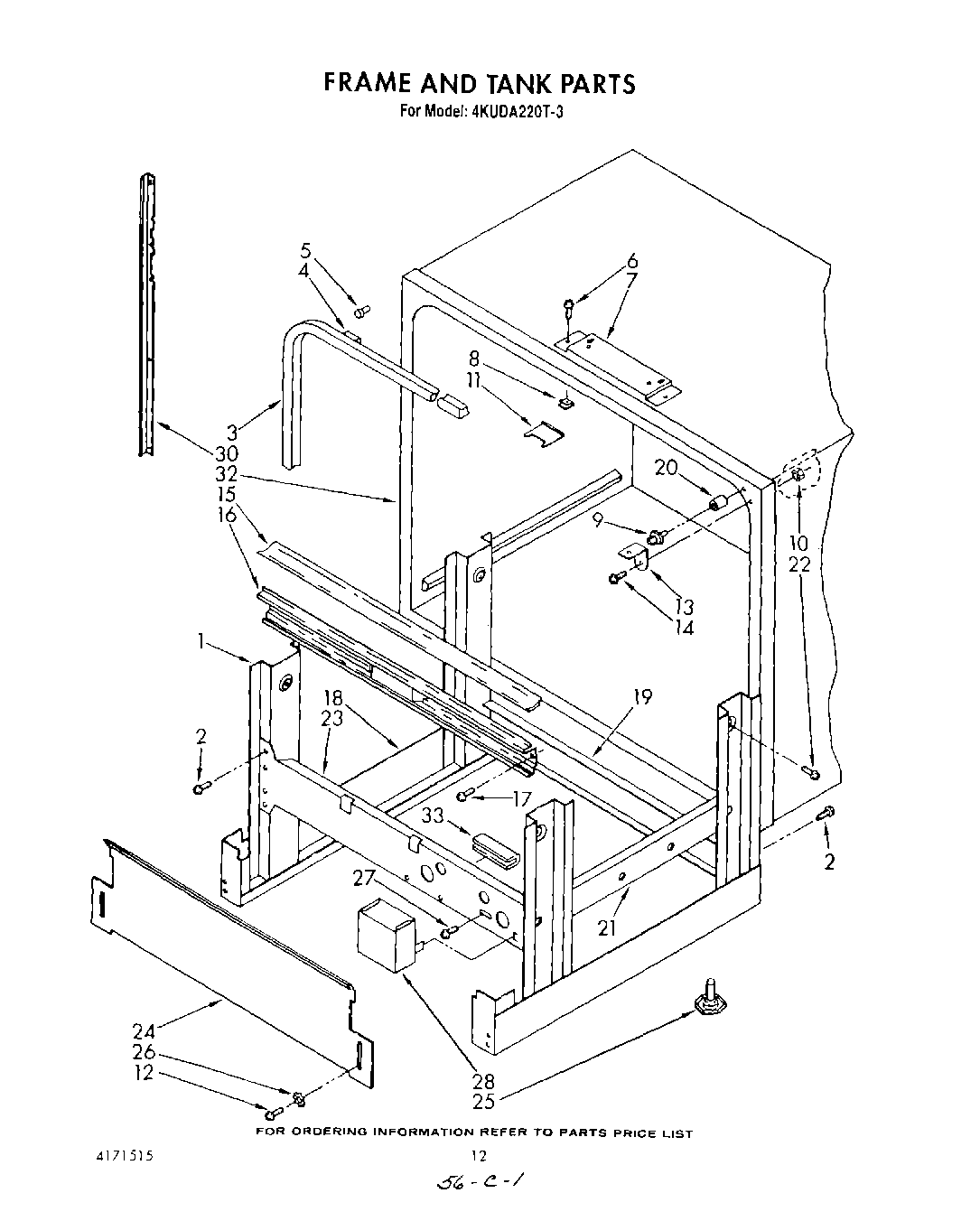

4KUDA220T3 10 – FRAME AND TANK

Products

Position	Product
1	Short Frame Assembly (Includes Items 2, 18, 19, 21, & 23)
3	Door Seal Assembly (Includes Item 4)
4	Clip, Seal
5	Bumper, Door
6	WP693304 Whirlpool Screw
7	Protector, Upper Water Inlet
8	Speed Nut
9	Actuator, Interlock Switch
10	Lock Nut
11	Keeper, Latch
12	Screw, 10-16 x 3/8
13	WP9741251 Whirlpool Mounting Bracket
15	Channel, Evaporation
16	Support, Evaporation Channel
17	Screw, 10-32 X 1/2
18	Frame Assembly (L.H.)
19	Cross Frame, Rear
20	Sleeve, Actuator
21	Frame Assembly (R.H.)
22	Screw (2)
23	Cross Frame, Front
24	Kick Board
25	Foot, Leveling (4)
26	Lock Washer No.10 Ext. Shake- proof
27	Screw
28	SCREW
28	Enclosure, Elec. Supply
30	Trim, Tank (Screw, 10-16 X 1/2)
30	Trim, Tank (R.H.)
30	Trim, Tank (L.H.)
32	Tank (Serviced Complete with Frame)
33	Protector, Edge
