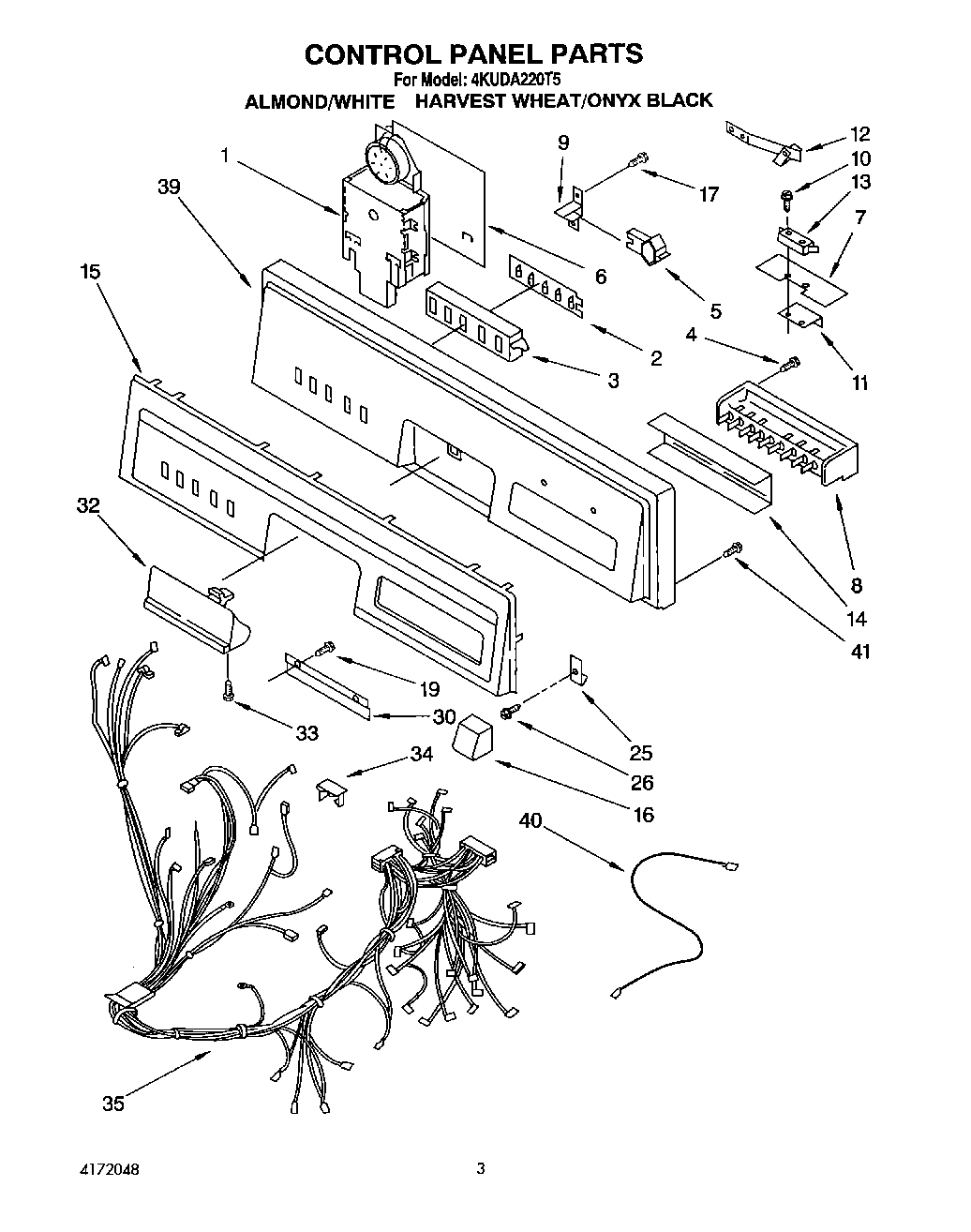

4KUDA220T5 03 – CONTROL PANEL, LIT/OPTIONALadmin2025-04-26T13:03:14+00:004KUDA220T5 03 – CONTROL PANEL, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 350930 Whirlpool White Spray Paint |
| Paint, Spray (13 Oz.) (Platinum) |
| Enamal, Toast (1 Qt. Uncut) |
| Platinum (Uncut) |
| WPL 72112 |
| 350942 Whirlpool Spray Paint |
| WPL LIT9740129 |
| 285006 Whirlpool Spray |
| W10841140 Whirlpool Dishwasher Adhesive |
| WPL LIT9740132 |
| 675679 Whirlpool Dishwasher White Tip Tines |
| Toast |
| Golden Harvest (Uncut) |
| 350956 Whirlpool Spray Assembly |
| 72017 Whirlpool Appliance Touch-Up Paint White |
| 799344 Whirlpool Refrigerator Paint |
| WP72107 Whirlpool Touchup |
| Leveler (Thinner) |
| Almond (Uncut) |
| WPL LIT9740137 |
| 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 72113 Whirlpool Touch-Up Paint |
| Golden Harvest |
| Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation) |
| 1 | Timer Assembly (115 V., 60 Hz.) |
| 2 | Board, Light |
| 3 | Light Cover |
| 4 | Screw, 6-32 X 3/8 |
| 5 | Spring, Switch |
| 6 | Barrier, Timer |
| 7 | Insulator, Door Switch |
| 8 | Switch, Program |
| 9 | Guide, Cancel Spring |
| 10 | W11596033 Whirlpool Microwave Screw |
| 11 | Bracket, Door Switch |
| 12 | Spring, Interlock |
| 13 | Switch, Interlock |
| 14 | Bracket, Program Switch |
| 15 | Insert, Control Panel (Black) |
| 16 | Pushbutton (8) |
| 17 | WP488921 Whirlpool Refrigerator Screw |
| 19 | Screw |
| 25 | Clip, Grounding (Front Panel) |
| 26 | SCREW |
| 30 | Bracket, Support |
| 32 | Handle, Latch |
| 33 | Screw, 10-32 x 5/8 |
| 34 | Clip, Harness Guide |
| 35 | WPL 4159349 |
| 35 | Wiring Harness (Main) |
| 39 | Control Panel (Includes Item 15) |
| 39 | Control Panel (Pushnut, Membrane) |
| 40 | Lead, Program Switch |
