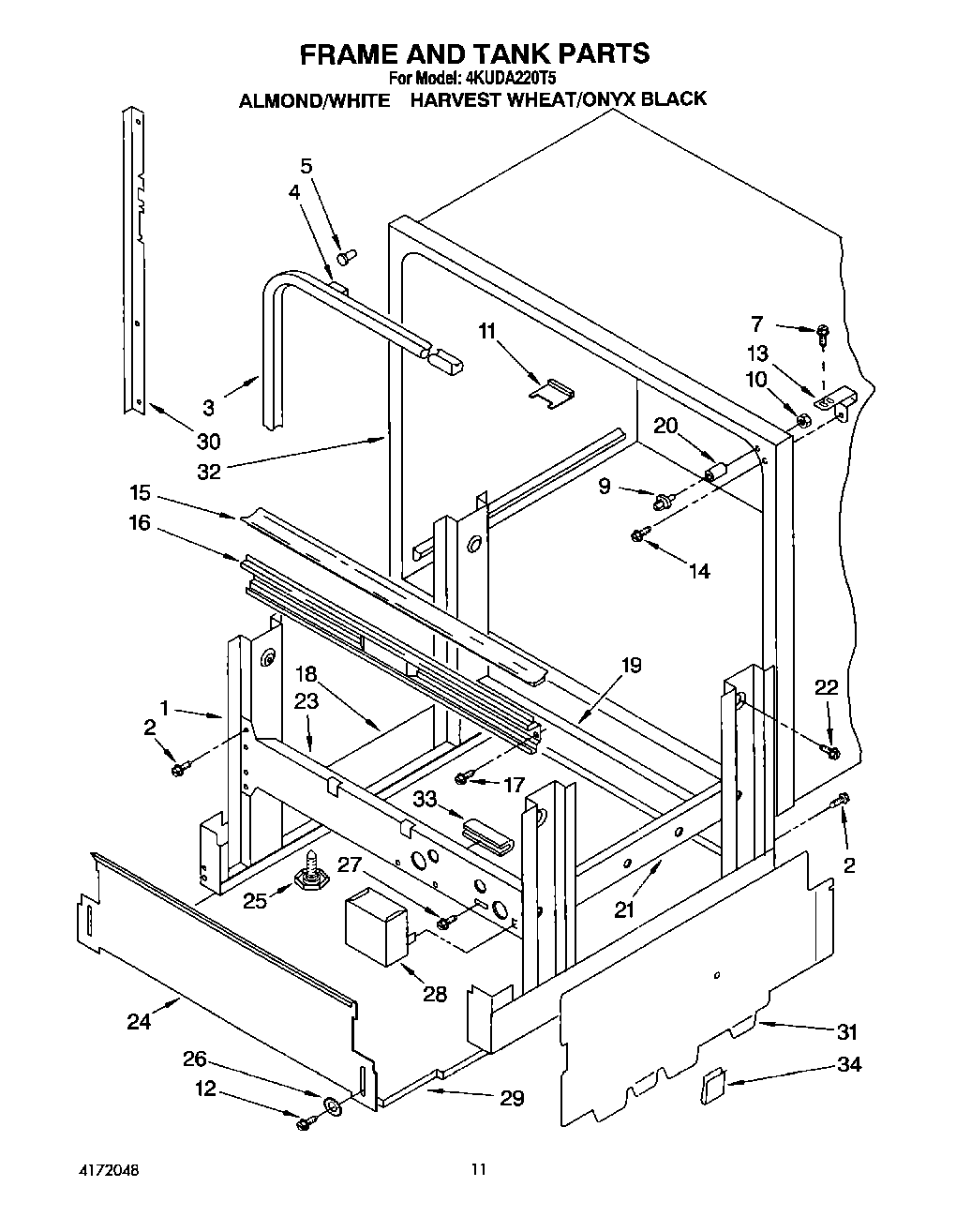

4KUDA220T5 09 – FRAME AND TANK

Products

Position	Product
1	Short Frame Assembly (Includes Items 2, 18, 19, 21, & 23)
2	WP693304 Whirlpool Screw
3	Door Seal Assembly (Includes Item 4)
4	Clip, Seal
5	Bumper, Door
7	Screw, 8-32 x 1/2 (Black Model)
9	Actuator, Interlock Switch
10	Lock Nut
11	Keeper, Latch
12	Screw, 10-16 x 3/8
13	WP9741251 Whirlpool Mounting Bracket
14	Screw, 10-16 x 1/2
15	Channel, Evaporation
16	Support, Evaporation Channel
17	Screw, 10-32 X 1/2
18	Frame Assembly (L.H.)
19	Cross Frame, Rear
20	Sleeve, Actuator
21	Frame Assembly (R.H.)
22	Screw (2)
23	Cross Frame, Front
24	Kick Board ((Black))
25	Foot, Leveling (4)
26	Lock Washer No.10 Ext. Shake- proof
27	Screw
28	SCREW
28	Enclosure, Elec. Supply
29	Panel, Bottom
30	Trim, Tank (R.H.)
30	Trim, Tank (L.H.)
30	Screw, 10-24 X 1/2
31	Panel, Side (R.H.)
31	Panel, Side (L.H.)
32	Tank (Serviced Complete with Frame)
33	Protector, Edge
34	Clip, Speed (8)
