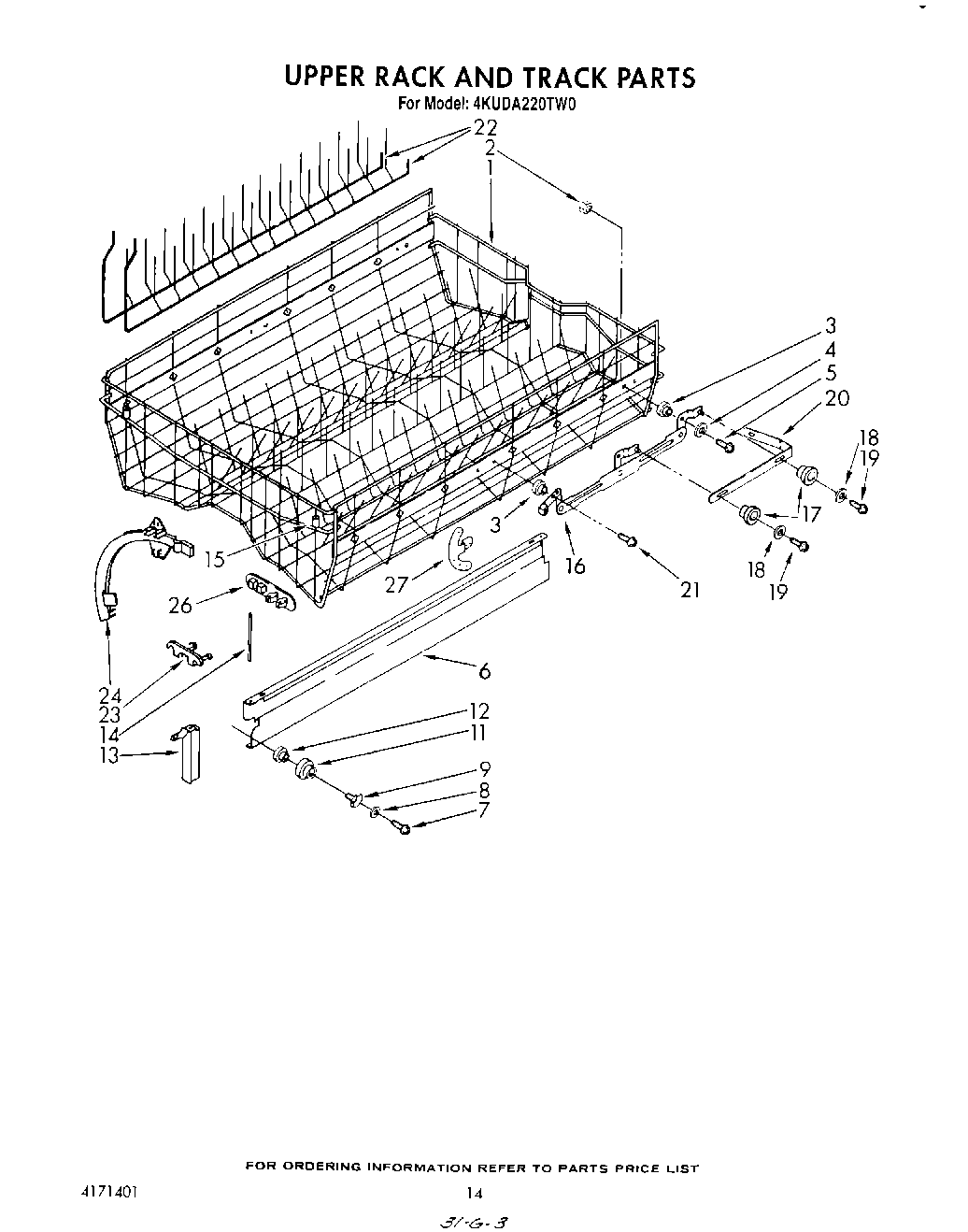

4KUDA220TW0 11 – UPPER RACK AND TRACK

Products

Position	Product
1	Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
2	Nut, Roller
3	Bearing & Spacer, Rack Roller
4	Washer
6	Track, Rack
7	Screw, 10-16 X 3/8
8	Gasket, Rack Stud
9	Stud, Rack Roller
11	Roller, Rack Track
12	Bushing, Rack Roller
13	Bumper, Rack Track
14	Stud, Bumper Retaining
15	Bumper, Upper Rack
16	Track, Adjustable (R.H.)
16	Track, Adjustable (L.H.)
17	Roller, Upper Rack Track
18	Washer
19	Screw, 8-32 X 1/4 (4)
20	Lift, Receiver (L.H.)
20	Lift, Receiver (R.H.)
21	Screw, 10-16 X 5/8
22	Partition
23	Clip, Partition (3)
24	Quadrant, Divider (R.H.)
24	Quadrant, Divider (L.H.)
26	Clip, Wash Arm Guard
27	Rackstop (R.H.)
27	Rackstop (L.H.)
