4KUDA220TW1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

4KUDA220TW1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Written by

in

4KUDA220TW1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
WPL LIT9740137
285006 Whirlpool Spray
WPL LIT9740129
675679 Whirlpool Dishwasher White Tip Tines
WPL LIT9740132
WPL LIT4171416
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
W10841140 Whirlpool Dishwasher Adhesive
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL LIT9740090
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)

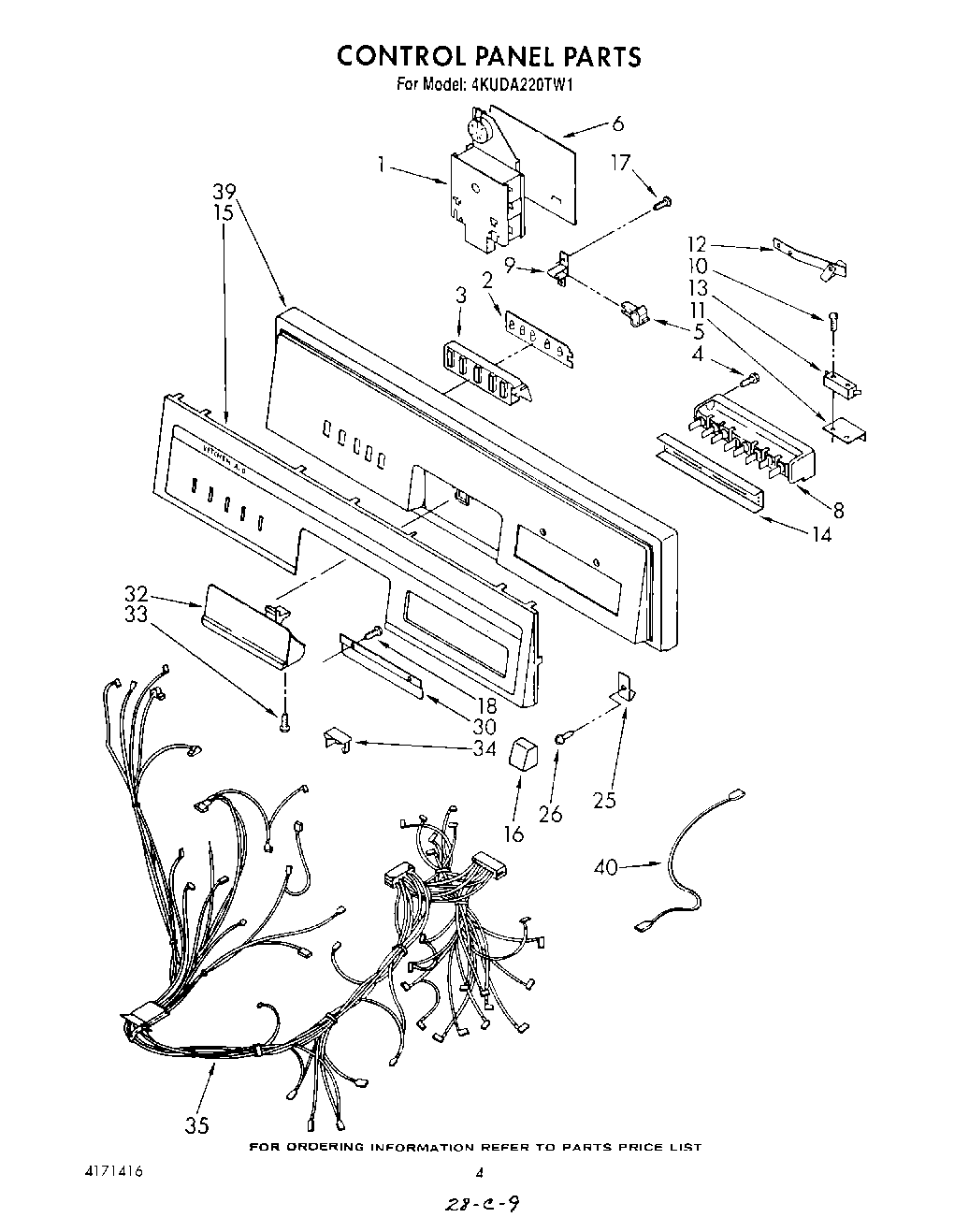

1Timer Assembly (115 V., 60 Hz.)
2Board, Light
3Light Cover
4Screw, 6-32 X 3/8
5Spring, Switch
6Barrier, Timer
8Switch, Program
9Guide, Cancel Spring
10Screw (2)
11Bracket, Door Switch
12Spring, Interlock
13Switch, Interlock
14Bracket, Program Switch
15Insert, Control Panel (White)
16Pushbutton (8)
17WP488921 Whirlpool Refrigerator Screw
18Screw
25Clip, Grounding (Front Panel)
26SCREW
30Bracket, Support
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35WPL 4159349
35Wiring Harness (Main)
39Control Panel (Pushnut, Membrane)
39Control Panel (Includes Item 15)
40Lead, Program Switch
