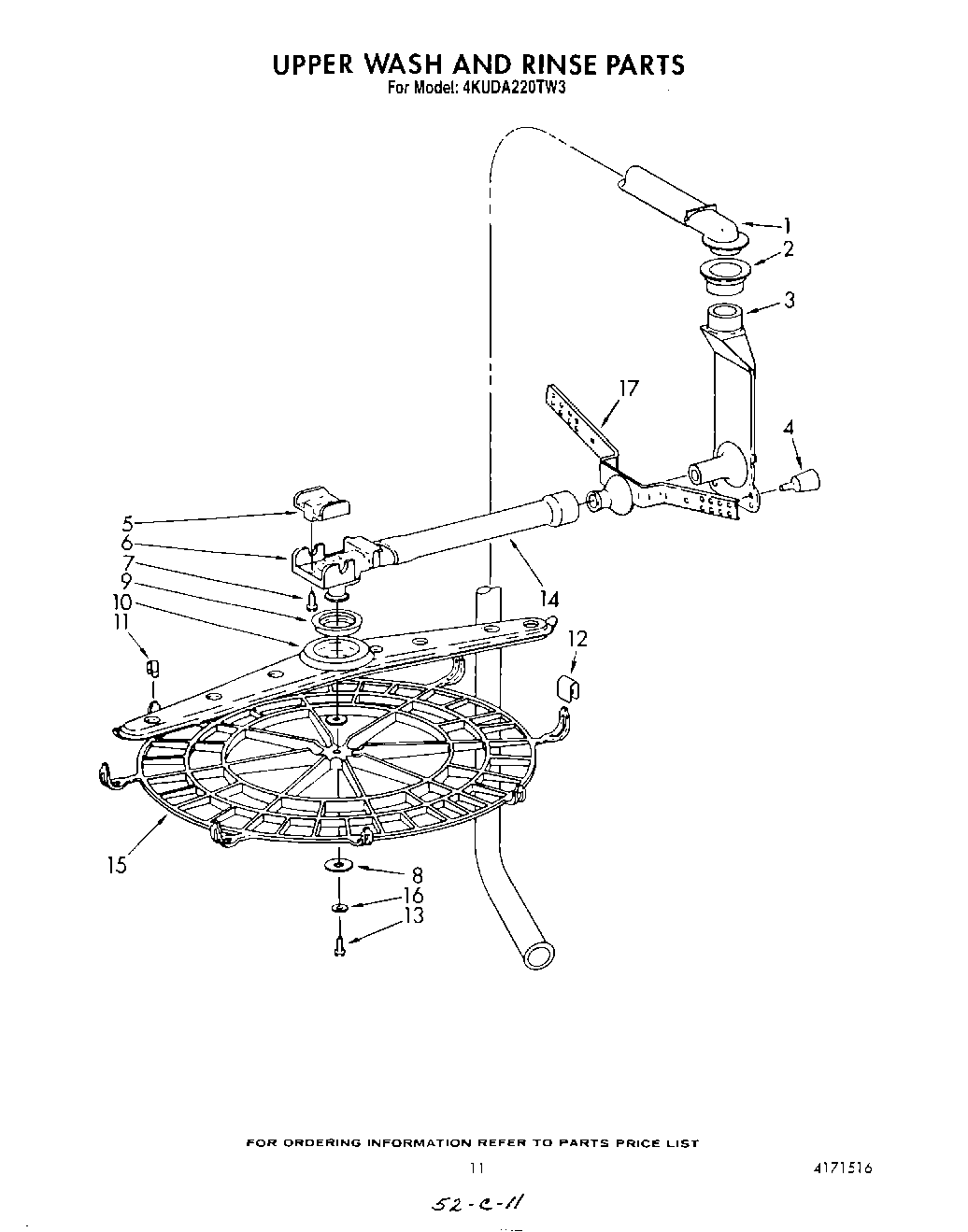

4KUDA220TW3 09 – UPPER WASH AND RINSEadmin2025-04-26T13:01:09+00:004KUDA220TW3 09 – UPPER WASH AND RINSE
Products
| Position | Product |
|---|
| 1 | Tube & Connector Assembly |
| 2 | Connector, Vertical Conduit |
| 3 | Conduit, Vertical |
| 4 | Retainer, Conduit |
| 5 | Retainer, Manifold |
| 6 | Manifold, Upper Arm |
| 8 | Bearing, Arm (Bottom) |
| 9 | Bearing, Arm (Top) |
| 10 | Wash/Rinse Arm Assembly |
| 11 | Clip, Arm Guard |
| 12 | Clip, Wash Arm Guard |
| 13 | Screw |
| 14 | Tube (Manifold to Receiver) |
| 15 | Guard, Arm |
| 16 | Washer |
| 17 | Arm, Receiver |
