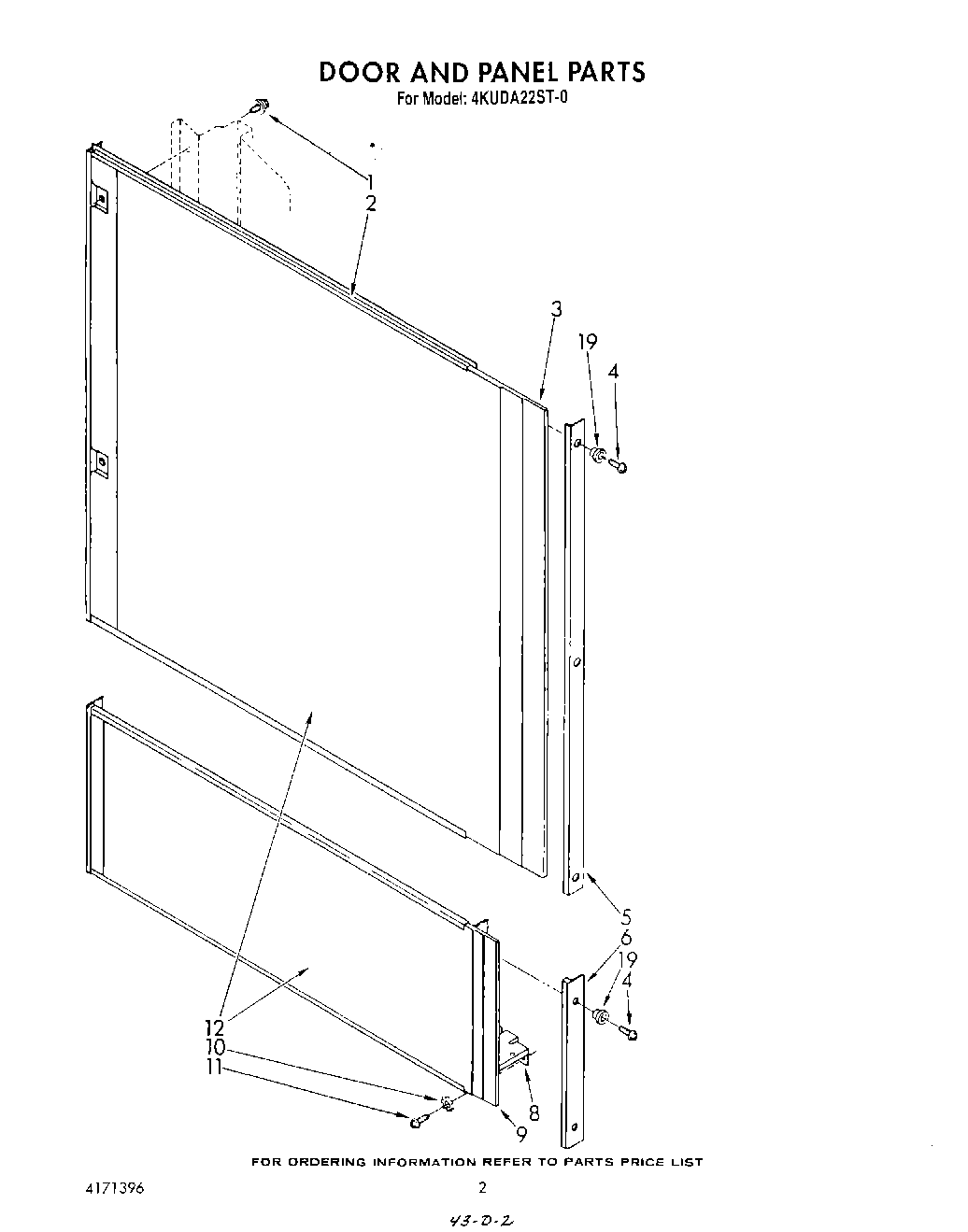

4KUDA22ST0 02 – DOOR AND PANEL

Products

Position	Product
1	Screw
2	Upper Mounting Panel Assembly
3	Filler (Upper Panel)
4	Screw, 6 X 1/4
5	Side Trim (Upper Panel)
6	Side Trim (Lower Panel)
8	Lower Mounting Panel Assembly
9	Filler (Lower Panel)
10	Lock Washer No.10 Ext. Shake- proof
11	WP693304 Whirlpool Screw
12	Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Onyx Black)
12	Panel Insert Kits (OPTIONAL KITS) (Almond/White)
12	Panel Insert Kits (OPTIONAL KITS) (Stainless Steel)
19	Grommet, Panel
