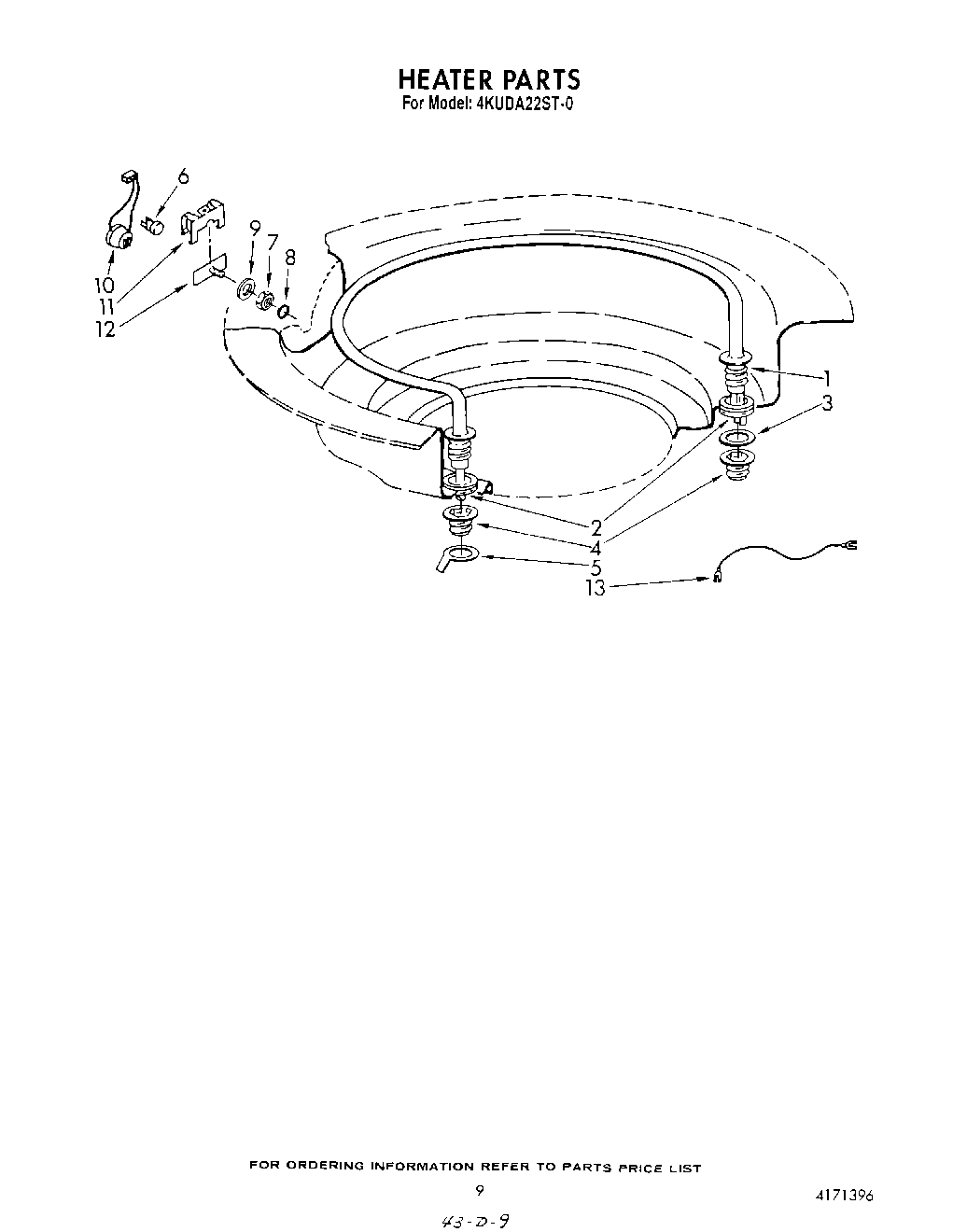

4KUDA22ST0 07 – HEATER

4KUDA22ST0 07 – HEATER

Written by

in

4KUDA22ST0 07 – HEATER

Products

PositionProduct
1Element, Heater (Alt.)
1Element, Heater (Alt.)
1Element, Heater
2Grommet, Heater Element
3Washer, Heater Element
4Nut, Heater Element
5Terminal, Ground
6Protector, Thermostat
7Nut, Heat Sensing
8“O“ Ring
9Gasket
10Thermistor Assembly
11Bracket, Thermostat
12Bracket, Mounting
13Lead
