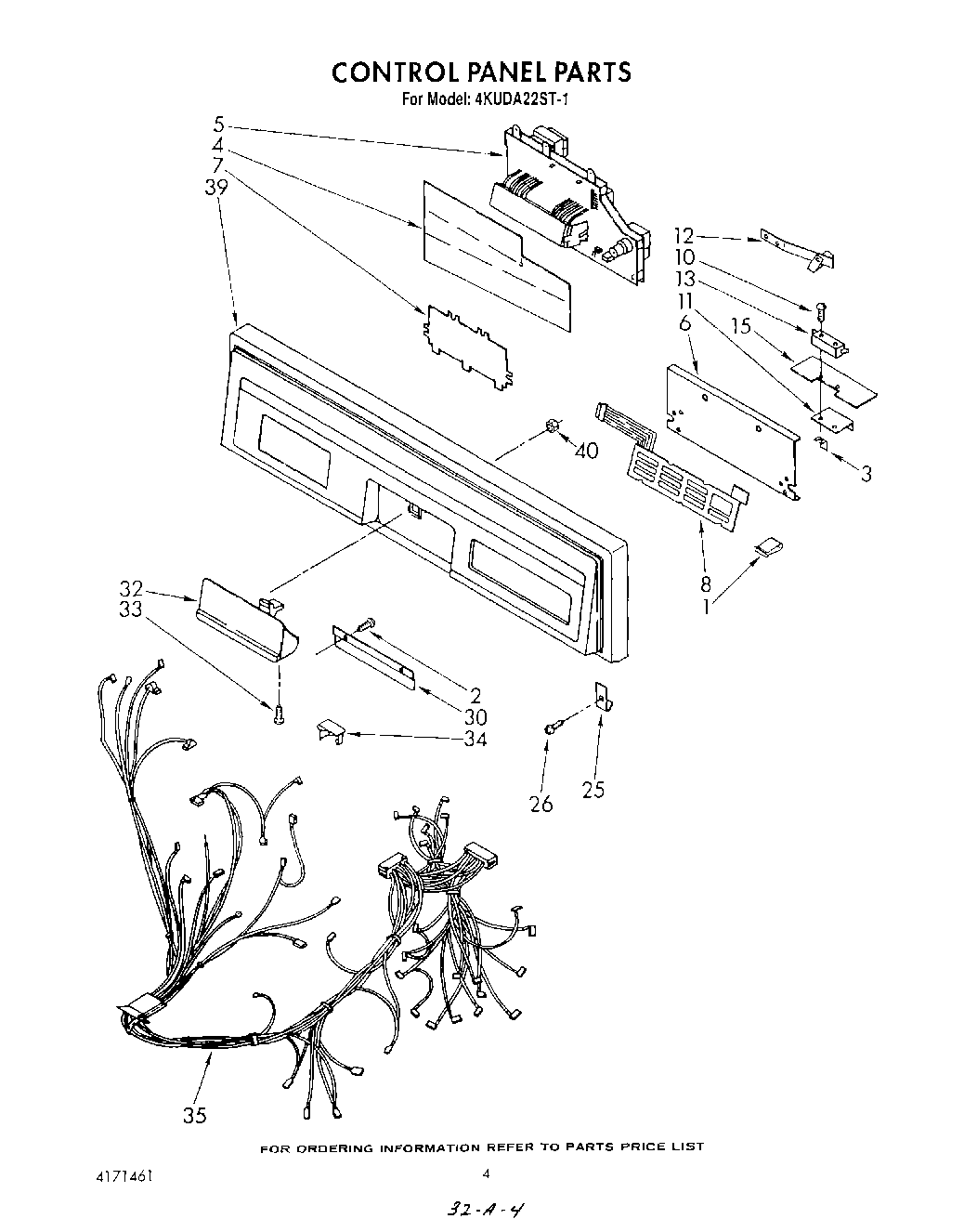

4KUDA22ST1 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT9740138
	Platinum (Uncut)
	WPL 72112
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	675679 Whirlpool Dishwasher White Tip Tines
	Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
	W10841140 Whirlpool Dishwasher Adhesive
	WPL LIT4171461
	WPL LIT9740132
	WPL LIT9740091
	WPL LIT9740130
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350930 Whirlpool White Spray Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
1	Clip, Grounding
2	Screw
3	Spacer, Interlock Bracket
4	Shield, Control
5	Electronic Control
6	Bracket, Membrane
7	Display Lens
8	Switch, Membrane
10	Screw (2)
11	Bracket, Door Switch
12	Spring, Interlock
13	Switch, Interlock
15	Insulator, Door Switch
25	Clip, Grounding (Front Panel)
26	SCREW
30	Bracket, Support
32	Handle, Latch
33	Screw, 10-32 x 5/8
34	Clip, Harness Guide
35	WPL 4159349
35	Wiring Harness (Main)
39	Control Panel
40	Pushnut, Membrane
