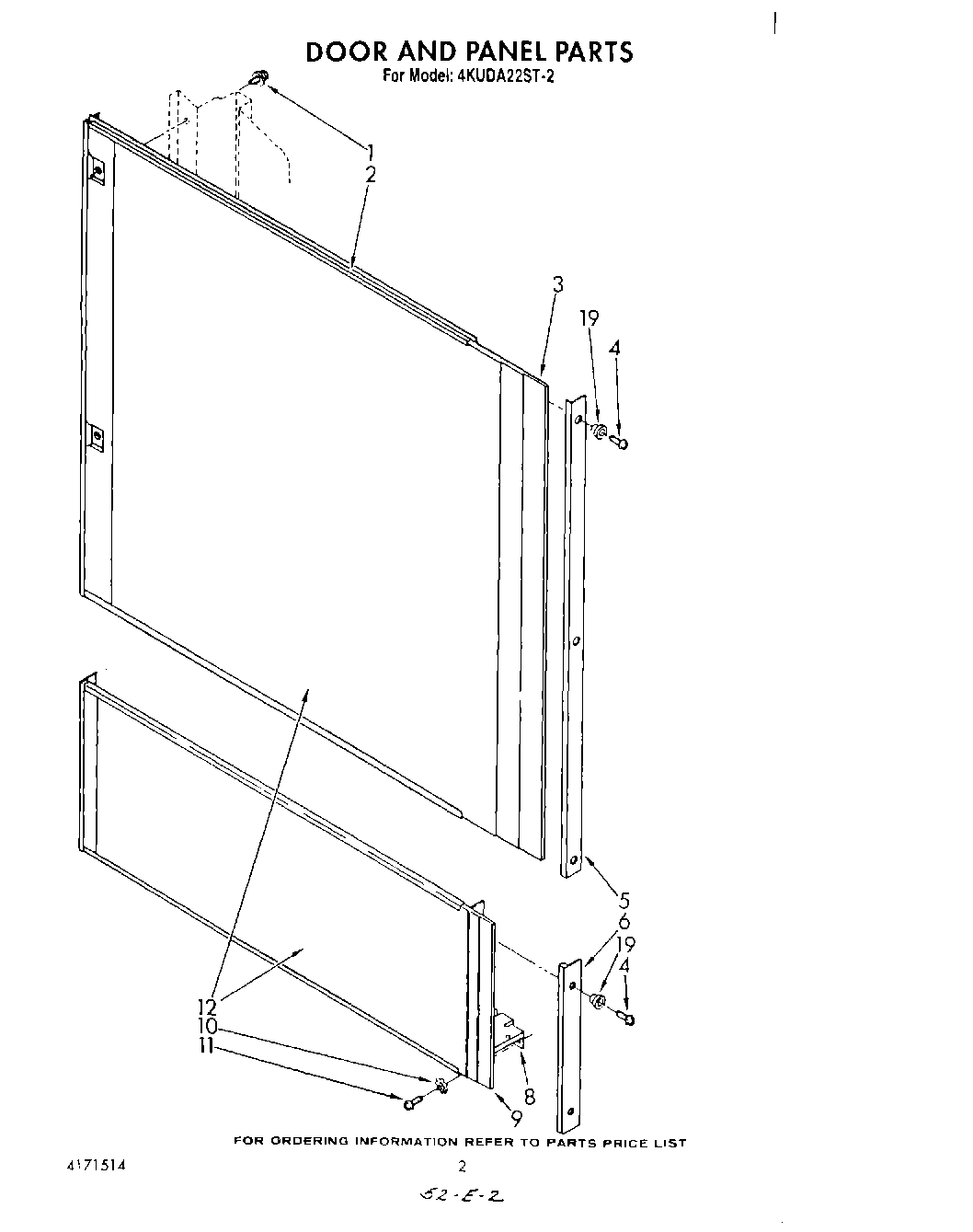

4KUDA22ST2 02 – DOOR AND PANEL

4KUDA22ST2 02 – DOOR AND PANEL

Written by

in

4KUDA22ST2 02 – DOOR AND PANEL

Products

PositionProduct
1Screw
2Upper Mounting Panel Assembly (Includes Lower Trim)
3Filler (Upper Panel)
4Screw, 6 X 1/4
5Side Trim (Upper Panel)
6Side Trim (Lower Panel)
8Lower Mounting Panel Assembly (Includes Upper & Lower Trim)
9Filler (Lower Panel)
10Lock Washer No.10 Ext. Shake- proof
11WP693304 Whirlpool Screw
12Panel Insert Kits (OPTIONAL KITS) (Harvest Gold/Onyx Black)
12Panel Insert Kits (OPTIONAL KITS) (Stainless Steel)
12Panel Insert Kits (OPTIONAL KITS) (Almond/White)
19Grommet, Panel
