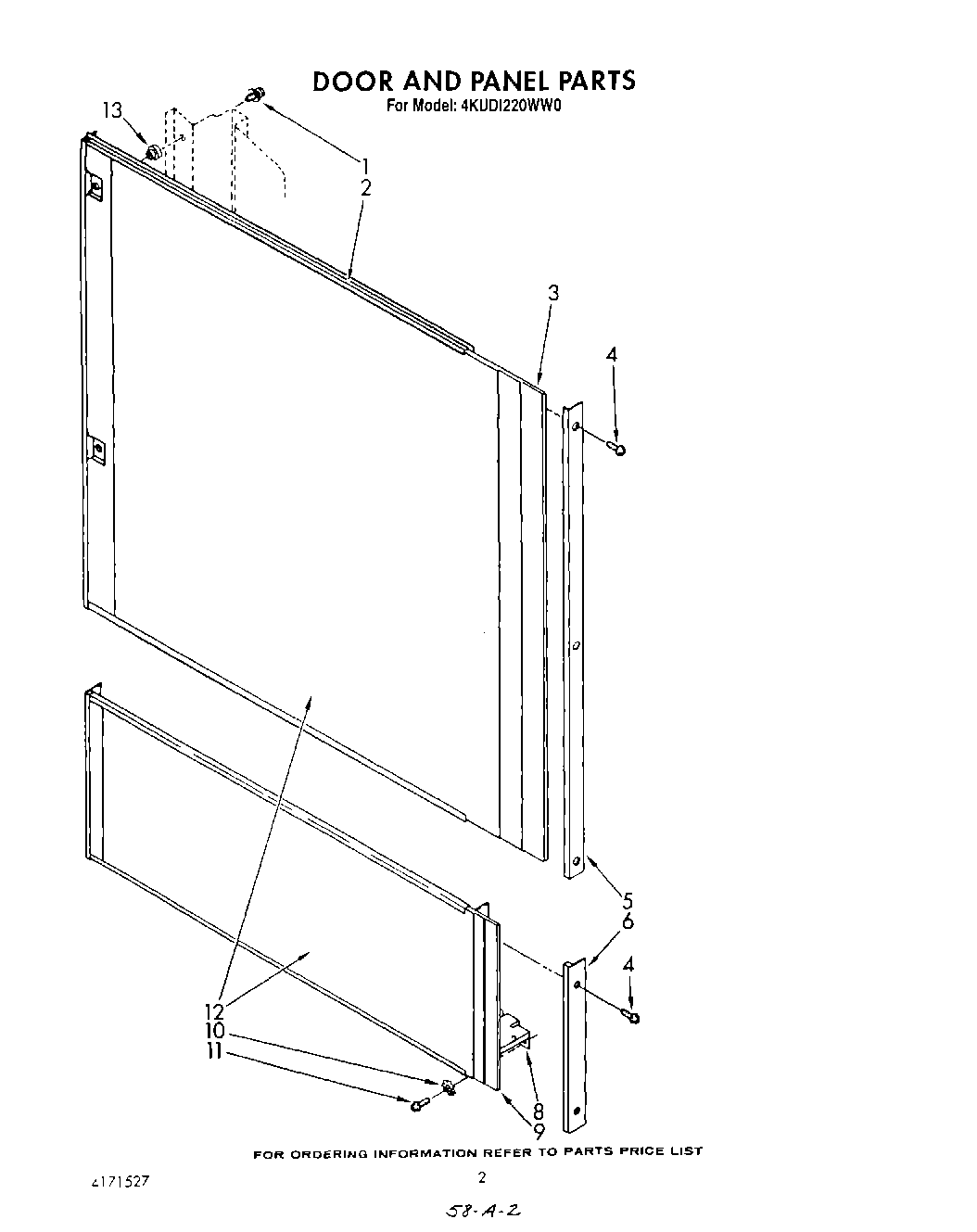

4KUDI220WW0 02 – DOOR AND PANEL

Products

PositionProduct
1Screw
2Upper Mounting Panel Assembly
3Filler (Upper Panel)
4Screw (White Model)
5Side Trim (Upper Panel)
6Side Trim (Lower Panel)
8Lower Mounting Panel Assembly
9Filler (Lower Panel)
10Lock Washer No.10 Ext. Shake- proof
11WP693304 Whirlpool Screw
12Panel Insert Kits (Harvest Gold/Onyx Black)
12Panel Insert Kits (Almond/Black)
12Panel Insert Kits (Sand/Onyx Black (Optional))
12Panel Insert Kits (Platinum/Toast (Optional))
12Panel Insert Kits (Stainless Steal (Optional))
12Panel Insert Kits (Almond/White)
12Panel Insert Kits (Fresh Avocado/Coffee (Optional))
12Panel Insert Kits (Silver/Onyx Black (Optional))
13Grommet, Panel
