4KUDP220T0 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
WPL LIT9740087
WPL LIT4171394
WPL LIT9740132
Vinyl Touch Up (Blue)
Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
Kit, Epoxy Patch (White)
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
Paint, Spray (13 Oz.) (Platinum)
Toast
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL LIT9740135
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
WPL LIT9740128
Golden Harvest
Golden Harvest (Uncut)

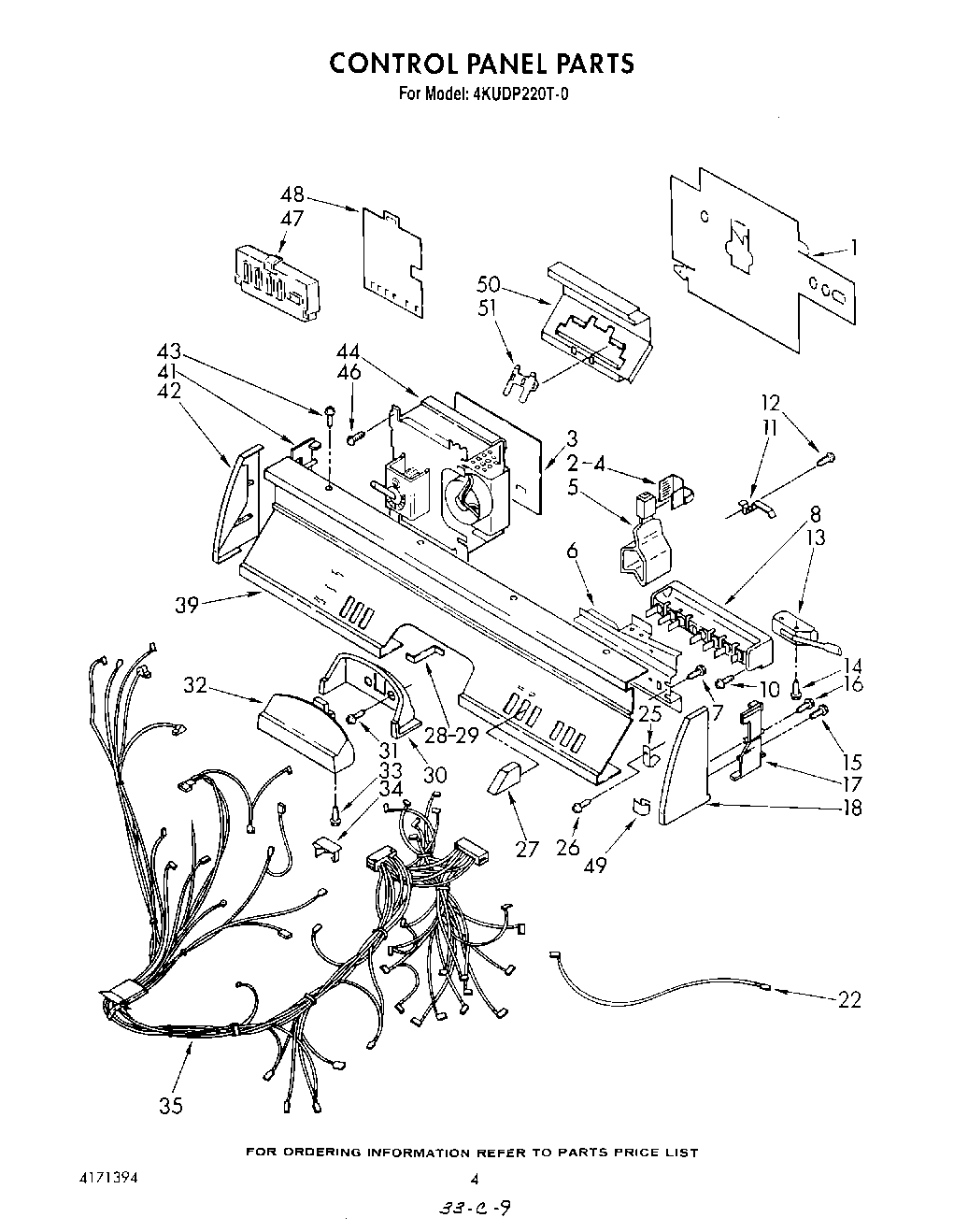

1Insulator, Latch
2Anchor, Cancel Spring
3Barrier, Timer
4Rivet
5Spring, Switch Cancel
6Bracket, Program Switch
8Switch, Program
10Screw, 10-16 X 5/8
11Spring, Door Interlock
12WP693304 Whirlpool Screw
13Switch, Interlock
14Screw (2)
15Screw & Washer Assy
16WP681249 Whirlpool Screw Assembly
17Spacer, End Cap (R.H.)
18End Cap (R.H.)
22Lead, Program Switch
25Clip, Grounding (Front Panel)
27Button, Program Switch (7)
28Bracket, Panel Reinforcement
29Screw, 6-20 x 3/8
30Trim, Handle
31WP912618 Whirlpool Dishwasher Screw
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35WPL 4159349
35Wiring Harness (Main)
39Control Panel
41Spacer, End Cap (L.H.)
42End Cap (L.H.)
43Screw, 6-20 x 3/8
44Timer Assembly (115 V., 60 Hz.)
46SCREW
47Light Package
48Insulator, Light
49Clip, Endcap (2)
50Screw, 6-32 X 3/8
50Retaining Bracket
51Lens, Program Light
