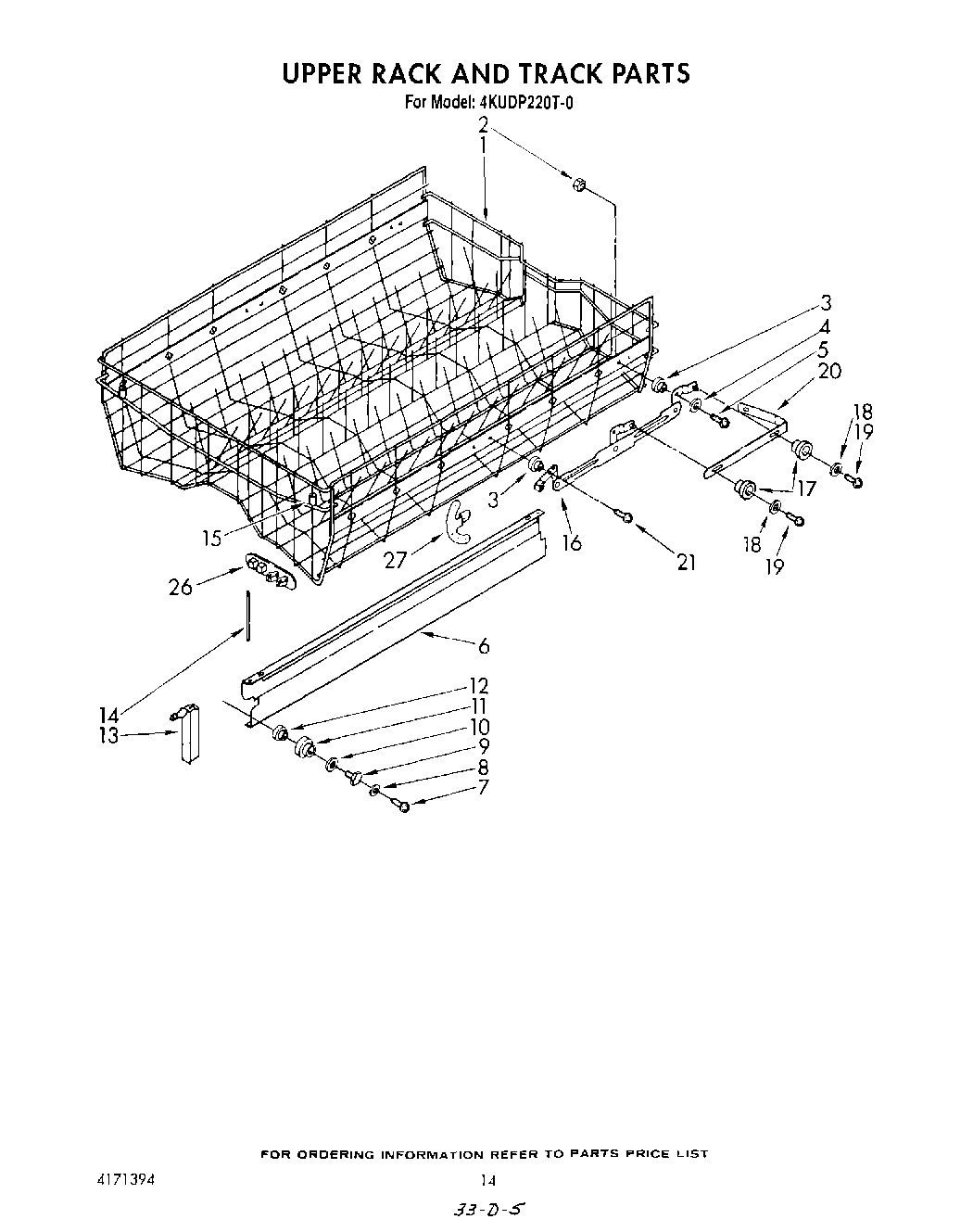

4KUDP220T0 11 – UPPER RACK AND TRACK

Products

PositionProduct
1Upper Rack Assembly (Includes Items 2, 3, 4, 5 & 15)
2Nut, Roller
3Bearing & Spacer, Rack Roller
4Washer
6Track, Rack
7Screw, 10-16 X 3/8
8Gasket, Rack Stud
9Stud, Rack Roller
10Washer, Roller Spacing
11Roller, Rack Track
12Bushing, Rack Roller
13Bumper, Rack Track
14Stud, Bumper Retaining
15Bumper, Upper Rack
16Track, Adjustable (R.H.)
16Track, Adjustable (L.H.)
17Roller, Upper Rack Track
18Washer
19Screw, 8-32 X 1/4 (4)
20Lift, Receiver (R.H.)
20Lift, Receiver (L.H.)
21Screw, 10-16 X 5/8
26Clip, Wash Arm Guard
27Rackstop (R.H.)
27Rackstop (L.H.)
