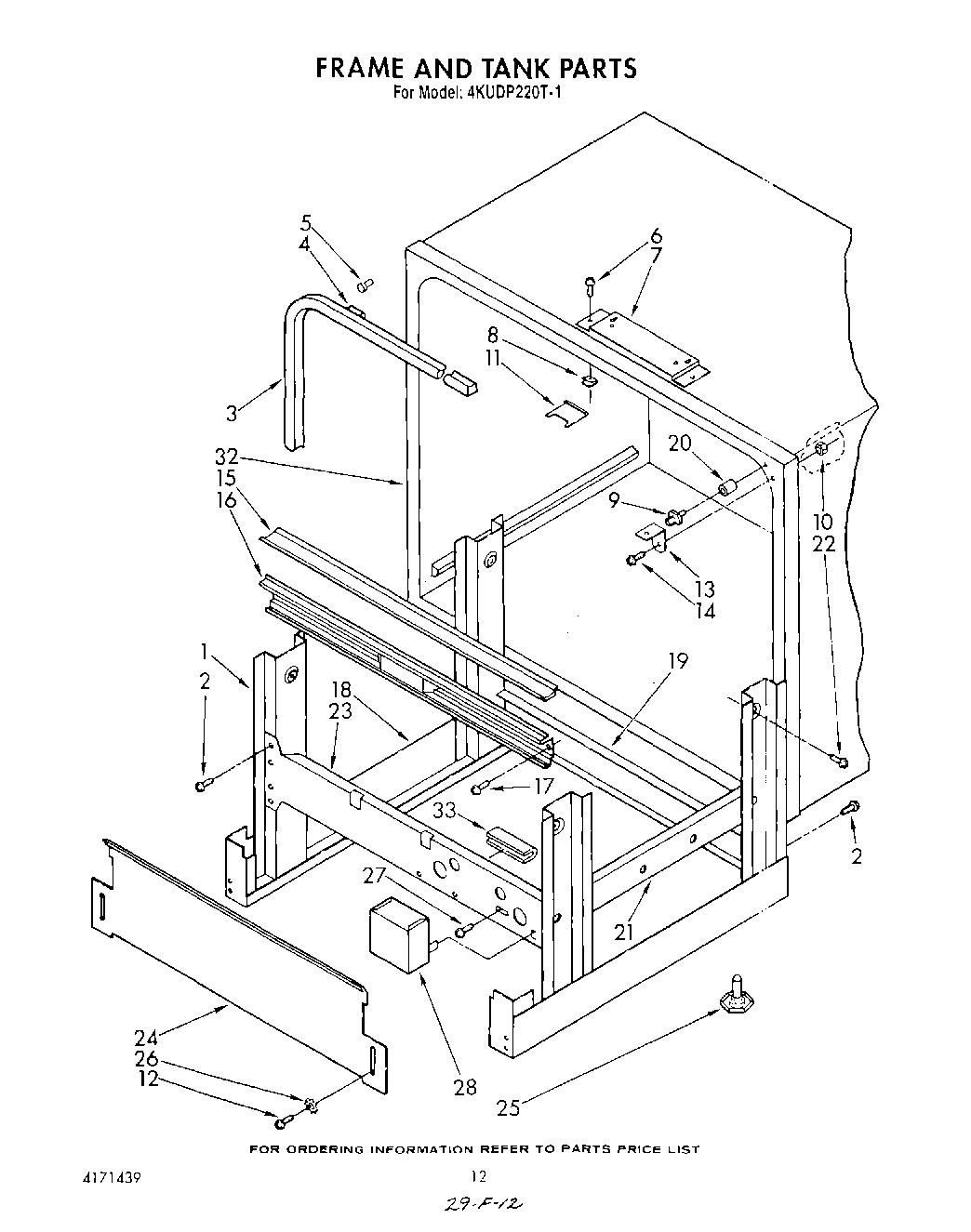

4KUDP220T1 10 – FRAME AND TANKadmin2025-04-26T13:05:22+00:004KUDP220T1 10 – FRAME AND TANK
Products
| Position | Product |
|---|
| 1 | Short Frame Assembly (Includes Items 2, 18, 19, 21, & 23) |
| 2 | Screw, 10-16 X 5/8 |
| 3 | Door Seal Assembly (Includes Item 4) |
| 4 | Clip, Seal |
| 5 | Bumper, Door |
| 6 | WP693304 Whirlpool Screw |
| 7 | Protector, Upper Water Inlet |
| 8 | Speed Nut |
| 9 | Actuator, Interlock Switch |
| 10 | Lock Nut |
| 11 | Keeper, Latch |
| 12 | Screw, 10-16 x 3/8 |
| 13 | WP9741251 Whirlpool Mounting Bracket |
| 14 | Trim, Tank (Screw, 10-16 X 1/2) |
| 15 | Channel, Evaporation |
| 16 | Support, Evaporation Channel |
| 17 | Screw, 10-32 X 1/2 |
| 18 | Frame Assembly (L.H.) |
| 19 | Cross Frame, Rear |
| 20 | Sleeve, Actuator |
| 21 | Frame Assembly (R.H.) |
| 22 | Screw (2) |
| 23 | Cross Frame, Front |
| 24 | Kick Board |
| 25 | Foot, Leveling (4) |
| 26 | Lock Washer No.10 Ext. Shake- proof |
| 27 | Screw |
| 28 | SCREW |
| 28 | Enclosure, Elec. Supply |
| 32 | Tank (Serviced Complete with Frame) |
| 33 | Protector, Edge |
