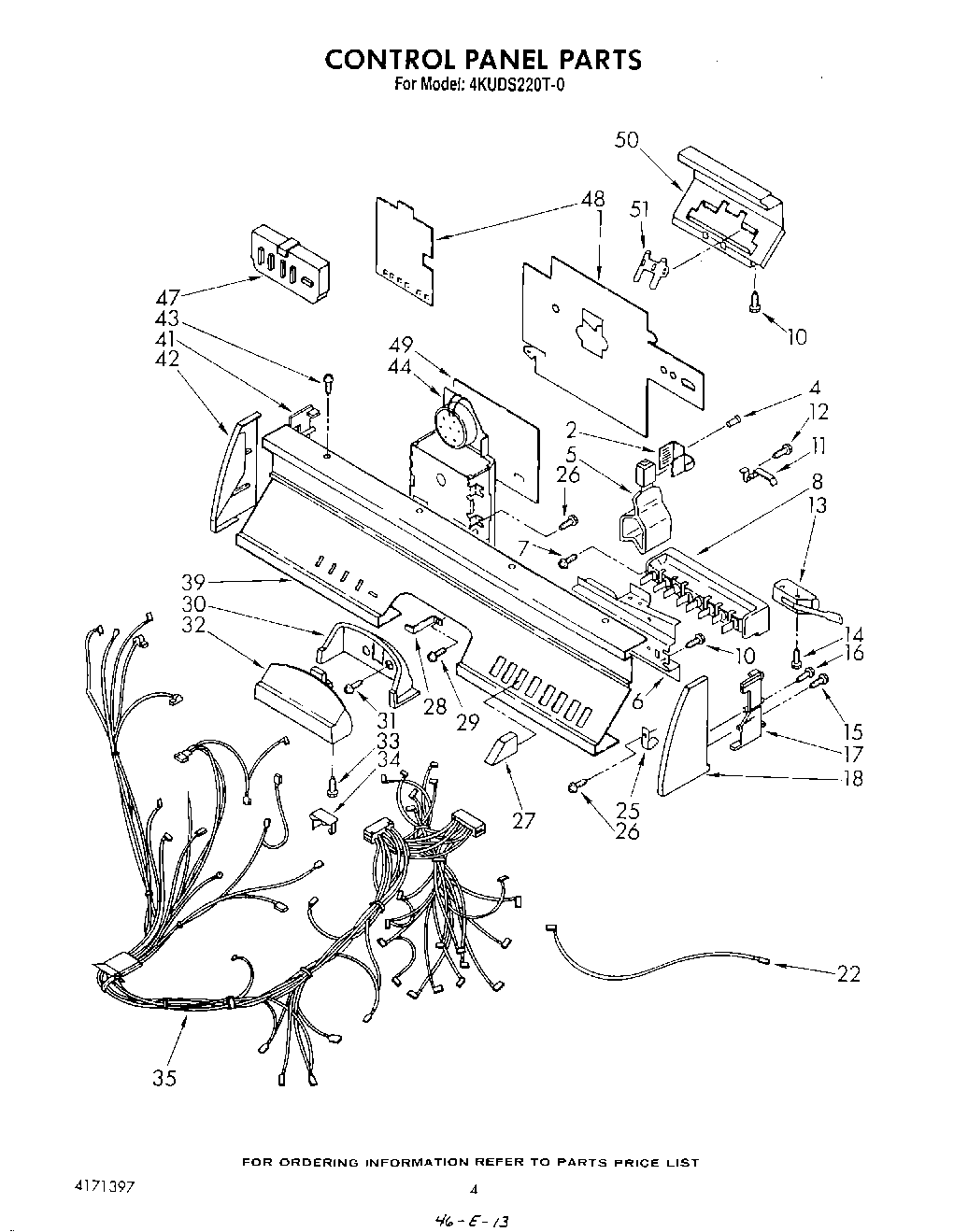

4KUDS220T0 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

4KUDS220T0 04 – CONTROL PANEL , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT9740136
Platinum (Uncut)
WPL 72112
350942 Whirlpool Spray Paint
285006 Whirlpool Spray
675679 Whirlpool Dishwasher White Tip Tines
Insulation Kit (Kit Includes Tub, Kickboard, and Lower Panel Insulation)
W10841140 Whirlpool Dishwasher Adhesive
WPL LIT9740132
WPL LIT4171397
WPL LIT9740129
WPL LIT9740086
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Leveler (Thinner)
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
Golden Harvest (Uncut)
Golden Harvest
1Insulator, Latch
2Anchor, Cancel Spring
4Rivet
5Spring, Switch Cancel
6Bracket, Program Switch
8Switch, Program
11Spring, Door Interlock
12WP693304 Whirlpool Screw
13Switch, Interlock
14Screw (2)
15Screw & Washer Assy
16Screw, 8-32 X 7/8
17Spacer, End Cap (R.H.)
18End Cap (R.H.)
22Lead Assembly (Interlock Switch to Program Switch)
25Clip, Grounding (Front Panel)
26SCREW
27Button, Program Switch (7)
28Bracket, Panel Reinforcement
29Screw, 6-20 x 3/8
30Trim, Handle
31WP912618 Whirlpool Dishwasher Screw
32Handle, Latch
33Screw, 10-32 x 5/8
34Clip, Harness Guide
35WPL 4159349
35Wiring Harness (Main)
39Control Panel (Black)
39Control Panel (White)
39Control Panel (Brown)
41Spacer, End Cap (L.H.)
42End Cap (L.H.)
43Screw, 6-20 x 3/8
44Timer Assembly (115 V., 60 Hz.)
47Light Package
48Insulator, Light
49Barrier, Timer
50Retaining Bracket
50Screw, 6-32 X 3/8
51Lens, Program Light
