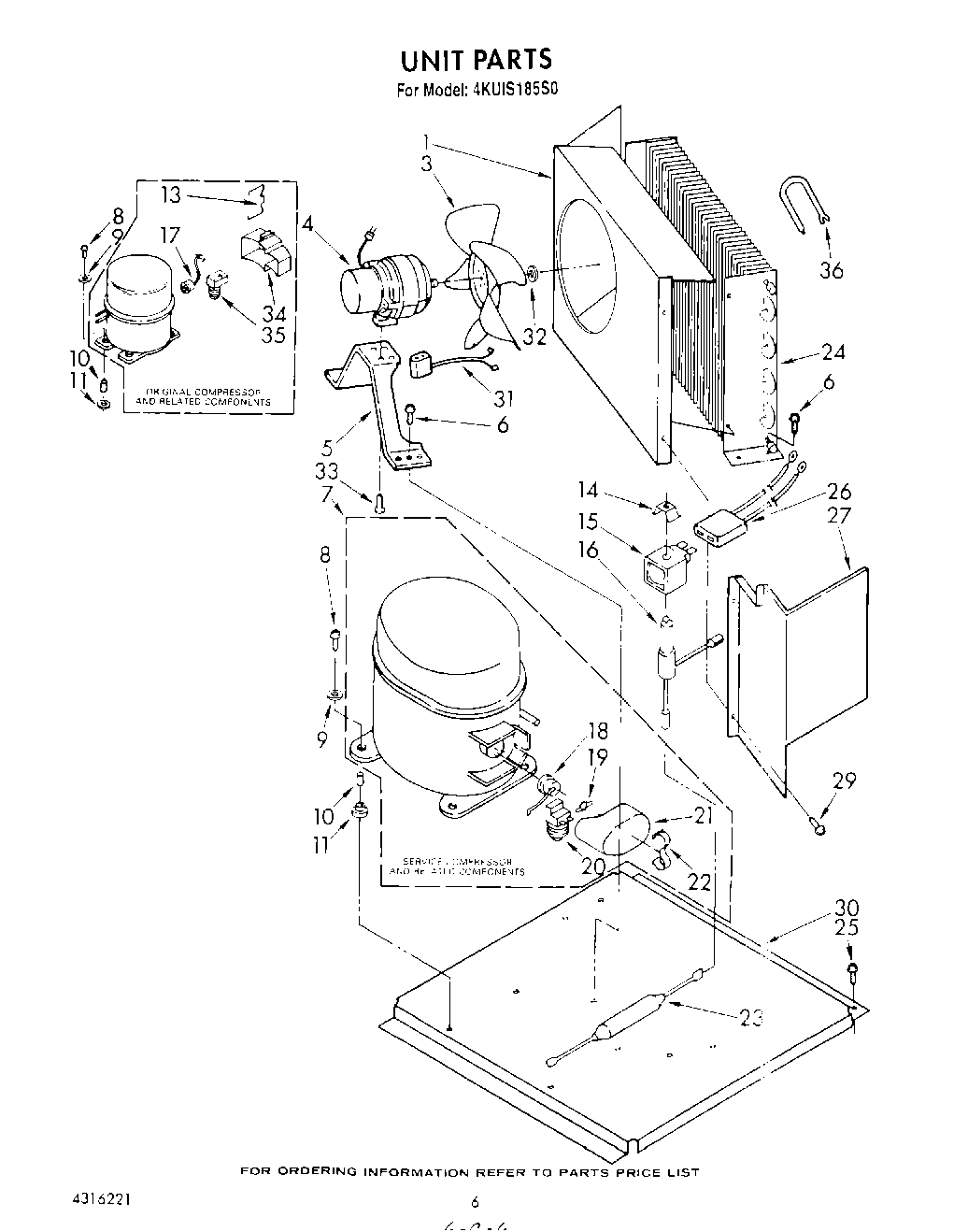

4KUIS185S0 05 – UNIT
Written by
in
4KUIS185S0 05 – UNIT
Products
Position
Product
1
Shroud, Condenser
3
978655 Whirlpool Refrigerator Fan Blade
4
Motor, Fan
5
Bracket, Fan Motor
6
Screw, 1/4-20 x 1/2
7
Compressor, Service (Complete Assembly)
8
Screw, 5/16-18 x 1-1/4 (4)
9
Washer, Flat (4)
10
Sleeve (4)
11
Grommet (4)
13
Strap
14
Retainer, Solenoid Coil
15
Coil, Solenoid
16
Valve, Solenoid Coil
17
Overload
18
Overload
19
Spring, Overload
20
Relay, Start
21
Cover, Terminal
22
Cover, Spring
23
W10843121 Whirlpool Refrigerator Tube
24
Condenser
25
Screw, No.10-32 x 3/8
26
Harness, Wiring (Solenoid Coil)
27
Deflector, Air
29
WP90767 Whirlpool Screw
30
Base, Unit
31
Harness, Wiring (Fan Motor)
32
Nut, Hex 1/4-20
33
Screw, 8-36 x 1/2 (Included With Fan Motor)
34
Cover
35
Relay, Start
36
Accumulator
←
