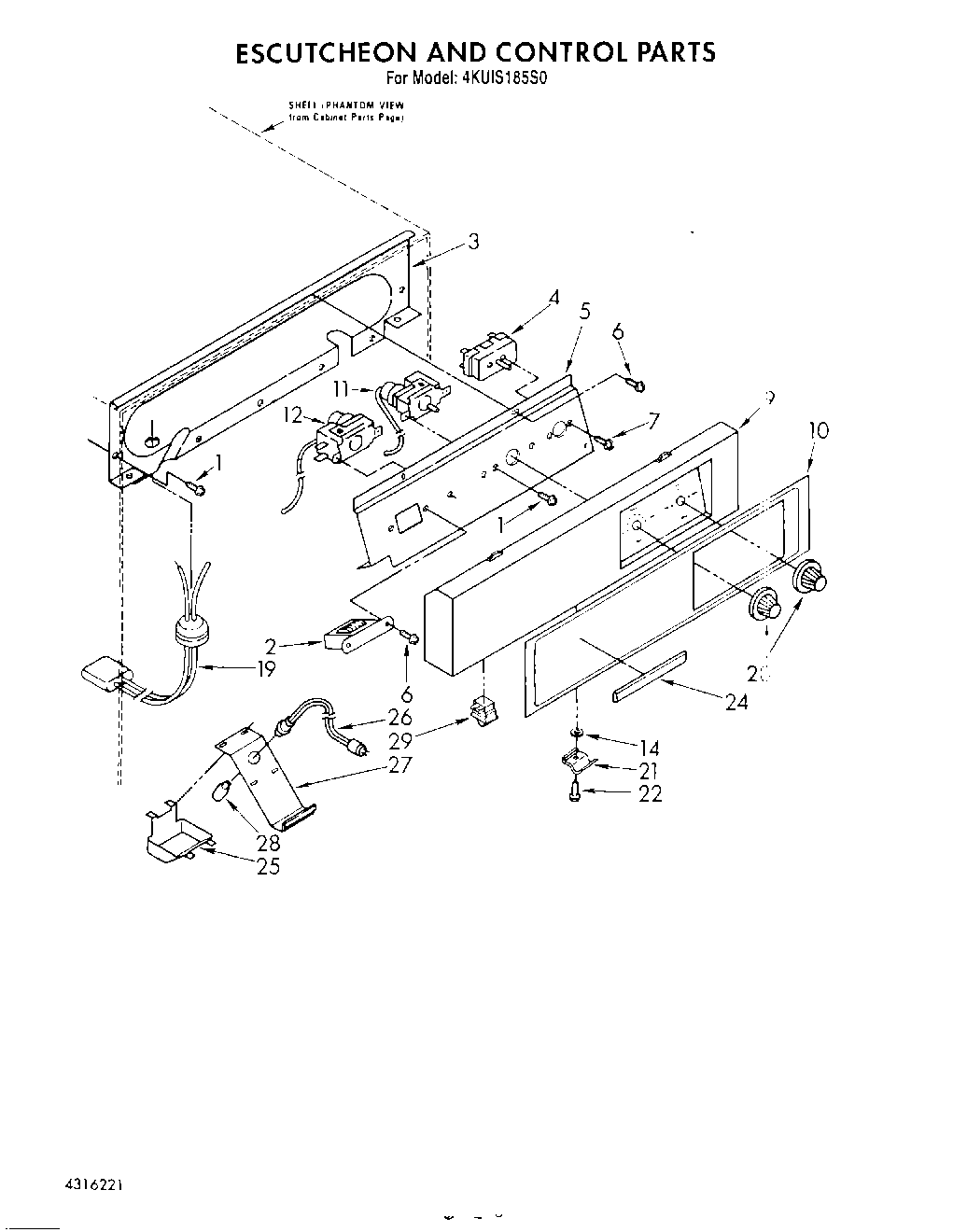

4KUIS185S0 06 – ESCUTCHEON AND CONTROL

Products

Position	Product
1	Screw, 8-32 x 3/8 (2)
2	Transformer
3	Panel, Rear Escutcheon
4	Switch, Rotary
5	Panel, Control
6	WP965173 Whirlpool Dishwasher Screw
7	WP486579 Whirlpool Air Conditioner Screw
9	Escutcheon
10	Decal, Escutcheon
11	Thermostat, Evaporator
12	Thermostat, Ice Bin
14	Washer, Latch
19	Harness, Wiring (Cutter Grid)
20	Knob (2)
21	Latch, Door
22	Screw, 8-32 x 1/2
24	Nameplate
25	Shield, Light
26	Harness, Light
27	Bracket, Light
28	Bulb, Light (Pkg. Of 2)
29	W11384469 Whirlpool Door Switch
