4KV25H0XBK5 02 – COLOR VARIATION PARTS
Written by
in

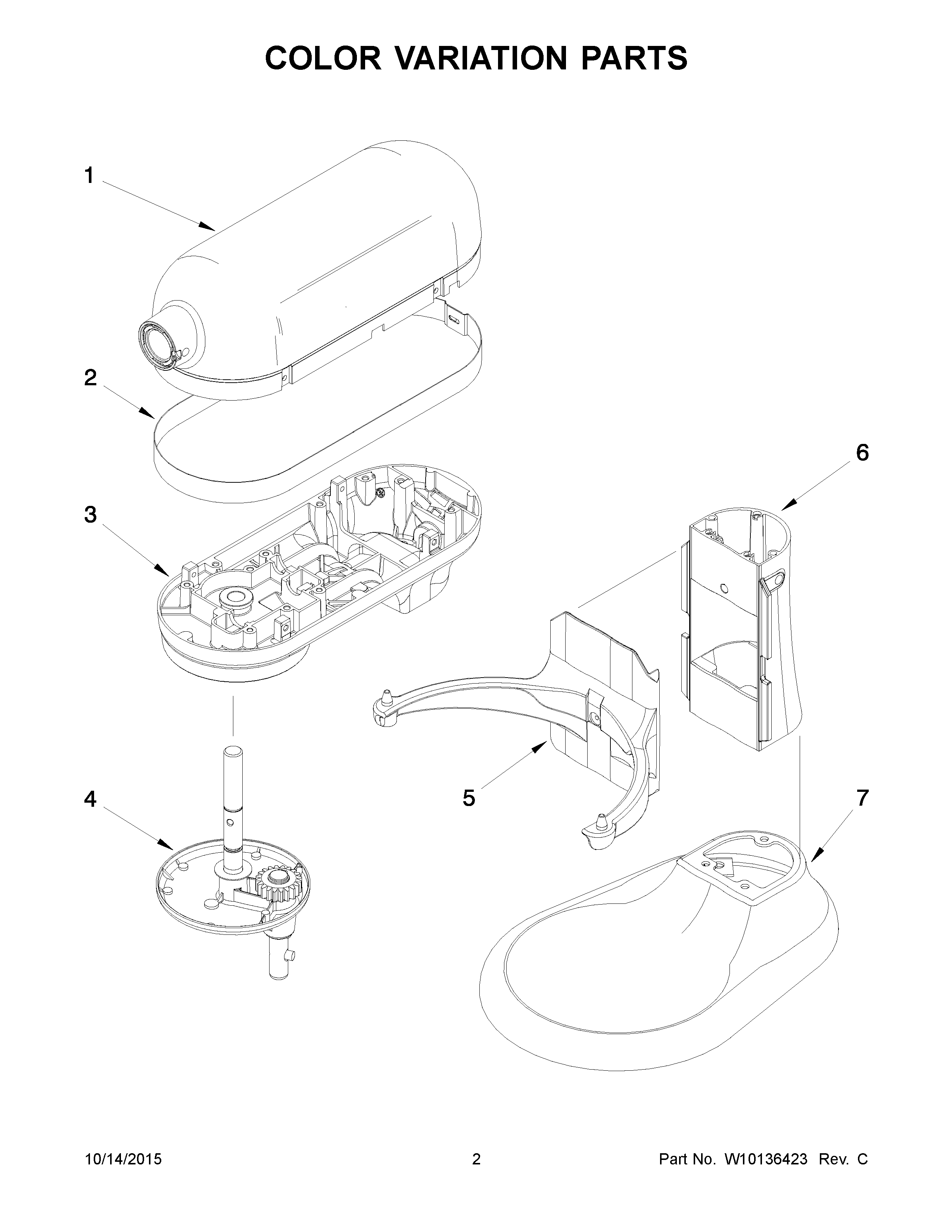

4KV25H0XBK5 02 – COLOR VARIATION PARTS
Products
Position
Product
1E
MOTOR HOUSING (LIQUID GRAPHITE)
1A
9703532 Whirlpool Housing Assembly
1D
Motor Housing (Cobalt Blue)
1B
9705300 Whirlpool Housing Assembly
1C
9703433 Whirlpool Housing
1
9703311 Whirlpool Housing Assembly
2
TRIM BAND (BLACK)
3A
9706301 Whirlpool Gearcase
3E
W10513724 Whirlpool Gearcase Assembly
3D
Lower Gearcase (Cobalt Blue)
3C
Lower Gearcase (Metallic Chrome)
3
WP9706047 Whirlpool Gearcase
3B
9706331 Whirlpool Gearcase
4
WP9708172 Whirlpool Planetary Assembly
4E
WP9707977 Whirlpool Planetary Gear
4C
WP9708175 Whirlpool Planetary Gear
4A
WP9708174 Whirlpool Planetary
4D
Planetary (Cobalt Blue)
4B
WP9708180 Whirlpool Planetary Gear
5A
BOWL SUPPORT-Imperial Black
5E
BOWL SUPPORT AND PINS (LIQUID GRAPHITE)
5D
BOWL SUPPORT-Cobalt blue
5C
9703397 Whirlpool Support
5
9703674 Whirlpool Support
5B
9705360 Whirlpool Support Assembly
6A
COLUMN-Imperial Black
6E
WPL W10513737
6D
9705384 Whirlpool Column
6B
9705324 Whirlpool Column Assembly
6
9703673 Whirlpool Column
6C
9703349 Whirlpool Column
7A
Base And Foot Assembly (Imperial Black)
7
9703690 Whirlpool Base
7C
9703346 Whirlpool Base
7B
9705348 Whirlpool Base
7D
Base And Foot Assembly (C
7E
W10513740 Whirlpool Base Assembly
←
