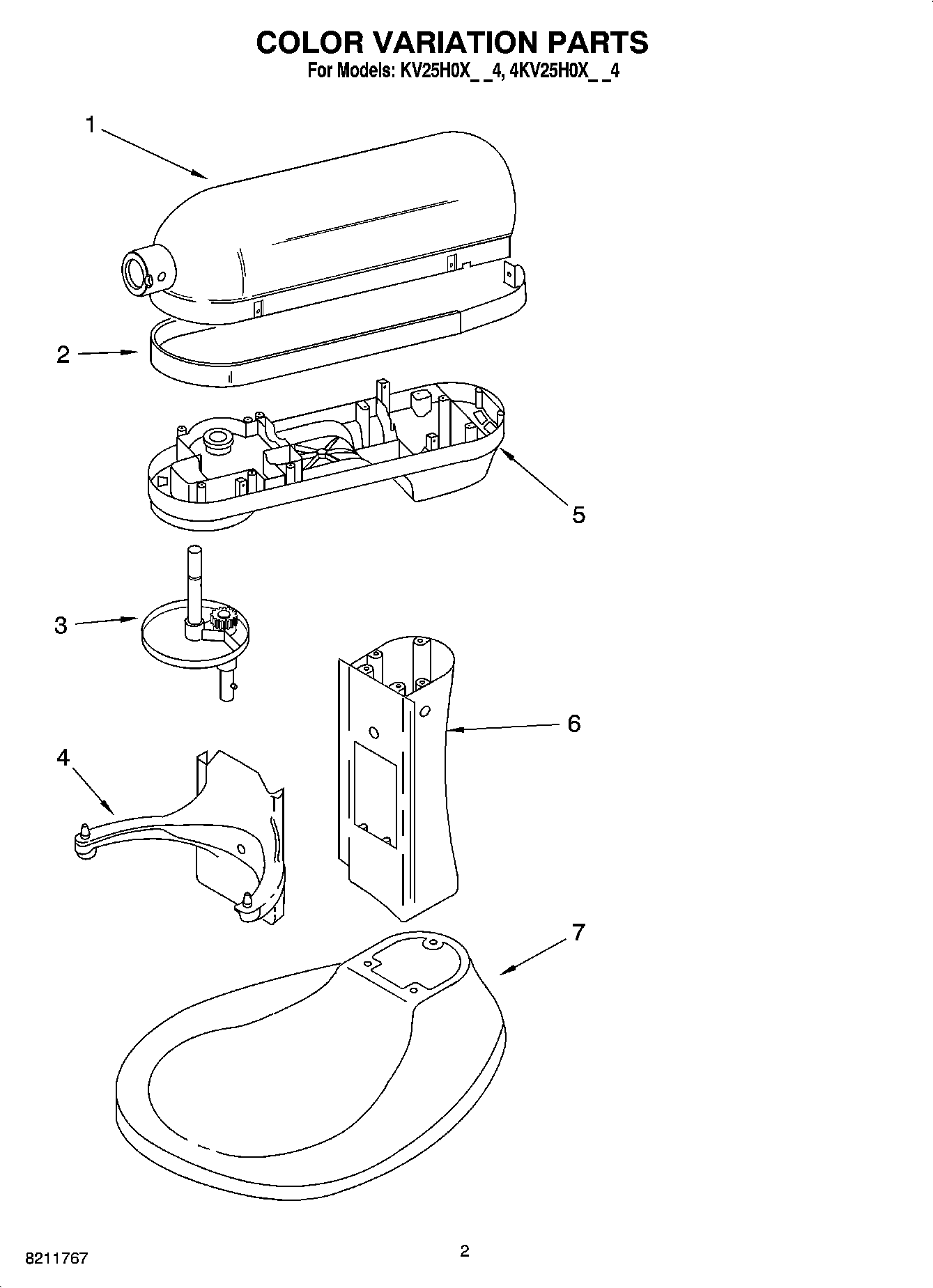

4KV25H0XWH4 01 – COLOR VARIATION PARTS

4KV25H0XWH4 01 – COLOR VARIATION PARTS

Written by

in

4KV25H0XWH4 01 – COLOR VARIATION PARTS

Products

PositionProduct
19703532 Whirlpool Housing Assembly
19703311 Whirlpool Housing Assembly
19705300 Whirlpool Housing Assembly
1Motor Housing (Imperial Grey)
1Motor Housing (Cobalt Blue)
2Trim Band (Black)
2Trim Band (Silver & Gray)
3WP9708174 Whirlpool Planetary
3Planetary (Cobalt Blue)
3WP9708180 Whirlpool Planetary Gear
3WP9708173 Whirlpool Planetary Gear
3WP9708172 Whirlpool Planetary Assembly
4BOWL SUPPORT-Imperial Black
4BOWL SUPPORT-Cobalt blue
49705360 Whirlpool Support Assembly
49703674 Whirlpool Support
49703519 Whirlpool Support
59706301 Whirlpool Gearcase
5WP9706047 Whirlpool Gearcase
5Lower Gearcase (Cobalt Blue)
5Lower Gearcase (Imperial Grey)
59706331 Whirlpool Gearcase
69703673 Whirlpool Column
69705384 Whirlpool Column
6Column (Imperial Grey)
6COLUMN-Imperial Black
69705324 Whirlpool Column Assembly
79703690 Whirlpool Base
79705348 Whirlpool Base
7Base And Foot Assembly (C
7Base And Foot Assembly (Imperial Grey)
7Base And Foot Assembly (Imperial Black)
