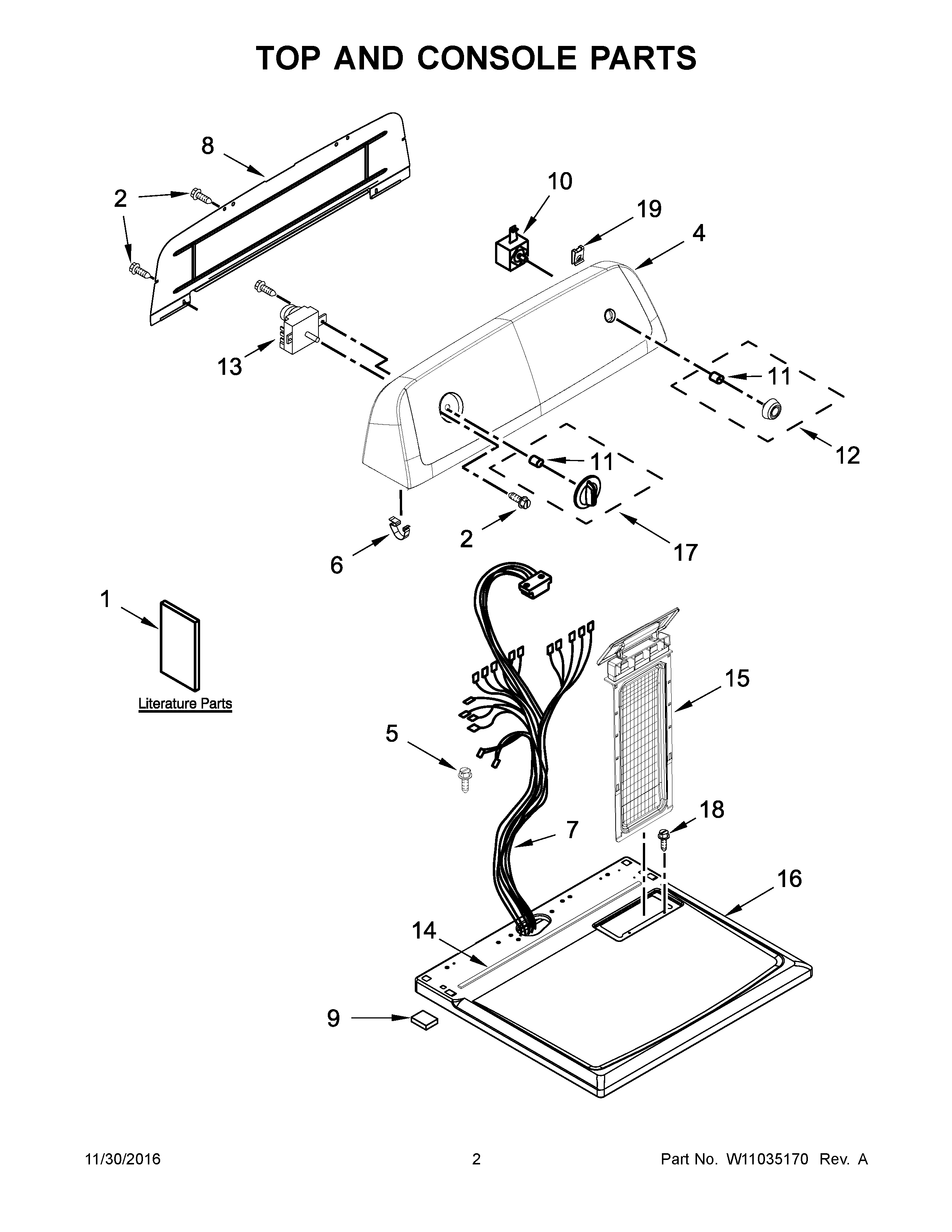

4KWED4605FW0 02 – TOP AND CONSOLE PARTS
Written by
in
4KWED4605FW0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1A
WIRING DIAGRAM
1
USE AND CARE GUIDE
2
WP90767 Whirlpool Screw
3
WP693995 Whirlpool Screw
4
CONSOLE (WHITE)
5
SCREW
6
WP8312709 Whirlpool Endcap Clip
7
MAIN, WIRING HARNESS
8
WPW10416486 Whirlpool Rear Panel
9
3389682 Whirlpool Spacer
10
SWITCH, PUSH TO START
11
WP8536939 Whirlpool Spring Clip
12
WPW10453947 Whirlpool Knob
13
W10857612 Whirlpool Dryer Timer
14
W10316616 Whirlpool Seal
15
WPW10717210 Whirlpool Dryer Lint Screen Filter
16
WP8563663 Whirlpool Top Assembly
17
WPW10711289 Whirlpool Washer Control Knob Dryer
18
W11693756 Whirlpool Screw Assembly
19
W11213336 Whirlpool Nut
←
