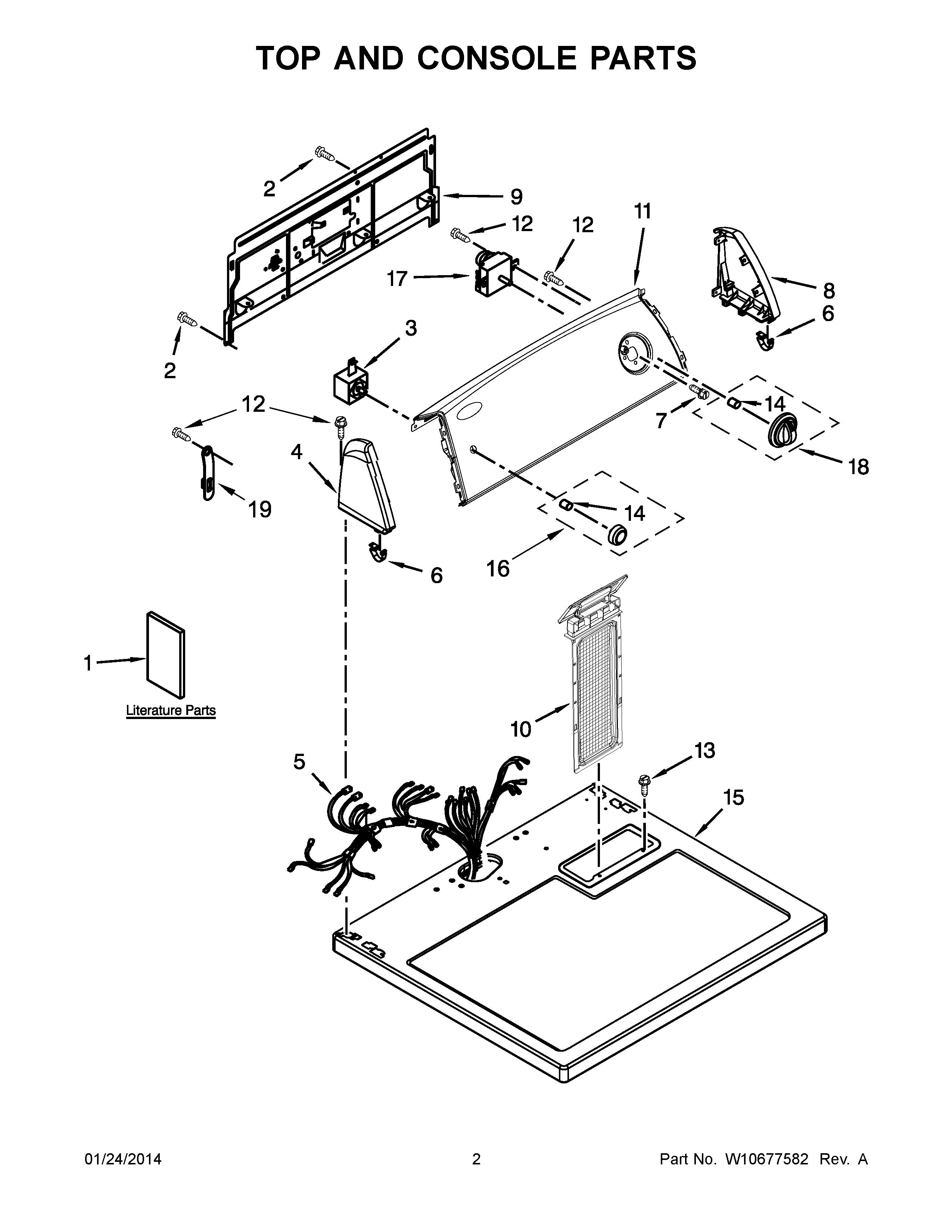

4KWED4750BQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1OWNERS MANUAL
1INSTALLATION INSTRUCTIONS
2WP693995 Whirlpool Screw
3WP3977456 Whirlpool Start Switch
4WP8565957 Whirlpool Endcap Assembly
5HARNESS, WIRING
6WP8312709 Whirlpool Endcap Clip
7WP90767 Whirlpool Screw
8WP8565954 Whirlpool Endcap
9W10121161 Whirlpool Rear Panel
10W10120998 Whirlpool Dryer Lint Screen Filter
11ASSEMBLY, PANEL
13WP3400818 Whirlpool Screw
14WP8536939 Whirlpool Spring Clip
15TOP (WHITE)
16W10034770 Whirlpool Knob Assembly
17WP8299781 Whirlpool Timer
18TIMER KNOB ASSEMBLY
19WP8568314 Whirlpool Strap
