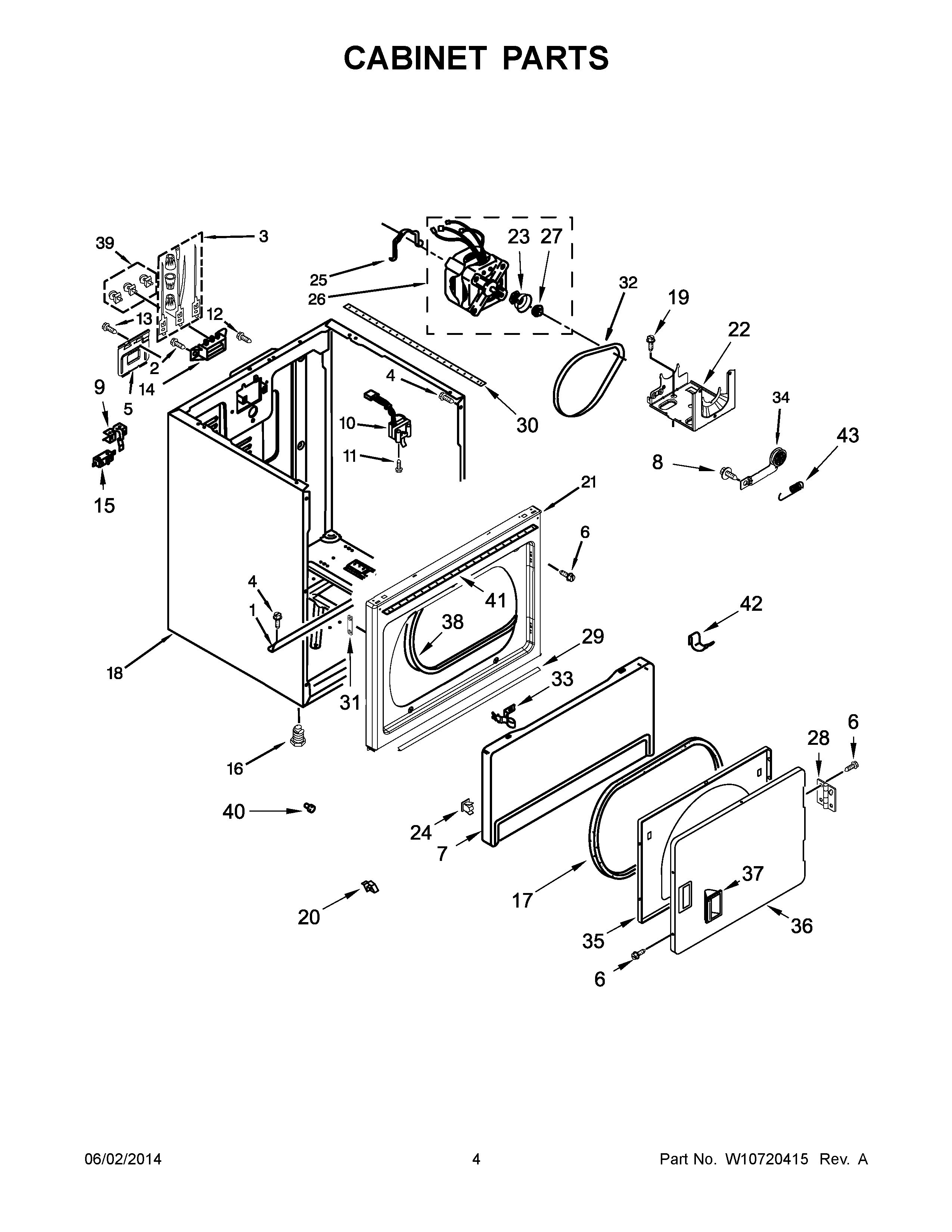

4KWED4750BQ1 03 – CABINET PARTS

Products

Position	Product
1	W10236068 Whirlpool Bracket
2	WP308685 Whirlpool Microwave Screw
3	279318 Whirlpool Terminal
4	SCREW
5	COVER, TERMINAL BLOCK
6	WP488627 Whirlpool Refrigerator Screw
7	WP3406797 Whirlpool Toe Panel
8	WP3389420 Whirlpool Screw
9	W10854043 Whirlpool Lever Assembly
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3390631 Whirlpool Screw
13	WP693995 Whirlpool Screw
14	WP3397659 Whirlpool Terminal Block
15	WP8318457 Whirlpool Switch Plug
16	49621 Whirlpool Leveling Feet
17	WP3390735 Whirlpool Door Seal
18	W11417441 Whirlpool Cabinet
19	3400934 Whirlpool Screw
20	WP3388229 Whirlpool Dryer Spring Clip
21	PANEL, FRONT (WHITE)
22	WP3387118 Whirlpool Base Assembly
23	WP3393657 Whirlpool Belt Retainer
24	279570 Whirlpool Dryer Door Latch Kit
25	WP660658 Whirlpool Clamp
26	W10489550 Whirlpool Drive Motor
27	W10837625 Whirlpool Dryer Motor Pulley
28	WPW10279703 Whirlpool Hinge Assembly
29	SEAL, DEFLECTOR
30	W10336128 Whirlpool Seal
31	W10191265 Whirlpool Plug
32	661570V Whirlpool Dryer Drum Belt
34	W10837240 Whirlpool Dryer Idler Pulley
35	280083 Whirlpool Rear Door
36	W11663440 Whirlpool Door
37	3389522 Whirlpool Handle
38	WP3387242 Whirlpool Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	693152 Whirlpool Bumper
41	Seal, Foam
42	WPW10291934 Whirlpool Clip
43	WPW10446781 Whirlpool Spring
