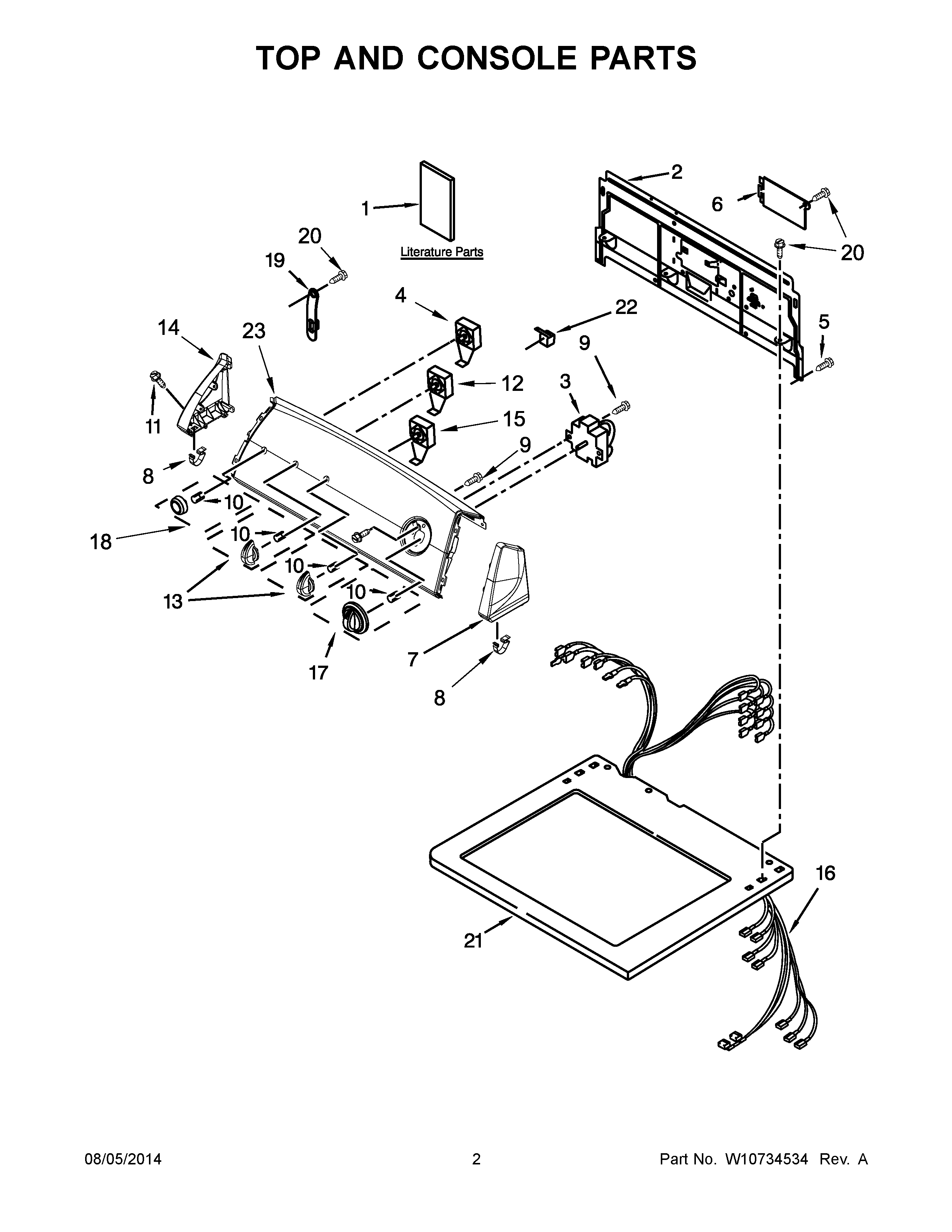

4KWED4900BQ1 02 – TOP AND CONSOLE PARTS

4KWED4900BQ1 02 – TOP AND CONSOLE PARTS

Written by

in

4KWED4900BQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BINSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
1AOWNERS MANUAL
2W10121161 Whirlpool Rear Panel
3WPW10185982 Whirlpool Timer
4WPW10112668 Whirlpool Relay Push to Start
5WP3400818 Whirlpool Screw
6COVER, TERMINAL BLOCK
7WP8565954 Whirlpool Endcap
8WP8312709 Whirlpool Endcap Clip
9WP90767 Whirlpool Screw
10WP8536939 Whirlpool Spring Clip
11WP3390631 Whirlpool Screw
12WP3405156 Whirlpool Switch
13Knob, Control (3)
14WP8565957 Whirlpool Endcap Assembly
15WP3399639 Whirlpool Switch
16HARNESS, MAIN
17TIMER KNOB ASSEMBLY
18WPW10034790 Whirlpool Knob
19WP8568314 Whirlpool Strap
20WP488729 Whirlpool Refrigerator Door Screw
21TOP (WHITE)
223952439 Whirlpool Buzzer
23CONSOLE (WHITE)
23ACONSOLE (METALLIC)
