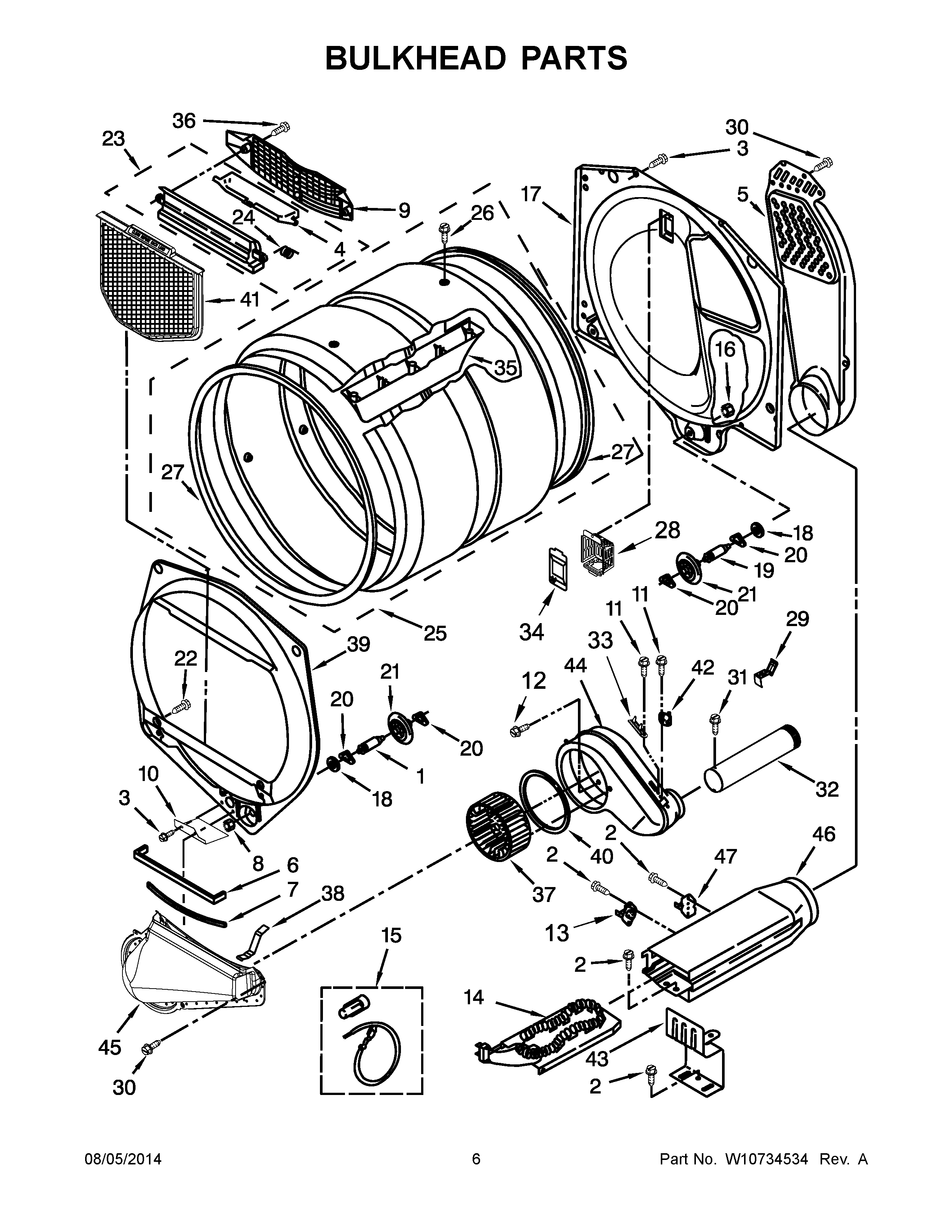

4KWED4900BW1 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
3	WP488729 Whirlpool Refrigerator Door Screw
4	W11222846 Whirlpool Door
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	W11086603 Whirlpool Dryer Link Screen Air Grille
10	W11257251 Whirlpool Shield
12	W11693756 Whirlpool Screw Assembly
13	THRMST-FIX
14	WP3387747 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299301 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP3387230 Whirlpool Screw
23	W11129408 Whirlpool Out Housing
24	WP3394986 Whirlpool Spring
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	8578825 Whirlpool Bracket
29	W11684573 Whirlpool Clip Assembly
30	WP90767 Whirlpool Screw
31	WP489463 Whirlpool Refrigerator Screw
32	279936 Whirlpool Exhaust Pipe
33	WPW10167627 Whirlpool Thermal Cutoff
34	W11226088 Whirlpool Lens Assembly
35	WPW10113136 Whirlpool Drum Baffle
36	WP308685 Whirlpool Microwave Screw
37	WHEEL
38	WP8066208 Whirlpool Clip
39	WP697557 Whirlpool Bulkhead Assembly
40	WP697770 Whirlpool Blower Cover Plate Seal
41	W10120998 Whirlpool Dryer Lint Screen Filter
42	WPW10168174 Whirlpool Thermostat
43	8066099 Whirlpool Bracket
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	W10802681 Whirlpool Box Assembly
47	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
