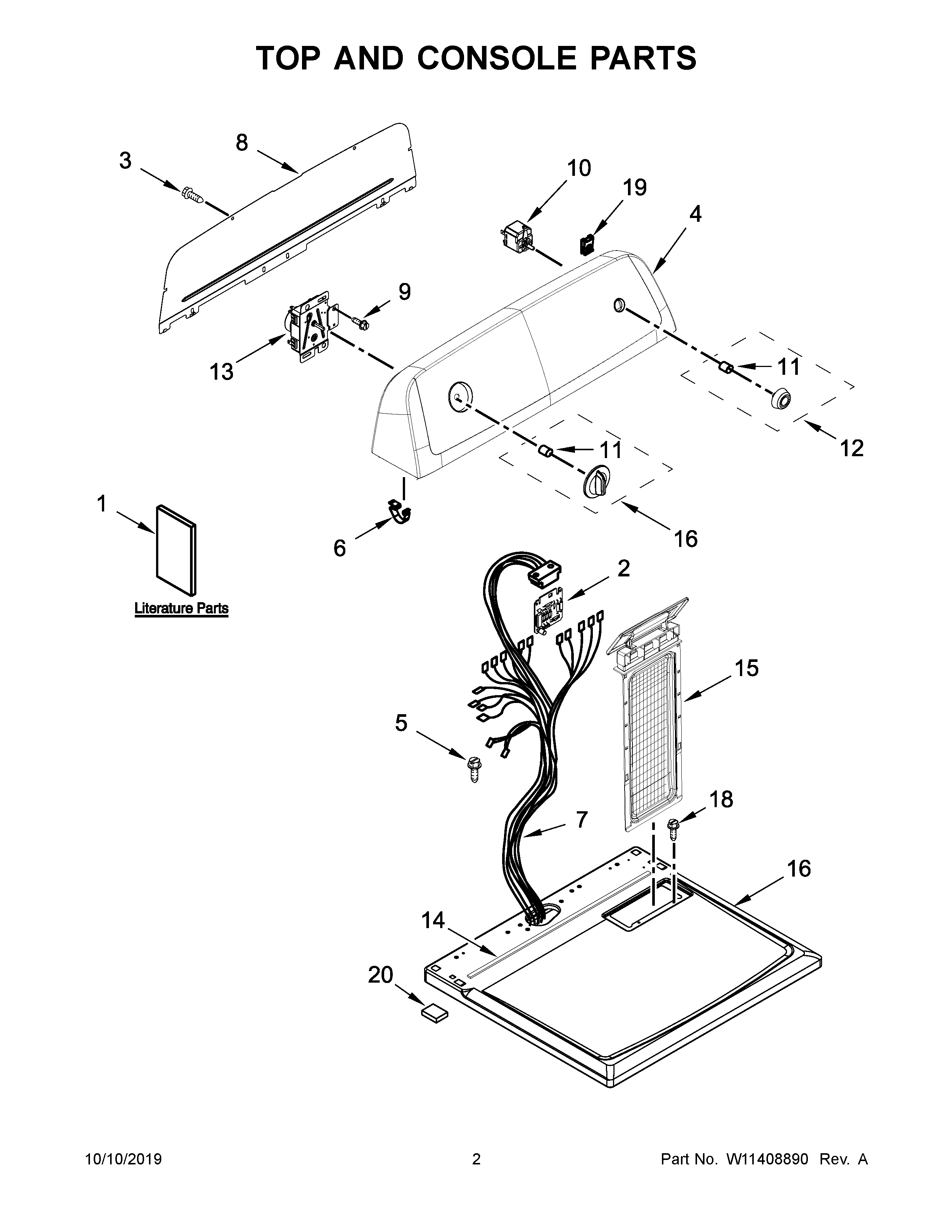

4KWED5600JW0 02 – TOP AND CONSOLE PARTS

4KWED5600JW0 02 – TOP AND CONSOLE PARTS

Written by

in

4KWED5600JW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1OWNERS MANUAL
1AINSTRUCTIONS, INSTALLATION
1BWIRING DIAGRAM
2W11408456-includeCORE Whirlpool W11408456 Electronic Control Board + Core
3WP693995 Whirlpool Screw
4CONSOLE (WHITE)
5WP3390631 Whirlpool Screw
6WP8312709 Whirlpool Endcap Clip
7MAIN, WIRE HARNESS
8WPW10416486 Whirlpool Rear Panel
9WP90767 Whirlpool Screw
10SWITCH, PUSH TO START
11WP8536939 Whirlpool Spring Clip
12WPW10453947 Whirlpool Knob
13W10857612 Whirlpool Dryer Timer
14W10316616 Whirlpool Seal
15WPW10717210 Whirlpool Dryer Lint Screen Filter
16WP8563663 Whirlpool Top Assembly
17WPW10711289 Whirlpool Washer Control Knob Dryer
18W11693756 Whirlpool Screw Assembly
19W11213336 Whirlpool Nut
203389682 Whirlpool Spacer
